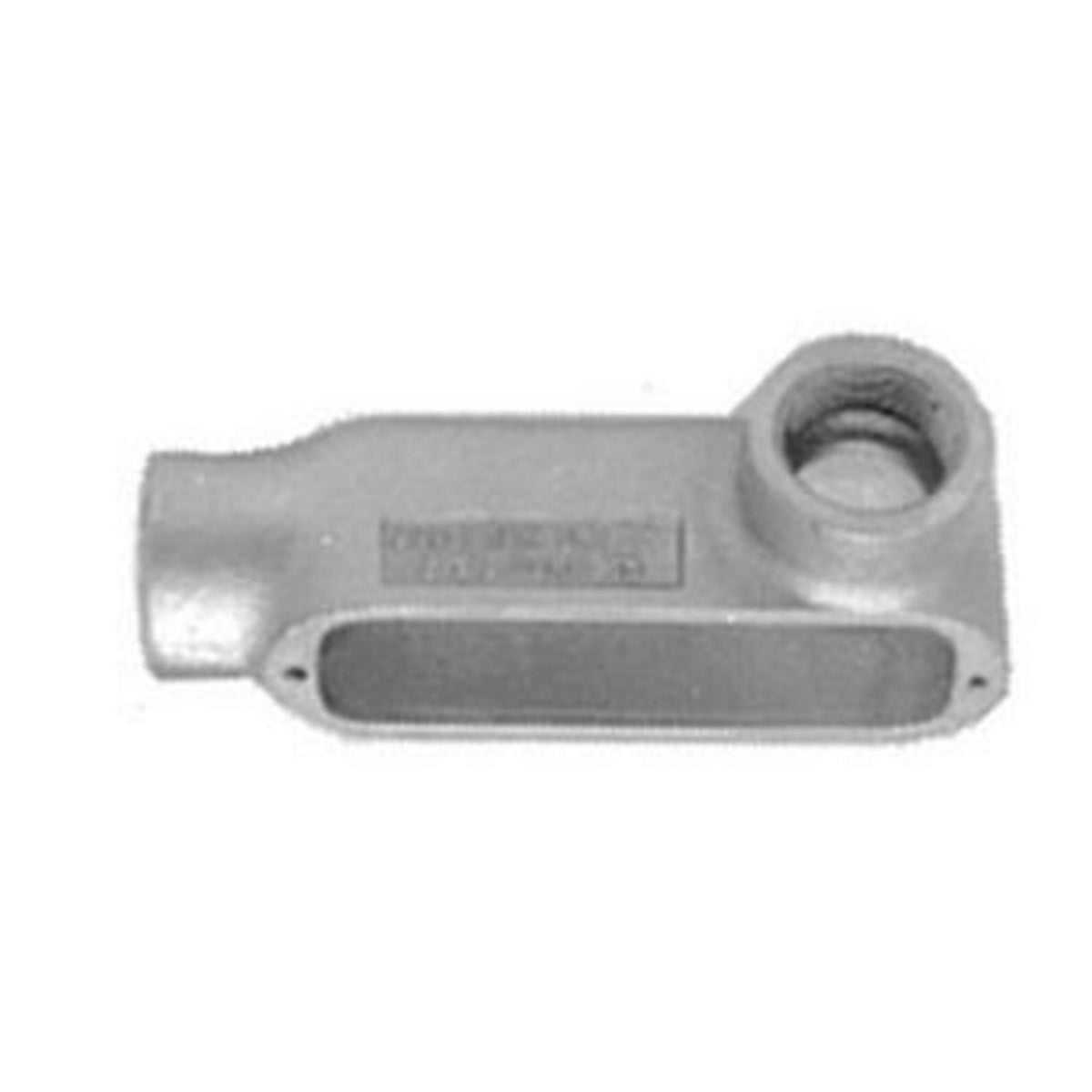

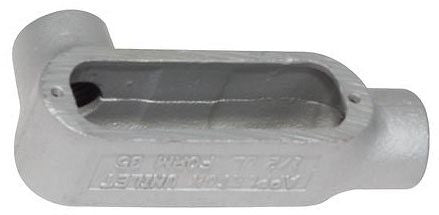

Appleton LR300-M LR-Type Conduit Body 3 Hub Size

Product Description

Appleton LR300-M is a conduit outlet body designed for electrical systems using malleable iron. It features two hubs with a capacity of one hundred seventy-five cubic inches. The surface mounting options and tapered female threads allow for secure connections in conduit installations.

• Form 35 Design for easy installation.
• Constructed of durable malleable iron for longevity.
• Triple-coated finish for high corrosion resistance.

Product Highlights

This conduit outlet body supports rigid steel, rigid aluminum conduit and IMC applications, making it versatile for electrical installations.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Brand: Appleton

Technical Specifications

• Catalog Number: LR300-M
• Material: Malleable Iron
• Finish: Triple Coated
• Capacity: 175 cu-in
• Dimensions: 13.69 in L x 5.75 in W x 6 in H
• Enclosure: NEMA FB-1
• Connection Type: Tapered FNPT
• Hubs: 2
• Country of Origin: Mexico
