Appleton LMF90-50 Apn 90 deg

Product Description

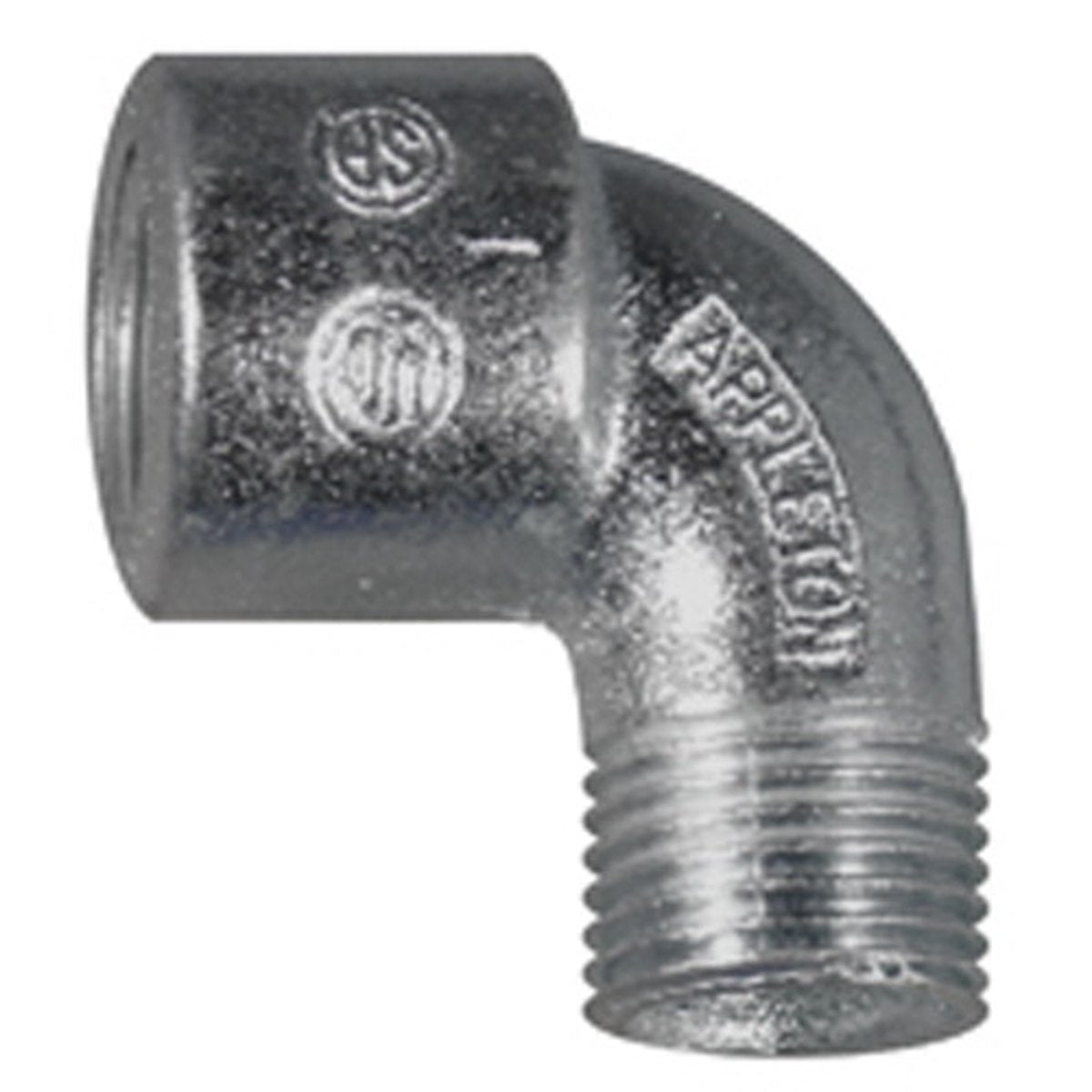

The Appleton LMF90-50 is a short bushed elbow designed to provide a 90-degree change of direction in a conduit run. Constructed from malleable iron with a triple-coated finish, this elbow is suitable for use with threaded rigid/IMC conduit. It features accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity.

• Provide a 90 deg change of direction in a conduit run
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity

Product Highlights

This 90-degree elbow ensures a secure and continuous conduit system with its robust construction and protective bushing.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LMF90-50
• Country of Origin: MX

Technical Specifications

• Angle: 90 deg
• Finish: Triple Coated
• Series: LMF
• Material: Malleable Iron
• Trade Size: 1/2 in
• Country of Origin: MX
• Suitable For Use With: Threaded Rigid/IMC Conduit
• Catalog Number: LMF90-50
• Manufacturer: Appleton Electric
• Brand: Appleton
• Made in USA: No
• Application: For Connecting Threaded Rigid Conduit Or IMC To Box Or Enclosure
• Connection: Female Threaded X Male Threaded
• Flexibility: Rigid And IMC
• Special Features: Provide a 90 DEG change of direction in a conduit run
• Standard: UL 514B, UL File Number E14814, NEMA FB-1
• UPC: 781381480857
• GTIN: 00781381480857
• Item Type: 90 DEG Short Bushed Elbow
• Installation: Threaded Male/Female
• Bend Angle: 90 Deg
• Throat Type: Short Bushed
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Primary brand: Emerson
• Secondary brand: Appleton / O-Z/Gedney
• Main function: Conduit (Fitting)
• Product series / family name: IMC/RMC/EMT cond. hardware
• Sub-range name: Couplings & elbows
• Functions: Short bushed conduit elbow
• Design: male to female
• Shape: 90° angled
• Technical compatibility with: RMC and IMC
• Manufacturer product status: Commercialized
• Equivalent to: LMF9050
• Compliant with standard(s): NEC / CEC compliant
• UL Standard (514B): UL Listed (E-11853; E-14817)
