Appleton LL67SA 2 FM7 BODY TYPE LL-ALUM

Product Description

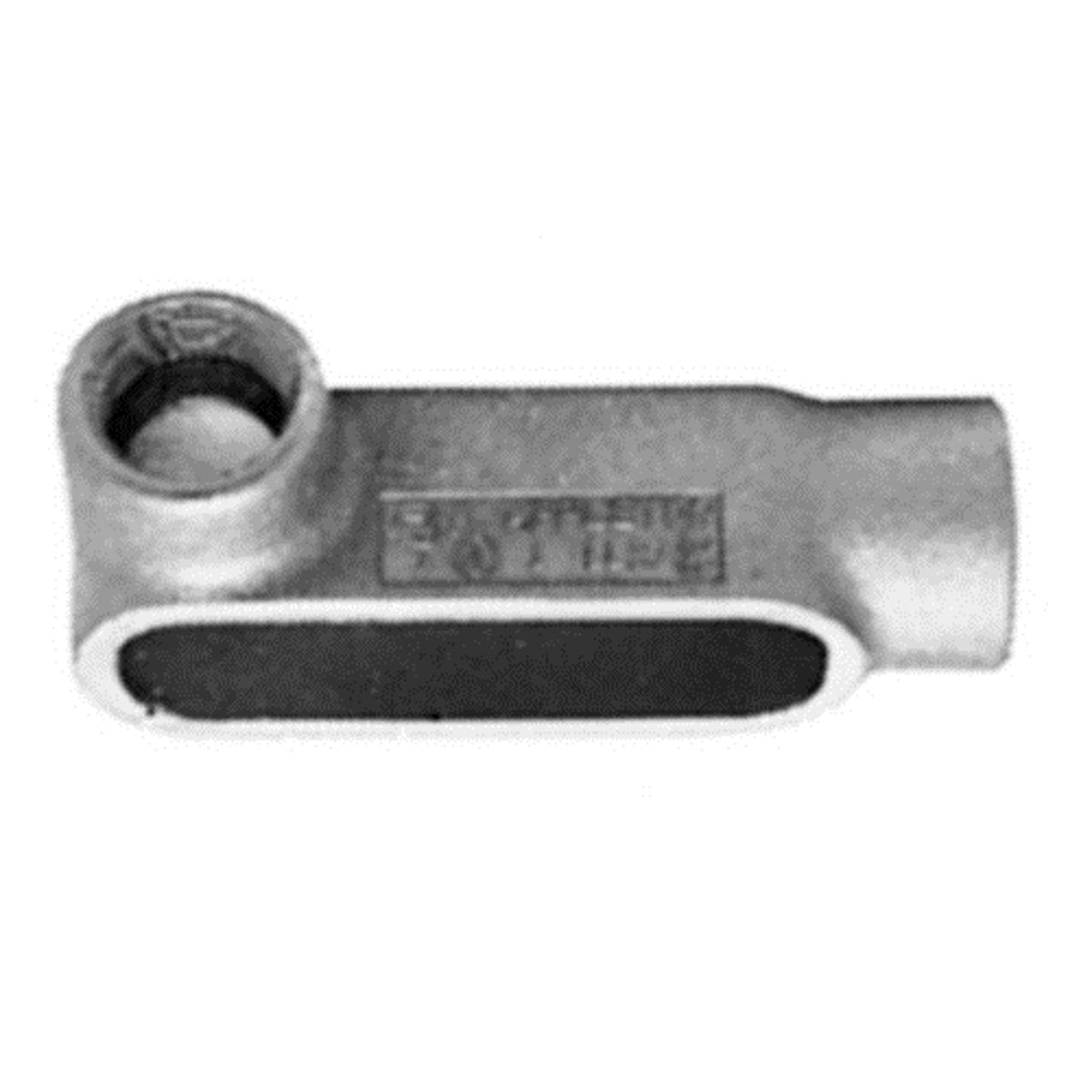

The Appleton LL67SA is a type LL conduit outlet body designed for use in hazardous locations. This conduit body has a hub size of two inches and follows the FM7 and UNILETS standards. It is made from aluminum with an epoxy powder coat finish for durability and resistance to corrosion. This product meets various electrical standards, including UL 514A and UL 514B.

• Hub Size: 2 inches
• Material: Aluminum
• Connection Type: Tapered Female Threaded

Product Highlights

Ideal for use with rigid steel, rigid aluminum conduit, and IMC, this conduit outlet body serves multiple applications in electrical installations.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Sub Brand: UNILETS

Technical Specifications

• Catalog Number: LL67SA
• Length: 8.13 inches
• Width: 4.06 inches
• Material: Aluminum
• Finish: Epoxy Powder Coat
• Connection: Tapered Female Threaded
• Compliance Standards: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, NEMA FB-1
• Application: For use with rigid steel and rigid aluminum conduit and IMC
