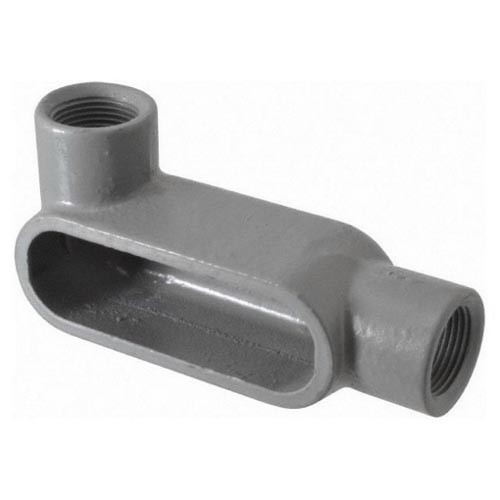

Appleton LL37 Type LL Conduit Outlet Body, Form 7, 11 cu-in Capacity

Product Description

Appleton LL37 Type LL Conduit Outlet Body is designed for rigid and IMC conduit applications. This outlet body has a capacity of eleven cubic inches and is made from Grayloy iron. The finish features aluminum enamel and zinc electroplating for durability.

• Flat back design for improved wiring capacity and surface mountings.
• Interchangeable with other manufacturers' Form 7 conduit bodies.
• Clearly marked internal volume and maximum wire capacity on castings.

Product Highlights

This product serves as a reliable and sturdy junction point for electrical conduits, suitable for surface mounting.

Product Information

Standard Information

• Brand: Appleton
• MPN: LL37

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Capacity: 11 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 6 inches L x 2.75 inches W x 2.88 inches H
• Enclosure: NEMA FB-1/FB-2.10
• Finish: Aluminum Enamel/Zinc Electroplated
• Form: Form 7
• Material: Grayloy Iron
• Mfg Standards/Approvals: RoHS Compliant, UL 514A File No. E18095
• Mounting Type: Surface
• Number of Hubs: 2
• Package Height: 1.0 inch
• Package Length: 8.0 inches
• Package Weight: 1.88 lb
• Package Width: 1.0 inch
• Type: Type LL
• Warranty: Limited
