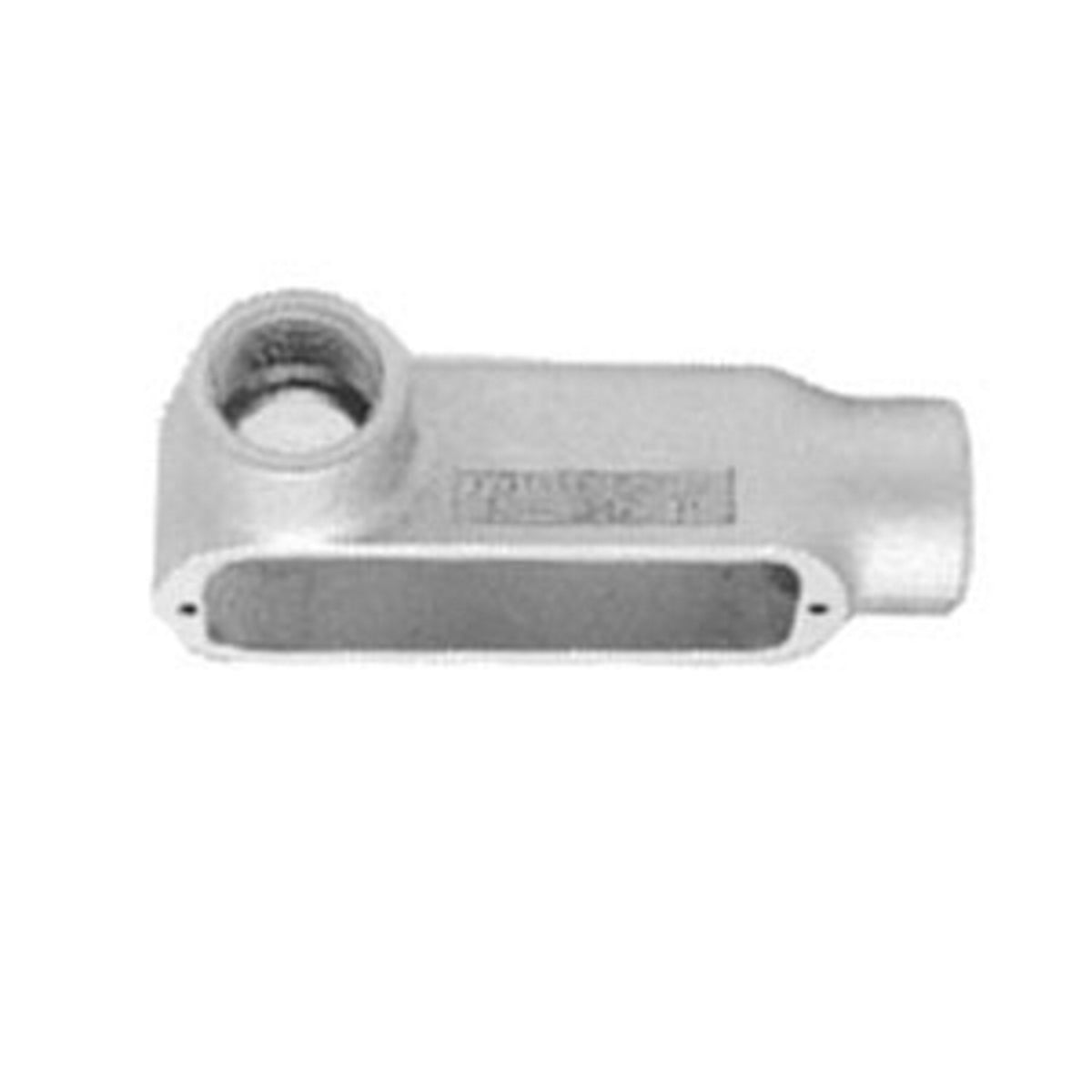

Appleton LL250-M type LL conduit body 2-1/2 in form 35

Brand: APPLETON
SKU: LL250-M
Availability: Out Of Stock
$207.54
$207.54
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Appleton LL250-M Type LL Conduit Body is designed to connect and change the direction of conduit runs. It features a 2-1/2 inch hub, a capacity of 140.5 cu-in, and a Form 35 construction. This conduit body serves as a pulling fitting and allows access to conductors for splicing and maintenance. It is made of malleable iron with a triple-coated finish.

  • Connects and changes direction of conduit runs
  • Allows connections for branch runs and provides access for maintenance
  • Features smooth, rounded integral bushings to protect conductor insulation

Product Highlights

This malleable iron conduit body with a 2-1/2 inch hub is ideal for rigid steel, aluminum, and IMC conduit systems.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: LL250-M
  • Country of Origin: MX
Technical Specifications
Type
Type LL
Application
For Rigid Steel/Aluminum and IMC Conduit
Form
Form 35
Finish
Triple Coated
Capacity
140.5 cu-in
Hub Size
2-1/2 in
Material
Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron Body, Fiber/Neoprene Gasket, Stainless Steel Screw
Enclosure
NEMA FB-1
Mounting Type
Surface
Number of Hubs
2
Connection Type
Tapered FNPT
Sub Brand
Unilet
Used With
Rigid Steel, Rigid Aluminum Conduit, IMC and EMT Conduit
Trade Size
2-1/2 "
TC Connection
Tapered Female Threaded
Catalog Number
LL250-M
Manufacturer
Appleton Electric
Country of Origin
Mexico
Made in USA
No
Connection
Tapered Female Threaded
Standard
UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC
781381480604
GTIN
00781381480604
Item Type
Type LL Conduit Outlet Body
Configuration
LL
Cover Type
Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron
Hub Location
90 Deg
Installation
Threaded
Form Type
Form 35
Approval
UL 514A/514B, CSA C22.2, NEC, CEC
Used On
Rigid Conduit/IMC
Applicable Standard
NEMA FB-1
Product Series
Form 35 Malleable Iron
Family Series
Appleton Conduit Outlet Bodies, Form 35 Malleable Iron Series
Description
Form 35 UNILETS Type LL Conduit Outlet Body, Hub Size: 2-1/2 IN, Form: 35, Length: 13.69 IN, Width: 5-3/4 IN, Material: Malleable Iron, Finish: Triple-Coat Zinc Electroplate, Chromate And Epoxy Powder Coat, Connection: Tapered Female Th
Style
Threaded Iron
Shape
LL
Cover Included
No
Gasket Included
No
Conduit Type
IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
Composition
Malleable Iron
Hazardous Location
Yes
Approvals
CSA, UL
ARRA Compliant
Y
EU RoHS Indicator
C
Brand
Appleton™
