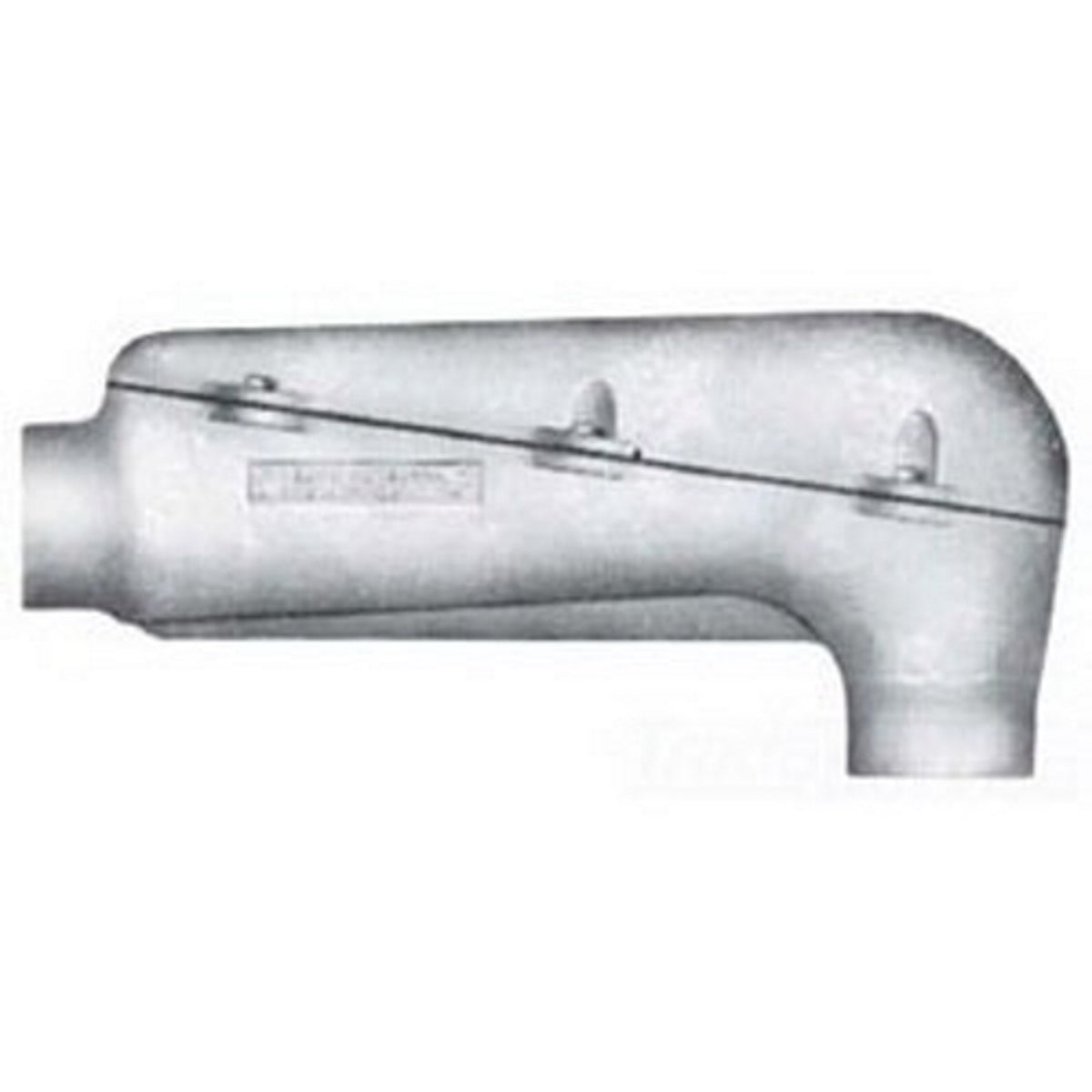

Appleton LBDN350-M Unilet Pulling Fitting 3-1/2 Inch Hub

Product Description

The Appleton LBDN350-M unilet pulling fitting features a three and one-half inch hub. It contains a malleable iron body and neoprene gasket with a triple-coat finish. This product is designed for use with rigid metal conduit and intermediate metal conduit (IMC).

• Hub Size: three and one-half inches
• Material: malleable iron body, neoprene gasket
• Connection: female threaded

Product Highlights

This pulling fitting is ideal for heavy and difficult to bend conductors, suitable for service entrance fittings. Gasketed covers included ensure a secure setup.

Product Information

Standard Information

• MPN: LBDN350-M
• Brand: Appleton Electric

Technical Specifications

• Catalog Number: LBDN350-M
• Manufacturer: Appleton Electric
• Sub Brand: Unilets
• Hub Size: three and one-half inches
• Length: twenty-four point thirty-one inches
• Width: seven inches
• Height: ten and one-quarter inches
• Material: malleable iron body, neoprene gasket
• Finish: triple-coat (zinc electroplate, chromate, epoxy powder coat)
• Application: for use with rigid metal conduit and IMC
• Standard: UL 514B, UL File Number E2527
