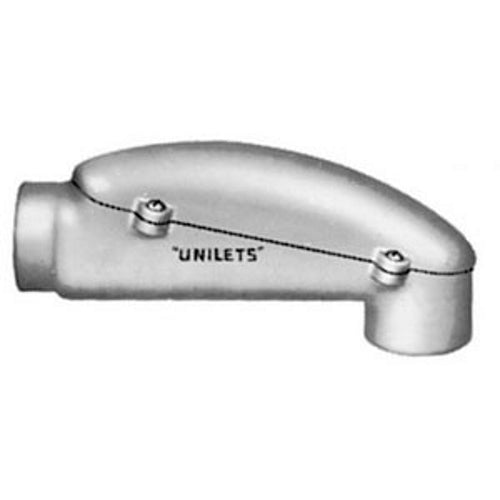

Appleton LBD200-A Unilet Type LBD Pulling Fitting 2 Inch Threaded Copper-Free Aluminum

Product Description

The Appleton LBD200-A is a Unilet Type LBD Pulling Fitting designed to accommodate a hub size of two inches. This product features a threaded connection for efficient installation. Crafted from copper-free aluminum with a composition fiber gasket, it is suitable for various electrical applications.

• Hub Size: 2 inches
• Length: 12.44 inches, Width: 4.13 inches, Height: 5.25 inches
• Connection: Female Threaded

Product Highlights

This pulling fitting is ideal for heavy conductors and can be used to create 90-degree bends in conduit. It is equipped with gasketed covers and serves various applications including use as a service entrance fitting.

Product Information

Standard Information

• Brand: Appleton
• Catalog Number: LBD200-A

Technical Specifications

• Material: Aluminum Body, Composition Fiber Gasket
• Finish: Epoxy Powder Coat
• Application: For Use With Rigid Metal Conduit And IMC
• Special Features: Serves as pulling fittings for heavy conductors; makes 90-degree bends; wiring capacity: 81 cubic inches
• UL Standard: UL 514B, UL File Number E2527
• UPC: 781381478052
