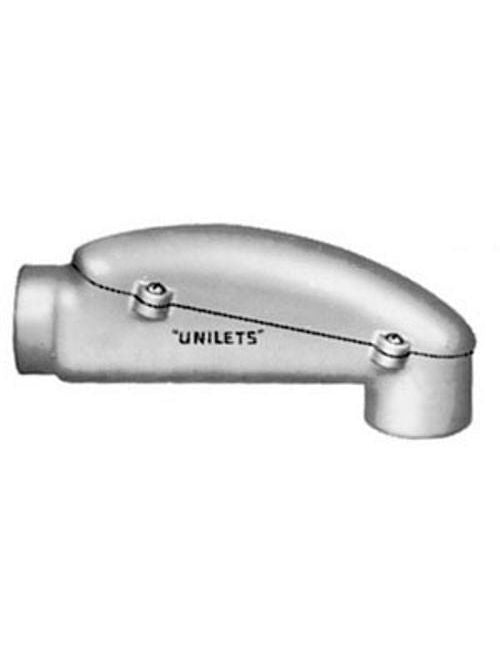

Appleton LBD150-M UNILETS Type LBD Pulling Fitting 1 1/2 inch

Product Description

The Appleton LBD150-M is a Unilets Type LBD Pulling Fitting designed for use in electrical conduit systems. This fitting features a hub size of one and a half inches and is commonly used with rigid and intermediate metal conduit systems. The overall dimensions include a length of twelve and one-quarter inches, a width of four and thirteen hundredths inches, and a height of four and eighty-eight hundredths inches. Constructed with malleable iron and a composition fiber gasket, the LBD150-M is built for durability and performance.

• Hub size: 1 1/2 inches
• Material: Malleable iron body with fiber gasket
• Connection type: Female threaded

Product Highlights

The LBD150-M serves as a pulling fitting suitable for heavy, difficult-to-bend conductors.

Product Information

Standard Information

• Brand: Appleton Electric
• Model: LBD150-M

Technical Specifications

• Length: 12.25 inches
• Width: 4.13 inches
• Height: 4.88 inches
• Hub Size: 1.5 inches
• Material: Malleable iron body with composition fiber gasket
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Connection: Female threaded
• Applications: For use with rigid metal conduit and IMC
• Standard: UL 514B, UL File Number E2527
