Product Description

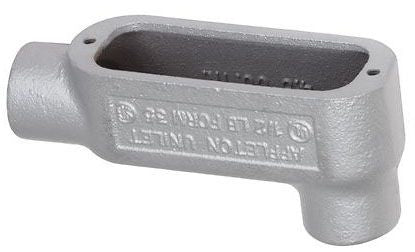

The Appleton LB250-M is a 2-1/2 inch LB-Type conduit body designed for various conduit applications. Made from malleable iron and finished with a triple-coat of zinc electroplate, chromate, and epoxy powder coat, this product features a tapered female thread connection. The hub size is 2-1/2 inches, making it suitable for use with rigid steel, rigid aluminum conduit, and IMC.
- Hub Size: 2-1/2 inches
- Dimensions: 13.69 inches in length and 5.25 inches in height
- Material: Malleable Iron with a triple-coat finish
Product Highlights
The Appleton LB250-M is ideal for creating bends in conduit systems, providing openings for splicing, and connecting or changing the direction of conduit runs. Its design also allows for easy access to conductors for maintenance.
Product Information
Standard Information
-
Catalog Number: LB250-M
-
Manufacturer: Appleton Electric
-
Brand: Appleton
Technical Specifications
-
Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
-
Height: 5-1/4 inches
-
Length: 13.69 inches
-
Connection: Tapered Female Threaded
-
Material: Malleable Iron
-
Form Type: 35
-
Trade Size: 2-1/2 Inch
-
Applications: Designed for use with Rigid Steel, Rigid Aluminum Conduit and IMC
-
UPC: 78138147730
