Appleton LB100DCGSST Type LB multi-hub 1 in 2 hub

Product Description

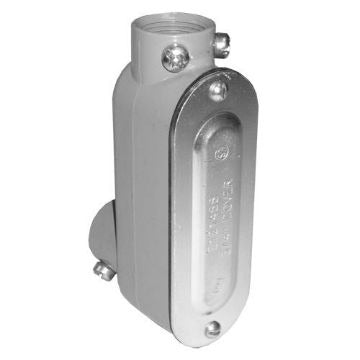

Appleton LB100DCGSST is a Type LB multi-hub conduit outlet body that provides access to conductors for wire pulling, splicing, and maintenance while allowing connection and redirection of conduit runs. The die-cast aluminum housing has an epoxy powder coat finish, two 1 in hubs with threaded/set screw connections and a 32.3 cu-in capacity. Overall dimensions are 6.44 in L x 1.74 in W x 2.98 in H and it is compatible with rigid, IMC, and EMT conduit.

• Die-cast aluminum construction with epoxy powder coat finish and threaded/set screw connection
• Two 1 in hubs, 32.3 cu-in internal capacity, accommodates three 2 AWG conductors
• Compatible with rigid, IMC and EMT conduit; overall dimensions 6.44 in L x 1.74 in W x 2.98 in H; meets CSA, NEMA and UL standards

Product Highlights

Type LB conduit outlet body, die-cast aluminum, two 1 in hubs, 32.3 cu-in capacity, threaded/set screw connections, compatible with rigid/IMC/EMT.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LB100DCGSST
• Country of Origin: India
