Appleton JBX-75L-A Conduit Outlet Box 3/4 inches Hubs

Product Description

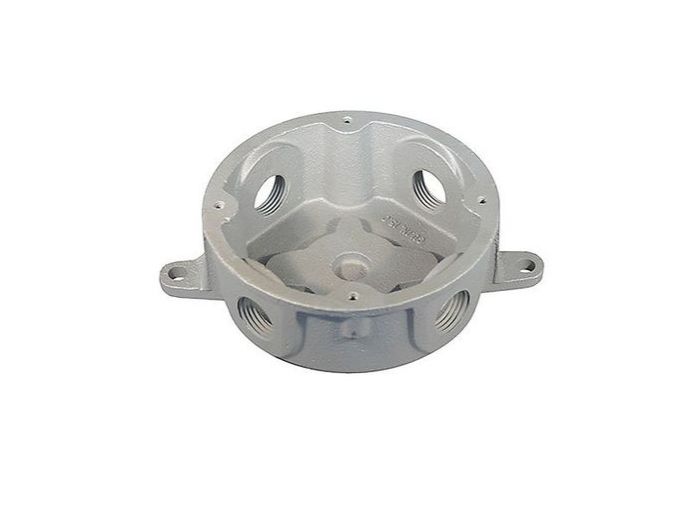

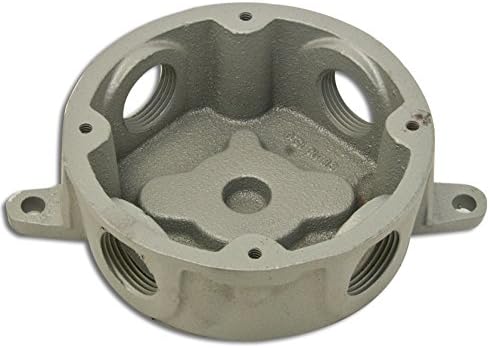

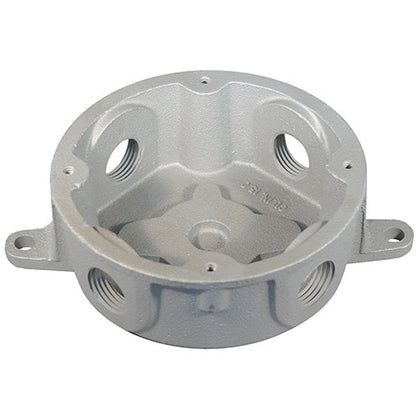

The APPLETON JBX-75L-A Conduit Outlet Box is a type JBLX with (4) 3/4" Hubs, and is made of malleable iron. This conduit outlet box with mounting lugs has a hub size of 3/4", and a depth of 1-5/16". It includes (4) tapped openings and (2) close-up plugs. Used to connect and change direction of conduit runs.

• Make straight connections and 90 deg bends in conduit runs
• Permit access to conductors for maintenance
• Raintight when enclosed and gasketed with hub or blank covers

Product Highlights

The Appleton JB Round Junction Boxes are used to connect and change direction of conduit runs. These conduit outlet boxes serve as pulling fittings and permit access to conductors for splicing and maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: JBX-75L-A
• Country of Origin: Mexico

Technical Specifications

• Brand: Appleton
• Material: Malleable Iron
• Style: JBX
• Manufacturer: Appleton
• UPC: 695526792050
• Diameter: 3/4 in
• Type: Conduit Outlet Box, Outlet Box
• Size: 3/4
• Hub Size: 3/4 in.
• Hub Quantity: 4
• Hub Placement: (4) Sides
• Shape: X
• Plugs: 2
• Cover Type: Not Included
• Mounting Options: Lugs
• Finish: Epoxy Powder Coated
• Depth Inside: 1-5/16 in.
• Mounting Type: Lug
• Capacity: 15.5 cu-in
• Catalog ID: APPJBX-75L
• Suitable For Use With: Threaded Rigid Metal and IMC Conduit
• Application: To serve as pulling fittings and provide openings for splicing
• Standard & Approvals: UL 514A, UL E2527, NEMA FB-1, RoHs Compliant
• MPN: JBX-75L-A
• Product Series: JB
• Family Series: Appleton Electrical Boxes, JB Series
• Description: UNILETS Outlet Box, Number Of Outlet: 4, Material: Copperfree 4/10 Of 1 PCT Maximum Aluminum, Size: 3/4 IN, Cable Entry: 4 3/4 IN Tapped Openings, Knockouts: Yes, Height: 4-1/2 IN, Width: 6.13 IN, Depth: 1-5/16 IN, Finish: Epoxy Powder Coat, Standard: UL
• ConnectionType: Threaded
• Number of Hubs: 4
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Malleable Iron
• Cover Included: No
• Gasket Included: No
• Approvals: UL
