Appleton IBC-350L-25AC Bushing 3-1/2 IN

Product Description

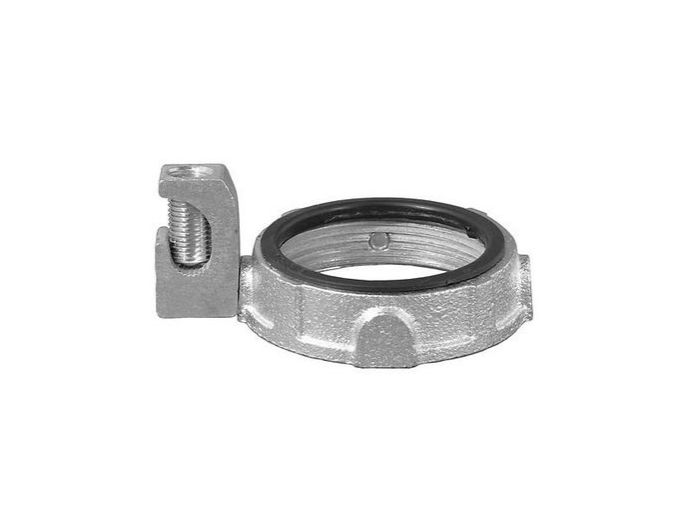

The APPLETON IBC-350L-25AC bushing is an insulated grounding bushing with an aluminum lay-in-lug. It is size 3-1/2 IN and made of malleable iron with a zinc electroplated body and tin-plated lug. It features a threaded connection and a temperature rating of 150 DEG C. It is UL listed for use with copper or aluminum grounding conductors.

• Aluminum Lay-In-Lug for copper or aluminum conductors
• Insulating liner material is self-extinguishing
• UL listed for use with copper or aluminum grounding conductors

Product Highlights

The bushing is designed to fasten and ground threadless rigid metal conduit to an enclosure. It can be used with a locknut to terminate conduit at an enclosure, and the lug connects a bonding jumper to a neutral bus bar.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: IBC-350L-25AC

Technical Specifications

• Manufacturer Part Number: IBC-350L-25AC
• Manufacturer: Appleton
• Product Series: GIB-LS
• Family Series: Appleton Bushings, GIB-LS Series
• Description: Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 3-1/2 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 1 IN Height X 4.5 IN Diameter, Cable Size: 6
• Grounding: Yes
• Hazardous Location: No
• Temperature Rating: 150 °C
• Insulation Material: Plastic
• Mounting: Set Screw
• Composition: Iron
• Trade Size: 3.5 "
• Conduit Fitting: RMC (Rigid Metallic Conduit), IMC (Intermediate Metallic Conduit)
• Approvals: CSA, UL
• Comments: Listed for Ordinary Locations
• Net Weight: 0 lbs
• Gross Weight: 0.74 lbs
