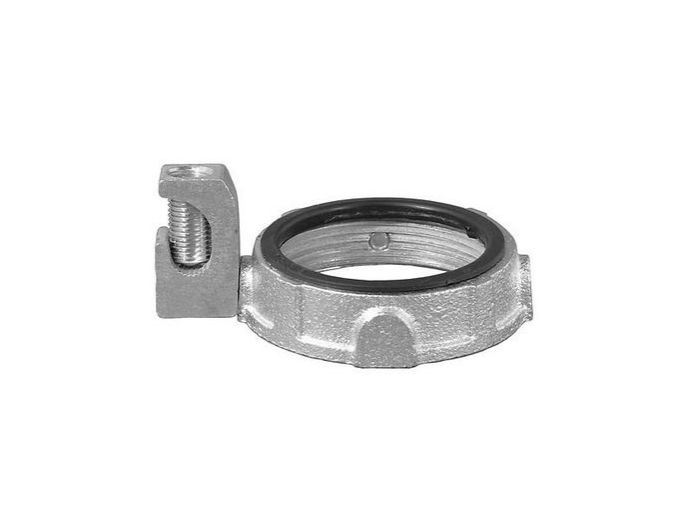

Appleton IBC-200LS-4AC Bushings

Product Description

The APPLETON IBC-200LS-4AC bushings fasten and ground threadless rigid metal conduit to an enclosure. These insulated grounding bushings feature an aluminum lay-in lug for copper or aluminum conductors. The plastic liner resists corrosion, chemicals, and temperature extremes. GIB-LS Series is provided with a set screw allowing fitting to lock bushing in any desired position.

• 2 IN GNDG BSHG SSCR
• GIB-LS Series Information
• UL listed for use with copper or aluminum grounding conductors

Product Highlights

Insulated bushings can be used with a locknut to terminate conduit at an enclosure. The lug is used to connect a bonding jumper to a neutral bus bar.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: IBC-200LS-4AC

Technical Specifications

• Manufacturer Part Number: GIB-200LS-4AC
• Manufacturer: Appleton
• Product Series: GIB-LS
• Family Series: Appleton Bushings, GIB-LS Series
• Description: Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 2 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Temperature Rating: 150 DEG C, Dimensions: 3/4 IN Height X 2.81 IN Diameter, Cable Size: 14 AWG Solid - 4 AWG
• Grounding: Yes
• Hazardous Location: No
• Temperature Rating: 150 °C
• Insulation Material: Plastic
• Mounting: Set Screw
• Composition: Iron
• Trade Size: 2 "
• Conduit Fitting: RMC (Rigid Metallic Conduit), IMC (Intermediate Metallic Conduit)
• Approvals: CSA, UL
• Comments: Listed for Ordinary Locations
• Net Weight: 0 lbs
• Gross Weight: 0.28 lbs
