Product Description

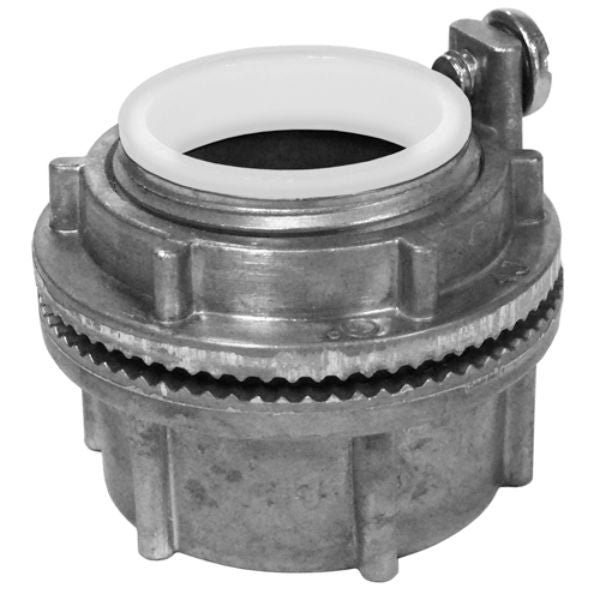

The Appleton HUBG300DN is a grounding watertight conduit hub designed for use with IMC or rigid conduit. Made from die-cast zinc, it offers durability and resistance to corrosion. This product features an insulated throat rated for two hundred twenty-one degrees Fahrenheit to prevent wire abrasion.
- Rugged metallic construction offers mechanical protection.
- Integral O-ring provides water resistance.
- Unique profile allows for easy installation.
Product Highlights
This conduit hub connects rigid or IMC conduit to a threadless opening in an enclosure. It includes smooth, accurately tapped threads to facilitate installation.
Product Information
Standard Information
-
Brand: Appleton
-
MPN: HUBG300DN
Technical Specifications
-
Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure.
-
Country of Origin: IN
-
Dimensions: 4.38 inches OD x 2.81 inches L
-
Material: Die Cast Zinc
-
Manufacturing Standards: CSA Standard C22.2 No. 18.3, UL Listed for Class I, Div 2
-
Package Height: 2.3 inches
-
Package Length: 10.6 inches
-
Package Weight: 2.225 lb
-
Package Width: 6.0 inches
-
Series: HUBG
-
Size: 3 inches
-
Suitable For Use With: IMC/Rigid Conduit
-
Type: Grounding
