Product Description

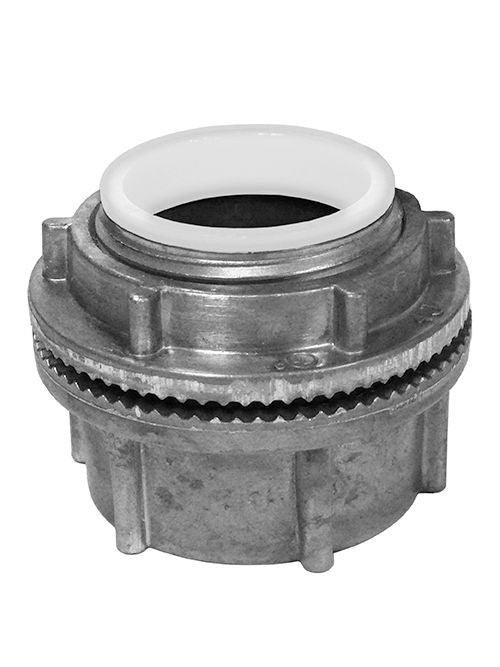

The Appleton HUB400A is a four-inch aluminum watertight hub made for rigid metal conduit or IMC. This product is known for its durability and reliability in various weather conditions.
- Aluminum die-cast construction
- Insulated and gasketed for watertight performance
- Corrosion resistant design
Product Highlights
The Appleton HUB400A provides an effective connection for various conduits while ensuring protection against environmental elements. It features smooth, accurately tapped threads for easy installation.
Product Information
Standard Information
-
Brand: Appleton Electric
-
Catalog Number: HUB400A
Technical Specifications
-
Type: Watertight hubs, insulated and gasketed
-
Material: Die-cast copper-free aluminum (body and nut), Buna-N (O-ring), polypropylene (insulator)
-
Trade Size: Four inches
-
Diameter: Five point four five inches
-
Length: Two point five inches
-
Temperature Rating: 105 degrees Celsius
-
Standards: UL Listed, CSA Certified, NEMA Types 2, 3, 4
-
Application: Used to connect rigid metal conduit or IMC to an opening in an enclosure
