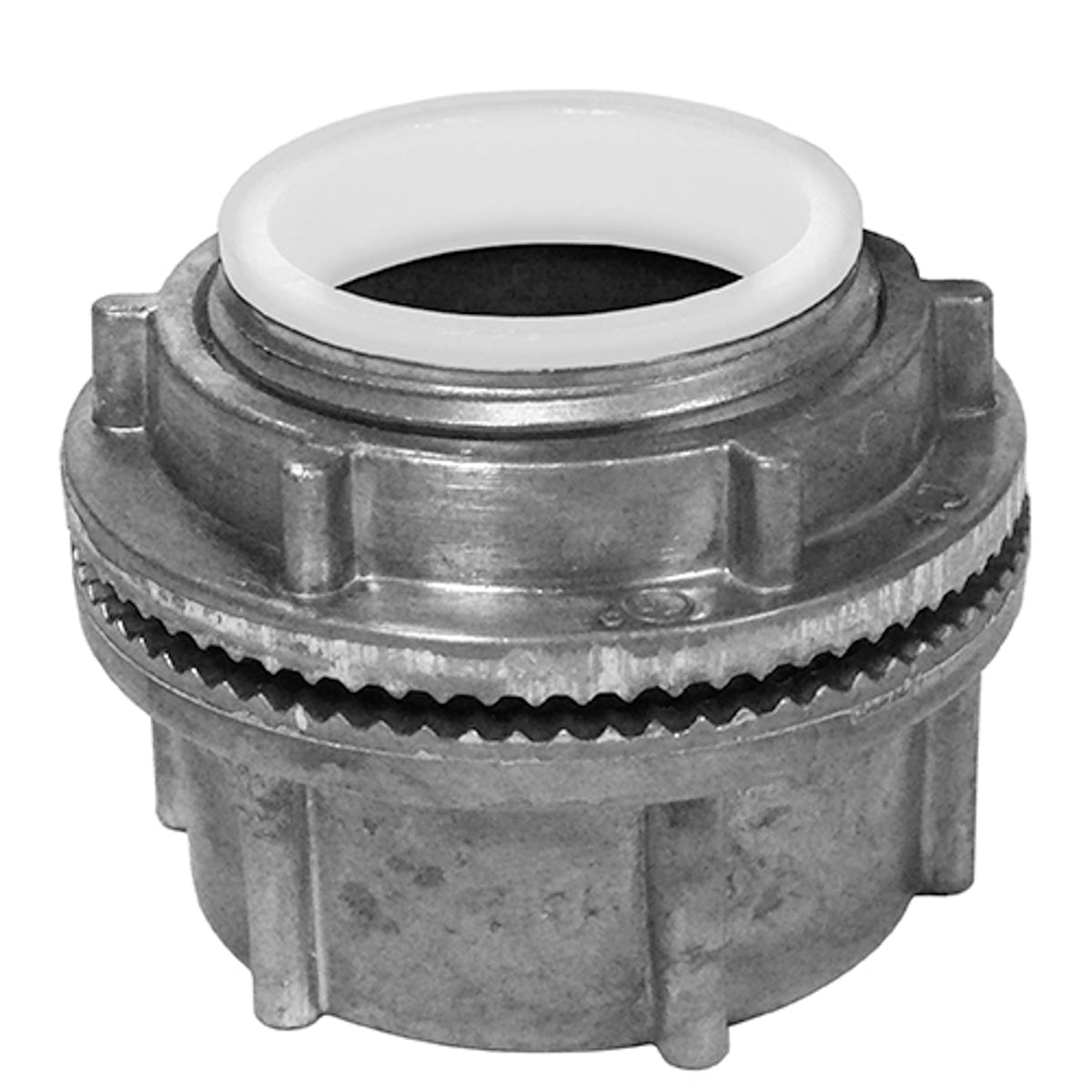

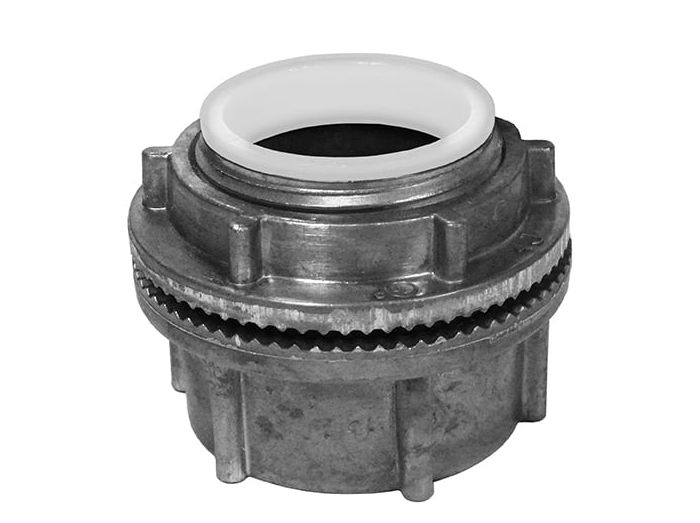

Appleton HUB250A Conduit Hub 2-1/2 in

Brand: APPLETON
SKU: HUB250A
Availability: In Stock

Ships same day if ordered by 12 pm
$107.05
$107.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The APPLETON HUB250A conduit hub is a gasketed, insulated, and watertight fitting designed for use with rigid metal conduit and IMC. Constructed from die-cast, copper-free aluminum, it ensures mechanical protection and corrosion resistance. The insulated throat prevents wire abrasion, while the integral O-ring provides a watertight seal.

  • Rugged metallic construction ensures mechanical protection
  • Insulated throat, rated up to 221 deg F, prevents wire abrasion
  • Integral O-ring provides watertight seal

Product Highlights

This hub features smooth, accurately tapped threads for easy installation and a unique profile for easy wrenching. Suitable for wet, dry, and hazardous locations.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: HUB250A
  • Country of Origin: CN
Technical Specifications
Size
2-1/2 in
Series
HUB
Material
Die Cast Copper-Free Aluminum
Suitable For Use With
Rigid Metal Conduit/IMC
Application
Indoor/Outdoor, Wet/Dry Location, Hazardous Location
Insulation Class
Insulated throat rated up to 105 degree C
Special Features
Unique profile permits easy wrenching. Smooth, accurately tapped threads facilitate installation. Watertight and corrosion resistant. NEMA Types: 2,3,3R,4,4X,12, 13
Standard
UL Standard: 514B, UL Listed: E14814, E24264. E11853, CSA Standard: C22.2 No. 18.3. CSA Certified: 065178, NEMA: FB-1
Temperature Rating
105 Degree C
Trade Size
2-1/2 Inch
Constructional Feature
Watertight, Corrosion Resistant
Ground Type
Grounding Lug
Used On
Rigid Conduit/IMC
Enclosure
Class I Div 2, Class II Div 1 and 2, Class III
NEMA Size
2/3/3R/4/4X/5/12/13
Applicable Standard
NEC 501.10(B)(4)/502.10(A)(3)/502.10(B)(4)
Product Series
Aluminum Diecast Hub
Connection Type
Hub
Angle
Straight
Hub Size
2-1/2 "
Insulated Throat
Yes
Protection Rating
Liquid Tight
NEMA Rating
NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 5, NEMA FB1
