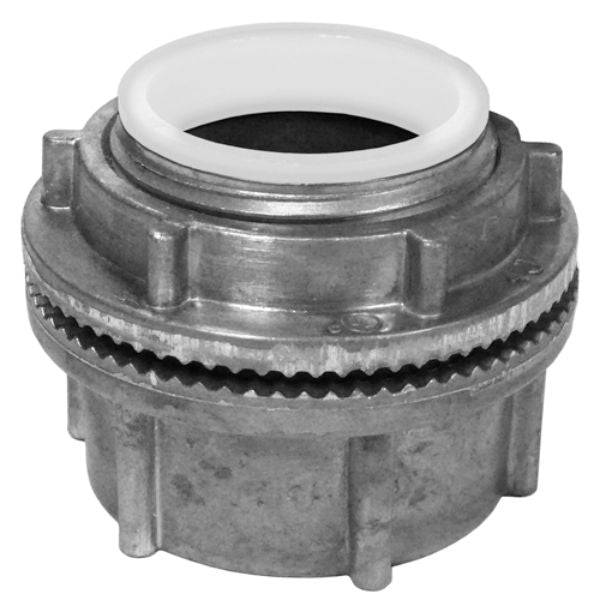

Appleton HUB200DN Watertight Conduit Hub, 2 in, For Use With IMC/Rigid Conduit

Product Description

The Appleton HUB200DN is a watertight conduit hub designed for connecting rigid or IMC conduit to threadless openings in enclosures. Made from die cast zinc, this product offers durability and mechanical protection.

• Rugged metallic construction
• Insulated throat rated up to two hundred twenty-one degrees Fahrenheit
• Integral O-ring ensures watertight sealing

Product Highlights

This conduit hub features a unique profile for easy wrenching and accurately tapped threads for smooth installation.

Product Information

Standard Information

• Brand: Appleton
• MPN: HUB200DN

Technical Specifications

• Size: 2 in
• Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure
• Material: Die Cast Zinc
• Country of Origin: IN
• Dimensions: 3.75 in OD x 1.9 in L
• Package Height: 0.47 in
• Package Length: 10.4 in
• Package Width: 6.1 in
• Package Weight: 0.885 lb
• Mfg Standards/Approvals: CSA Standard C22.2 No 18.3, UL 514B Listed
