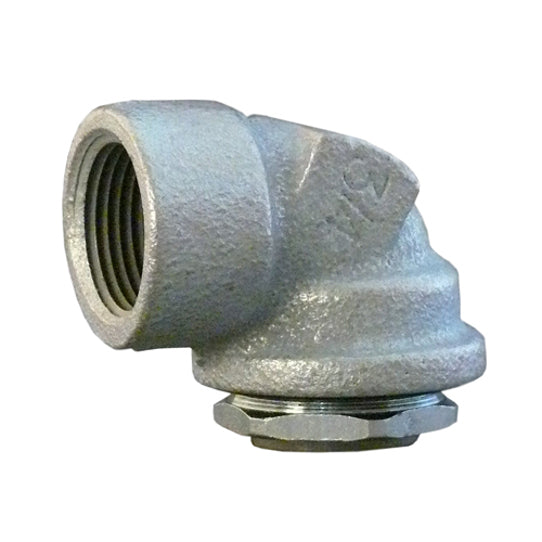

Appleton HUB-9075 3/4 inches 90D Insulated Ko Hub

Product Description

The APPLETON HUB-9075 is a 3/4" 90D insulated ko hub. These threaded conduit hubs are general purpose fittings designed for RMC and IMC. They provide a more vibration resistant connection with assured ground continuity. The O-ring provides a watertight connection between the hub and an enclosure.

• Female bushed nipple type
• Female thread for rigid conduit and IMC
• Takes less space
• Recessed O-ring seal outside the box provides a watertight threaded hub on enclosures

Product Highlights

The APPLETON HUB-9075 is suitable for service entrance and general purpose. It is used to connect rigid metal conduit or IMC to a threadless opening in an enclosure.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: HUB-9075
• Country of Origin: Mexico

Technical Specifications

• Finish: Triple Coated
• UNSPSC: 39121311
• Material: Malleable Iron
• Application: Used to connect rigid metal conduit or IMC to a threadless opening in an enclosure and suitable for service entrance and general purpose
• Size: 3/4
• Type: 90 deg
• Series: HUB
• Suitable For Use With: IMC/Rigid Conduit
• Catalog Number: HUB-9075
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• RoHS Indicator: Contact Manufacturer
• UPC: 781381239318
• GTIN: 00781381239318
• Diameter: 3/4 in
