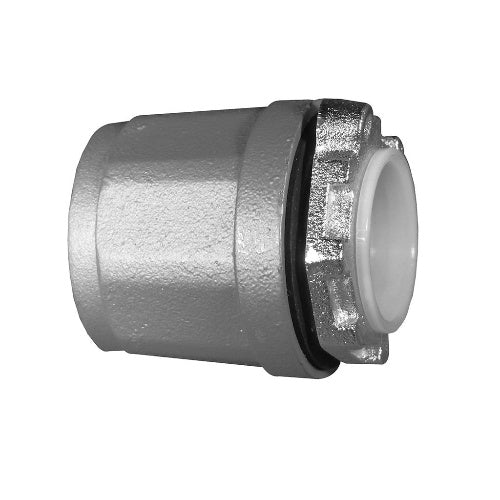

Appleton HUB-90100 Threaded Conduit Hub 90 °

Product Description

The APPLETON HUB-90100 is a threaded conduit hub designed for RMC and IMC. It features a female bushed nipple type and female thread for rigid conduit and IMC. The recessed O-ring seal outside the box provides a watertight threaded hub on enclosures. Suitable for use with service entrance conduit.

• Female bushed nipple type
• Female thread for rigid conduit and IMC
• Takes less space

Product Highlights

Provides a vibration resistant connection with assured ground continuity. The O-ring provides a watertight connection between the hub and an enclosure.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: HUB-90100
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: HUB-90100
• Manufacturer: Appleton
• Product Series: Threaded Conduit Hub
• Family Series: Appleton Fittings, Threaded Conduit Hub Series
• Description: Rigid Conduit Hub, Type 90 Deg Threaded, Throat Type Insulated, Trade Size 1 Inch, Constructional Feature Watertight, Ground Type Locking Edge of Body, Material Malleable Iron Body, Neoprene Gasket, Approval UL, CSA, Used On Rigid Conduit, Application
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Hub
• Angle: 90 ", "Trade Size": "1 \"
• Hub Size: 1 "
• Hub Type: Female Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Material: Malleable Iron
• Composition: Metallic
• NEMA Rating: NEMA 12, NEMA 4, NEMA FB1
• Hazardous Location: Yes
• Approvals: CSA, UL
• Brand: Appleton
• MPN: HUB-90100
• Component: Hub
