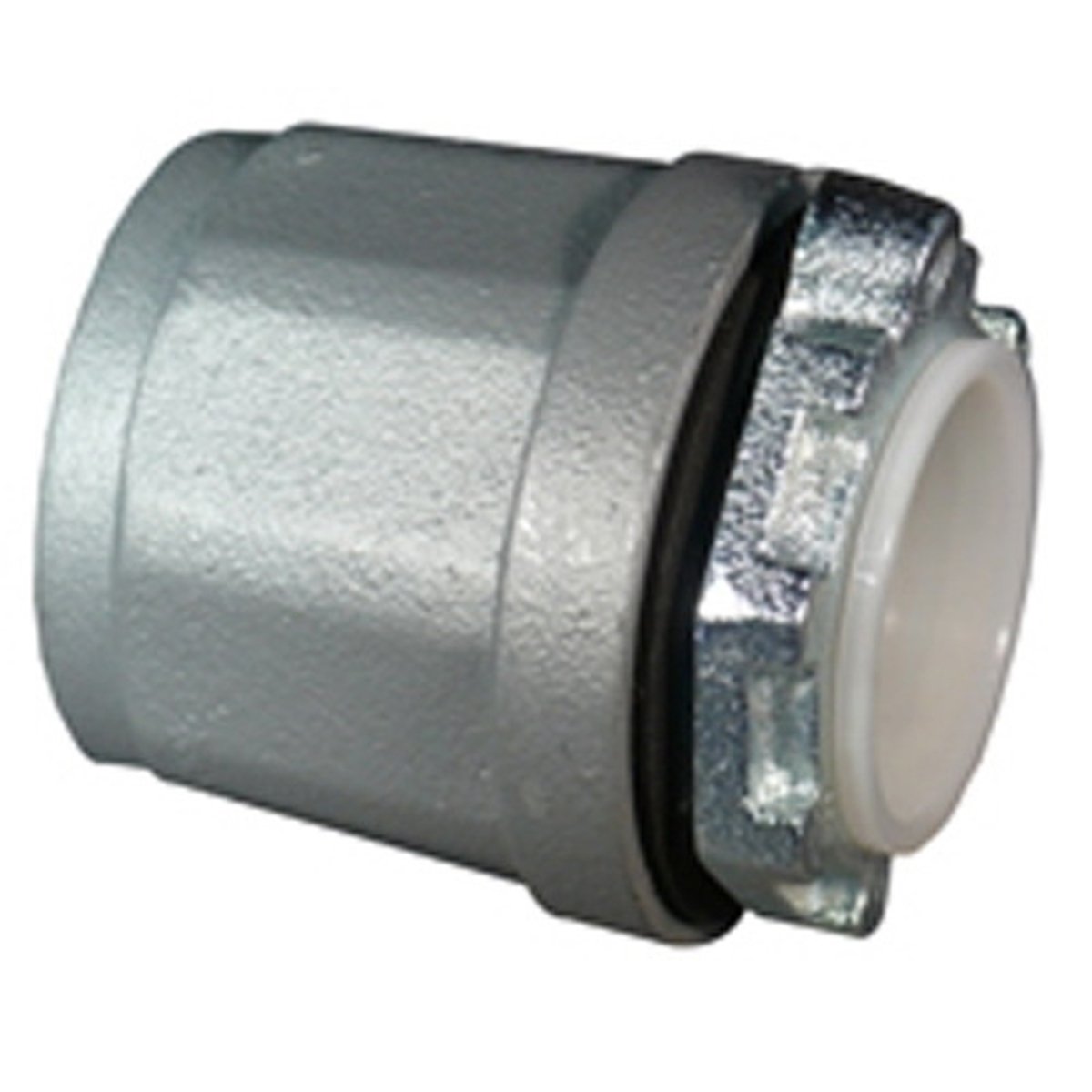

Appleton HUB-125 Straight Conduit Hub 1-1/4 Inch

Product Description

The Appleton HUB-125 is a straight conduit hub designed for use with conduits measuring one and one-quarter inches. This product is manufactured from malleable iron and features an insulated throat for improved performance. The HUB-125 is suitable for connecting rigid metal conduit or intermediate metal conduit to a threadless opening in an enclosure.

• Size: 1-1/4 inch
• Material: Malleable Iron
• Connection: Female Threaded

Product Highlights

This conduit hub offers a durable and effective solution for electrical installations. Its insulated throat design provides a vibration-resistant connection, making it ideal for various applications, including commercial and industrial uses.

Product Information

Standard Information

• Catalog Number: HUB-125
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Zinc Electroplated Malleable Iron
• Gasket: Neoprene
• Finish: Triple-Coat
• Size: 2.31 inch Diameter x 1.8 inch Length
• Application: Connects rigid metal conduit or IMC to threadless openings
• Standards: UL 514B, CSA C22.2 No. 18.3
• Country of Origin: Mexico
• Special Features: Watertight, vibration-resistant, and flame-resistant design
