Appleton GRT200-A GR Series GR Box Cast Alum 2 in Hub

Product Description

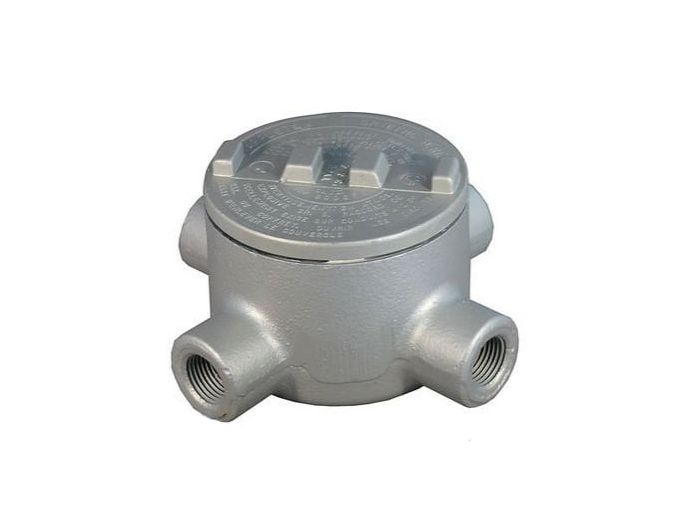

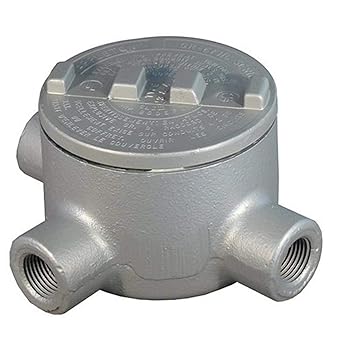

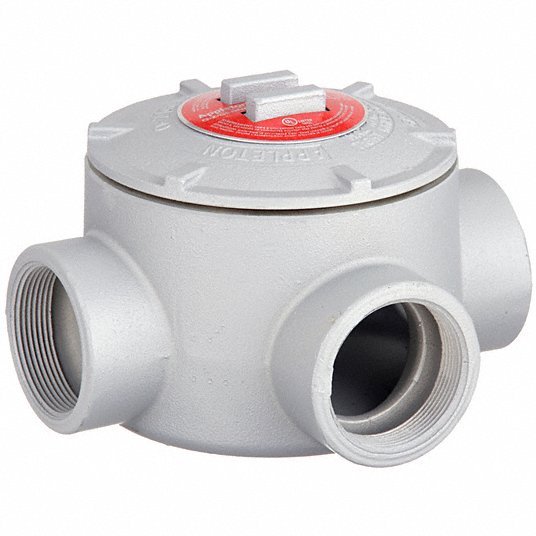

The APPLETON GRT200-A GR Series explosionproof and dust-ignitionproof conduit outlet box is furnished with an internal ground screw and O-ring. This corrosion-resistant outlet box provides access for maintenance and allows the connection of different lengths of conduit. It is used with threaded metal conduit for general purpose wiring.

• Explosionproof and dust-ignitionproof
• High tensile strength and ductility
• Resistance to corrosion, impact, and shock

Product Highlights

Ideal for indoor and outdoor classified locations. Features tapered hub threads for tight, rigid joints and ground continuity.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRT200-A
• Country of Origin: Mexico

Technical Specifications

• Product Series: GR
• Manufacturer Part Number: GRT200-A
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, GR Series
• Description: UNILETS Outlet Box, Number Of Outlet: 3, Material: Copperfree 4/10 Of 1 PCT Maximum Aluminum, Size: 2 IN, Cable Entry: 3 2 IN GRT Hub, Cubic Capacity: 76 CU-IN, Knockouts: No, Cover Opening: 4.88 IN, Form Number: 3, Height: 5-3/4 IN,
• Connection Type: Threaded
• Style: GRT
• Shape: T
• Number of Hubs: 3
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Aluminum
• Cover Composition: Aluminum
• Cover Included: Yes
• Cover Type: Blank
• Gasket Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Corrossion, impact & shock resistance
• Compatible Conduit Trade Size: 2 in
• Trade Size: 2 in
• Thread Gender: Female
• Hub Style: Threaded
• Body Capacity: 76 cu in
• Material: Aluminum
• Finish: Powder Coated
• Body Style: T
• Includes: Grounding Screw; O-ring
• Back Type: Round
• Body Type: Conduit Outlet Body
• Overall Width: 5-3/4 in
• Overall Height: 5-1/16 in
• Overall Length: 7-3/4 in
• Standards: CSA C22.2 No. 25; CSA C22.2 No. 30; UL 886; UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
• Series: GR
• Hazardous Location: Yes
• For Use With: Threaded IMC
• Hazardous Location Rating: Class 1, Zone 1 and 2, IIA, IIB; Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G
• Indoor/Outdoor Usage: Indoor/Outdoor
• Item: Conduit Outlet Body
• Thread Size: 2 in
• Thread Type: NPT
