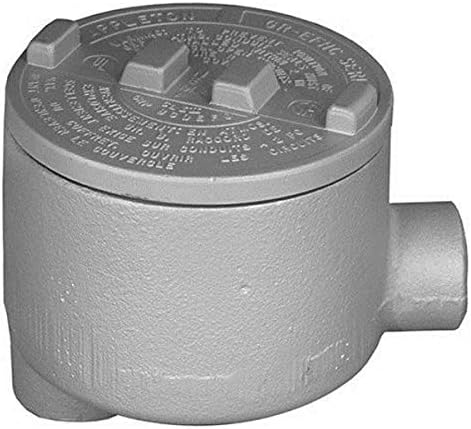

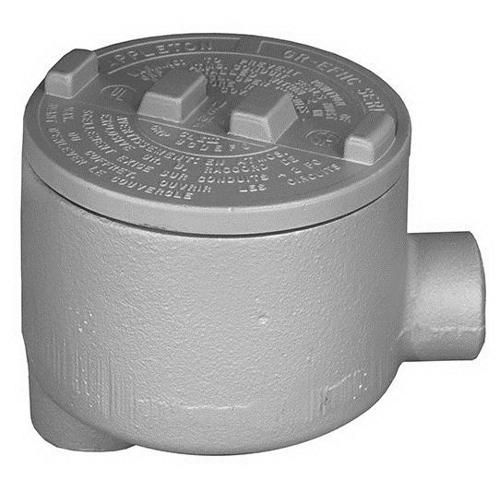

Appleton GRLB75-A Unilet 3/4 inches GR

Product Description

The APPLETON GRLB75-A is a 3/4" GR unilet. It is explosion-proof and dust-ignitionproof, suitable for indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintenance, allow the connection of different lengths of conduit, and facilitate changes in conduit direction. Designed for use with threaded metal conduit systems.

• Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
• Internal ground screw standard
• Corrosion resistant

Product Highlights

The Appleton GR series unilet is ideal for general purpose wiring and complies with a wide range of classified area requirements.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRLB75-A

Technical Specifications

• Brand: Appleton
• Item Weight: 0.94 Pounds
• Manufacturer: Appleton
• Number of Items: 1
• Unit Count: 1.0 Count
• Diameter: 3/4 in
• Material: Aluminum
• Cubic Inches: 18 cu-in
• Part Number #: GRLB75A
• SKU #: 2416557
• UNSPSC: 39121308
• Series: GR Series
• Size: 3/4 in
• Cover Opening Size: 3.38 in
• Capacity: 18 cu-in
• For Use With: Threaded Metallic Conduit System
• Coating: Epoxy Powder Coated
• Application: Indoor/Outdoor
• Product Series: GR
• Manufacturer Part Number: GRLB75-A
• Family Series: Appleton Electrical Boxes, GR Series
• Connection Type: Threaded
• Style: GRLB
• Shape: LB
• Number of Hubs: 2
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Aluminum
• Cover Composition: Aluminum
• Cover Included: Yes
• Cover Type: Blank
• Gasket Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Corrossion, impact & shock resistance
