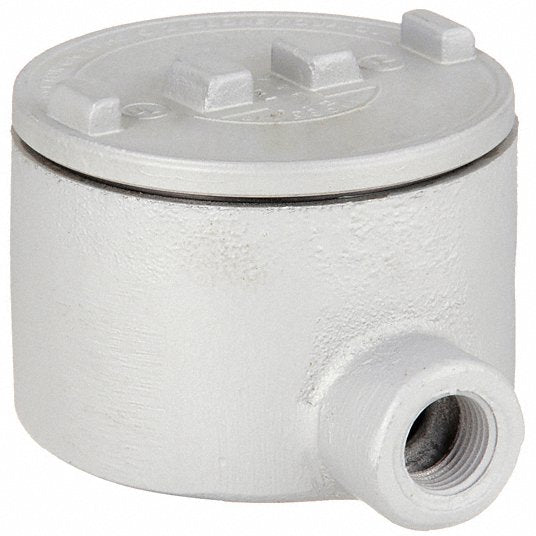

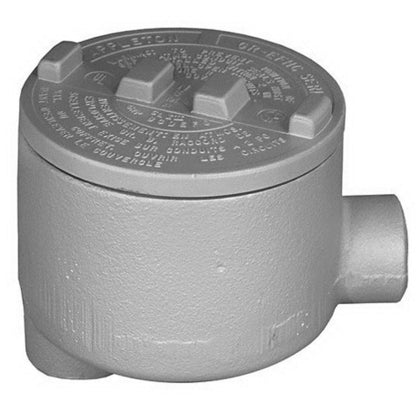

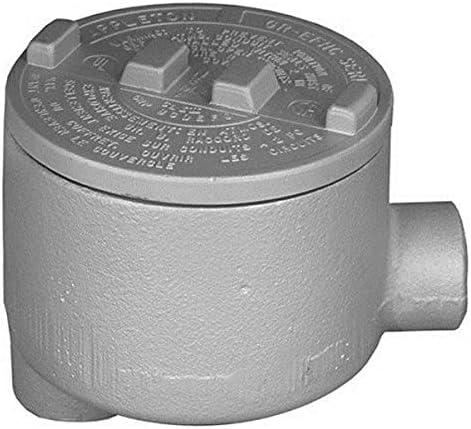

Appleton GRLB50-A 1/2 gr unilet

Product Description

The APPLETON GRLB50-A 1/2 GR Unilet is designed for use with threaded metal conduit. Suitable for joining RMC and IMC conduit in hazardous locations, these conduit outlet boxes provide access for maintenance and allow connection of different lengths of conduit. They also facilitate changing the direction of conduit.

• Suitable for joining RMC and IMC conduit in hazardous locations
• Internal ground screw standard
• Corrosion, impact & shock resistance

Product Highlights

Ideal for use in indoor and outdoor classified locations. Provides access for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRLB50-A
• Country of Origin: Mexico

Technical Specifications

• Application: For Use With Threaded Metal Conduit
• Manufacturer: Appleton
• Item model number: GRLB50A
• Diameter: 1/2 in
• Material: Aluminum
• Cubic Inches: 18 cu in
• Brand: APPLETON ELECTRIC
• Compatible Conduit Trade Size: 1/2 in
• Trade Size: 1/2 in
• Thread Gender: Female
• Number of Hubs: 2
• Hub Style: Threaded
• Body Capacity: 18 cu in
• Finish: Powder Coated
• Cover Included: Yes
• Body Style: LB
• Connection Type: Threaded
• Includes: Grounding Screw; O-ring
• Back Type: Round
• Body Type: Conduit Outlet Body
• Overall Width: 3-3/4 in
• Overall Height: 2-7/8 in
• Overall Length: 7 in
• Standards: CSA C22.2 No. 25; CSA C22.2 No. 30; UL 886; UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
• Series: GR
• Hazardous Location: Yes
• For Use With: Threaded IMC
• Hazardous Location Rating: Class 1, Zone 1 and 2, IIA, IIB; Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G
• Indoor/Outdoor Usage: Indoor/Outdoor
• Item: Conduit Outlet Body
• Shape: LB
• Thread Size: 1/2 in
• Thread Type: NPT
• Manufacturer Part Number: GRLB50-A
• UNSPSC: 39121303
• Product Series: GR
• Family Series: Appleton Electrical Boxes, GR Series
• Description: UNILETS Outlet Box, Number Of Outlet: 2, Material: Copperfree 4/10 Of 1 PCT Maximum Aluminum, Size: 1/2 IN, Cable Entry: 2 1/2 IN GRLB Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/
• Style: GRLB
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Aluminum
• Cover Composition: Aluminum
• Cover Type: Blank
• Gasket Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Corrossion, impact & shock resistance
