Appleton GRLB100-A 1 inches GR-Unilet, Explosionproof, Dust-Ignitionproof Conduit LB-Outlet Box

Product Description

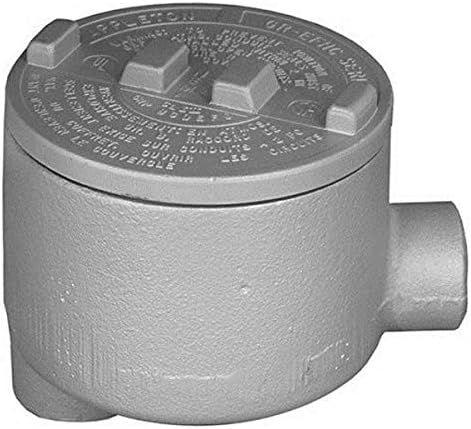

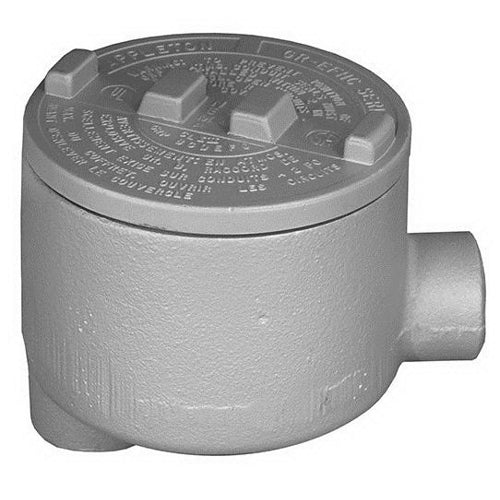

The APPLETON GRLB100-A is a 1" GR-UNILET explosionproof, dust-ignitionproof conduit LB-outlet box with an aluminum body and cover. This Unilet outlet box features 2 outlets, a 1-inch hub size, and a capacity of 18 cubic inches. It is designed for use with threaded metal conduit.

• Constructed from copper-free aluminum
• Features (2) 1 IN GRLB Hub
• Suitable for general purpose wiring, pulling wires, and connecting conduit lengths

Product Highlights

This explosionproof and dust-ignitionproof conduit outlet box is ideal for use with threaded metal conduits in hazardous locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRLB100-A

Technical Specifications

• Size: 1 IN
• Type: 2-Inlet/2-Outlet, Round, Explosionproof, Dust-Ignitionproof
• Brand: Appleton
• Hub Size: 1 in
• Material: Copperfree Aluminum
• Sub Brand: Unilet
• Trade Size: 1 Inch
• Cable Entry: 1 in
• Applications: Threaded Metal Conduit
• Mounting Type: Wall/Ceiling
• TC Connection: Threaded
• Number of Hubs: 2
• Hub Type: External
• Hub Location: (1) Side, (1) Down
• Capacity: 18 Cu Inch
• Shape: Round
• Cover Type: Externally Threaded
• Cover Opening Diameter: 3.38 Inch
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4
• Approval: UL, CSA C22.2
• Application: General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• IGCC: 4433
• Depth: 1 in
• Standard: Class 1; Zone 1 And 2 IIA And IIB; UL File Number E10444; CSA C22.2 No. 25; C22.
• Knockouts: No
• Cubic Capacity: 18 CU-IN
• Number of Outlet: 2
• Special Features: Explosionproof; dust-ignitionproof; Accurately tapped; tapered hub threads for t
• WES Product code: APPJGRLB100A
• Manufacturer: Appleton
• Item model number: GRLB100A
• Cubic Inches: 18 in³
• Number of Outlets: 2
