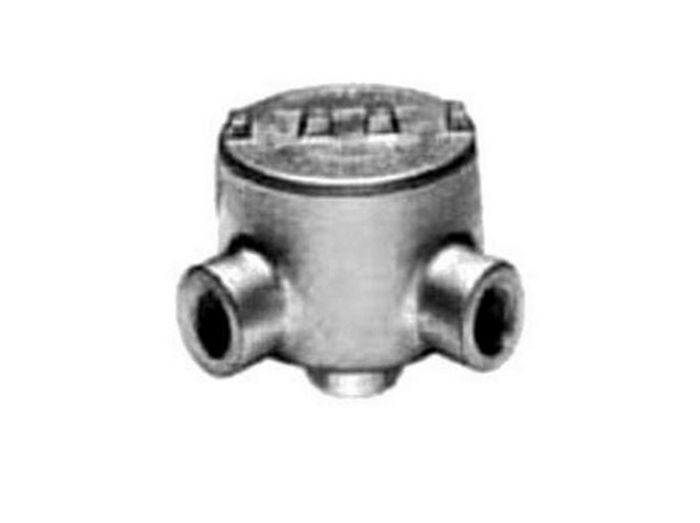

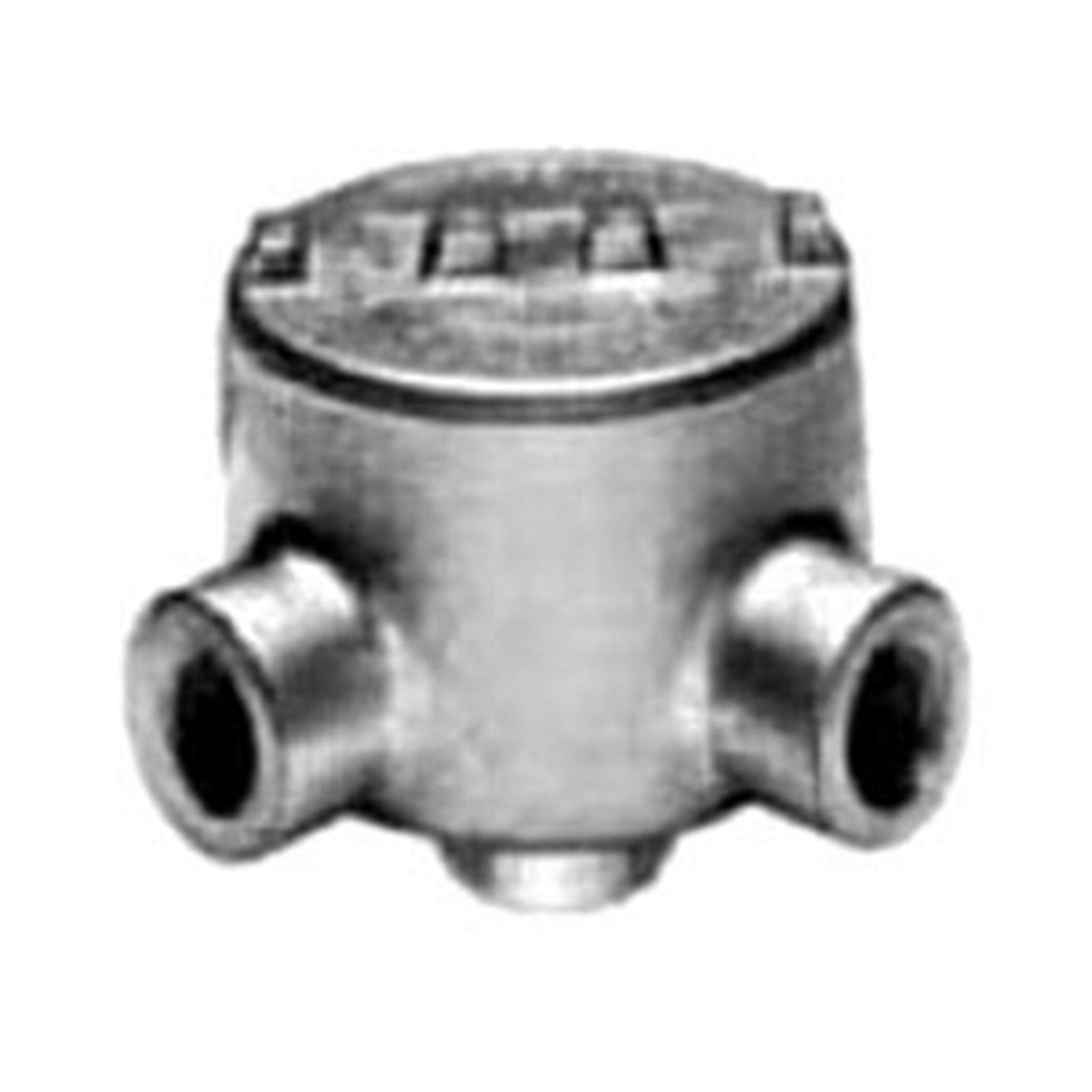

Appleton GRLA75 Type LA Conduit Body, 3/4 inch

Product Description

The APPLETON GRLA75 is a Type LA conduit body designed for use with threaded metal conduit. Constructed from malleable iron, this 3/4 inch outlet box features a zinc electroplated finish. It offers three 3/4 IN GRLA hubs and a cubic capacity of 18 CU-IN. This explosionproof and dust-ignitionproof box provides access for maintenance and allows for changes in conduit direction.

• Explosion proof and dust-ignition proof
• Features internal ground screw
• Corrosion-resistant malleable iron construction

Product Highlights

This conduit body is ideal for general purpose wiring and provides reliable safety in hazardous locations. It is suitable for indoor and outdoor use.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRLA75
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: GRLA75
• Manufacturer: Appleton
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit
• Cable Entry: (3) 3/4 IN GRLA Hub
• Cubic Capacity: 18 CU IN
• Knockouts: No
• Material: Malleable Iron
• Standard: Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III
• UPC: 781381443159
• GTIN: 00781381443159
• Item Type: Outlet Box
• Length: 5.3000 Inch
• Width: 5.1000 Inch
• Height: 4.6000 Inch
• Size: 3/4 in
• Style: LA
• Hub Size: 3/4 Inch
• Hub Type: External
• Number of Hubs: 3
• Hub Location: (2) Side, (1) Down
• Shape: Round
• Cover Type: Externally Threaded
• Cover Opening Diameter: 3.38 Inch
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4
• Approval: UL, CSA C22.2
• Product Series: GR
• Family Series: Appleton Electrical Boxes, GR Series
• Connection Type: Threaded
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Composition: Aluminum
• Cover Included: Yes
• Gasket Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Corrossion, impact & shock resistance
• Cable Entry Size: 0.75
• Series: GR Series
• Standards: Class 1, Zone 1 and 2 IIA and IIBUL File No. E10444CSA C22.2 No. 25C22.2 No. 30CSA 013017Class I, Division 1 and 2, Groups B, C, D Class II, Division 1 and 2, Groups E, F, G Class IIIRoHS Compliant
• Suitable For Use With: Threaded Metallic Conduit System
• Type: LA-Style Dust-Ignitionproof Explosionproof
• UNSPSC: 39121308
• Brand Name: Appleton™
• Capacity: 18 in³
• Cover Opening Size: 3.38 in
• Finish: Triple Coated
