Appleton GRJT50 Grjt50 Apn 1/2 inch

Product Description

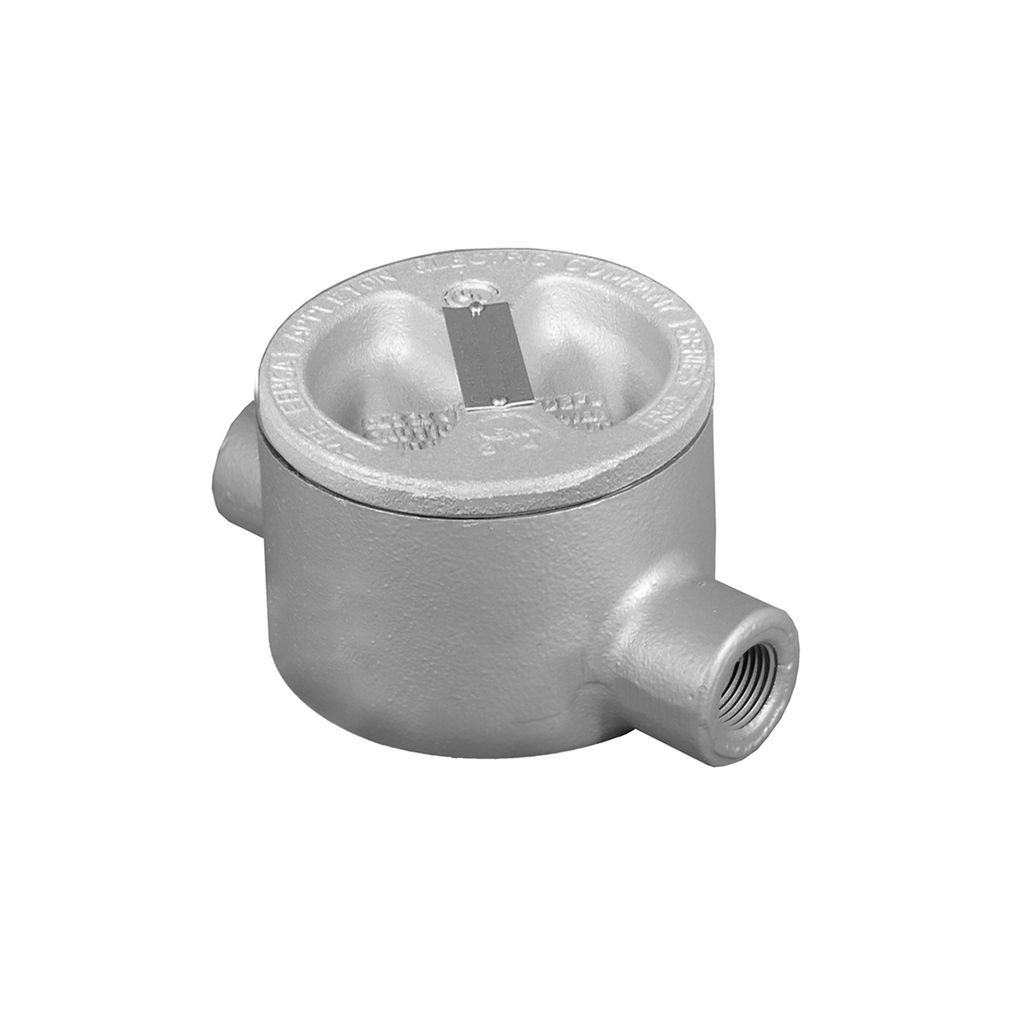

The Appleton GRJT50 Grjt50 Apn is an explosionproof, dust-ignitionproof, and raintight conduit outlet box with an internal ground screw. Designed for indoor and outdoor classified locations, it provides access for maintenance and allows for connecting different conduit lengths. The corrosion-resistant outlet box facilitates changes in conduit direction and is suitable for use with threaded metallic conduit systems.

• Malleable iron body offers high tensile strength and resistance to corrosion, impact, and shock.
• Features accurately tapped, tapered hub threads for tight, rigid joints and ground continuity.
• Designed with a smooth, rounded integral bushing to protect conductor insulation.

Product Highlights

This explosionproof conduit outlet box is ideal for general purpose wiring and pulling wires in hazardous locations. It is constructed from durable malleable iron and finished with a triple coating.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRJT50
• Country of Origin: MX

Technical Specifications

• Size: 1/2 in
• Finish: Triple Coated
• Series: GRJ
• Capacity: 7.3 cu-in
• Material: Malleable Iron
• Cover Opening Size: 2.13 in
• Suitable For Use With: Threaded Metallic Conduit System
• Type: Explosionproof, Dust-Ignitionproof
• Brand: Appleton
• Hub Size: 1/2 Inch
• Sub Brand: Unilet
• Used With: Threaded Metal Conduit
• Cable Entry: (3) 1/2 IN GRJT Hub
• Applications: For Pulling of Wires
• TC Connection: Threaded
• Cubic Capacity: 7.3 CU IN
• Knockouts: No
• Special Features: Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with malleable iron cover; General purpose wiring; Externally threaded body with internally threaded cover; Small, round conduit outlet boxes; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
• Standard: UL 886, UL File Number E10444, CSA 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
• Item Type: Outlet Box
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Hub Type: External
• Number of Hubs: 3
• Hub Location: (3) Side
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 2.13 Inch
• Approval: UL 886, CSA C22.2
• Includes: Cover
• Application: General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
