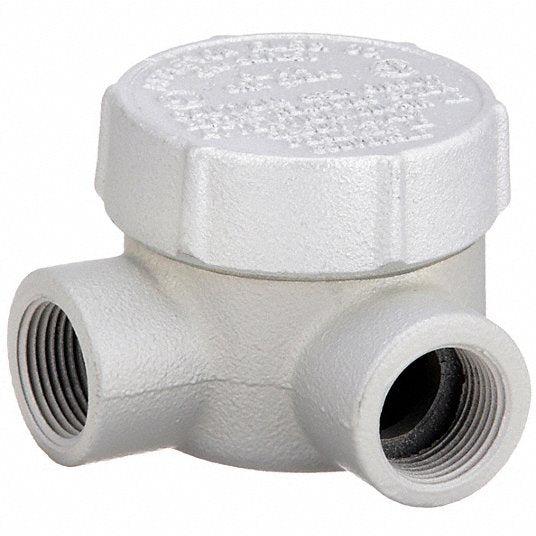

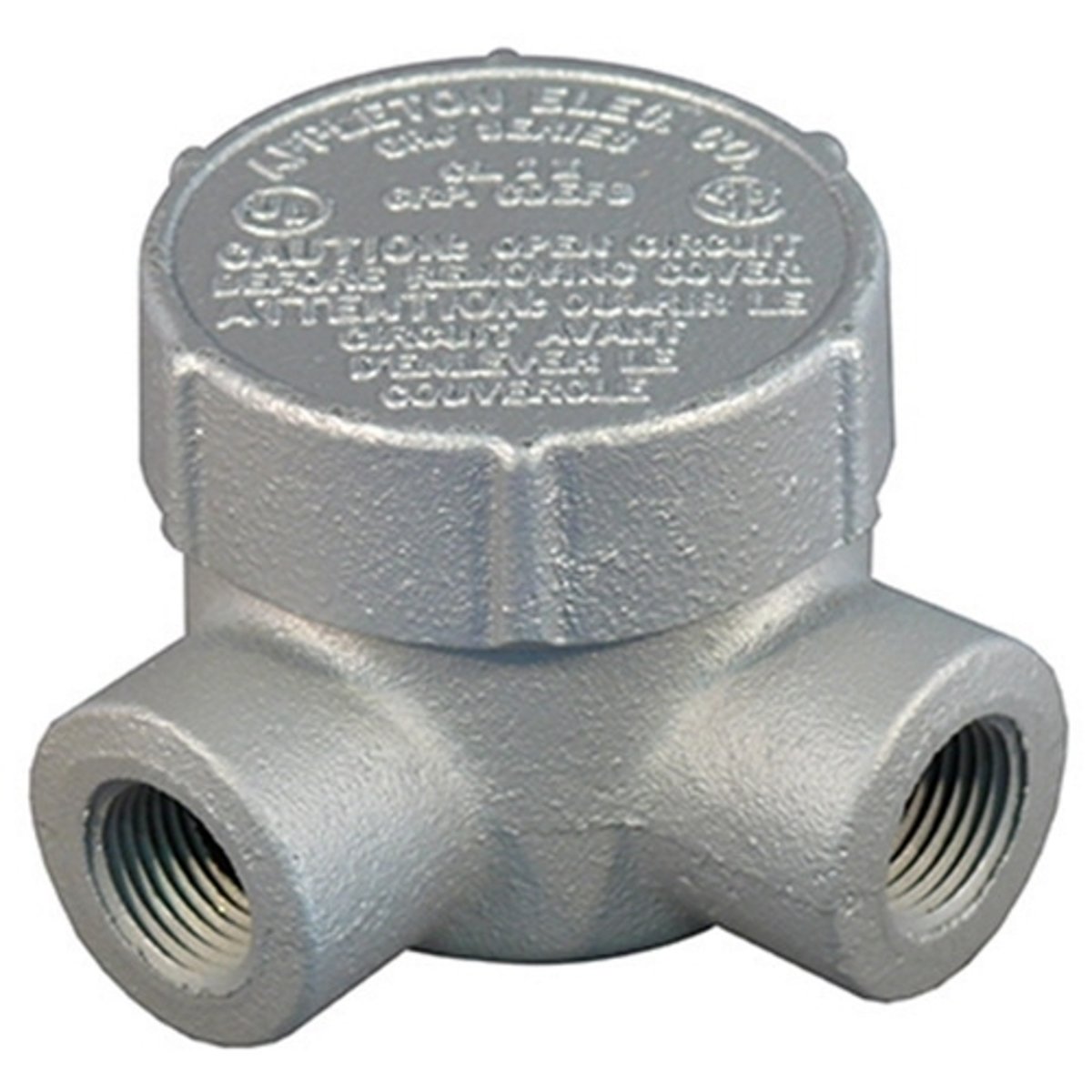

Appleton GRJL75 grjl tight fitting 3/4 grjl

Product Description

The APPLETON GRJL75 is a GRJL tight fitting suitable for use with threaded metal conduit. These explosionproof, dust-ignitionproof, and raintight conduit outlet boxes are ideal for indoor and outdoor classified locations. The corrosion-resistant outlet boxes provide access for maintenance and allow for changing the direction of conduit.

• Explosionproof, dust-ignitionproof, raintight.
• Malleable iron bodies have high tensile strength and ductility, providing great resistance to corrosion, impact, and shock.
• Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity.

Product Highlights

This fitting is designed for general purpose wiring, pulling wires, connecting conduit lengths, and providing access for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRJL75
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: GRJL75
• Brand: APPLETON
• Manufacturer: Appleton Electric
• Size: 3/4 IN
• Type: Round, Explosionproof, Dust-Ignitionproof, Corrosion-Resistant, Raintight
• Material: Malleable Iron
• Sub Brand: Unilet
• Used With: Threaded Metal Conduit
• Trade Size: 3/4 Inch
• Cable Entry: 0.75 in
• Product UPC: 78138144070
• 12-Digit UPC: 781381440707
• Applications: Indoor/Outdoor
• Mounting Type: Ceiling or Wall
• TC Connection: Threaded
• Number of Outlets: 2
• Cubic Capacity: 7.3 CU IN
• Knockouts: No
• Standard: UL 886, UL File Number E10444, CSA 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
• Item Type: Outlet Box
• Length: 4.5000 Inch
• Width: 3.5000 Inch
• Height: 3.5000 Inch
• Hub Size: 3/4 Inch
• Hub Type: External
• Number of Hubs: 2
• Shape: L
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Application: General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• Product Series: GRJ
• Family Series: Appleton Electrical Boxes, GRJ Series
• Connection Type: Threaded
• Style: GRJL
• Composition: Malleable Iron
• Cover Composition: Malleable Iron
• Cover Included: Yes
• Approvals: CSA, UL
• Diameter: 3/4 in
• Cubic Inches: 7.300 in³
• Compatible Conduit Trade Size: 3/4 in
• Thread Gender: Female
• Hub Style: Threaded
• Body Capacity: 7.3 cu in
• Finish: Triple Coat Epoxy
• Body Style: L
• Back Type: Round
• Body Type: Conduit Outlet Body
• Standards: UL 886; UL Listed for Class I, Division 1 and 2, Groups C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
• Series: GRJ
• Hazardous Location: Yes
• For Use With: Threaded IMC
• Hazardous Location Rating: Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
• Indoor/Outdoor Usage: Indoor/Outdoor
• Item: Conduit Outlet Body
• Thread Size: 3/4 in
• Thread Type: NPT
• Suitable For Use With: Threaded Metallic Conduit System
