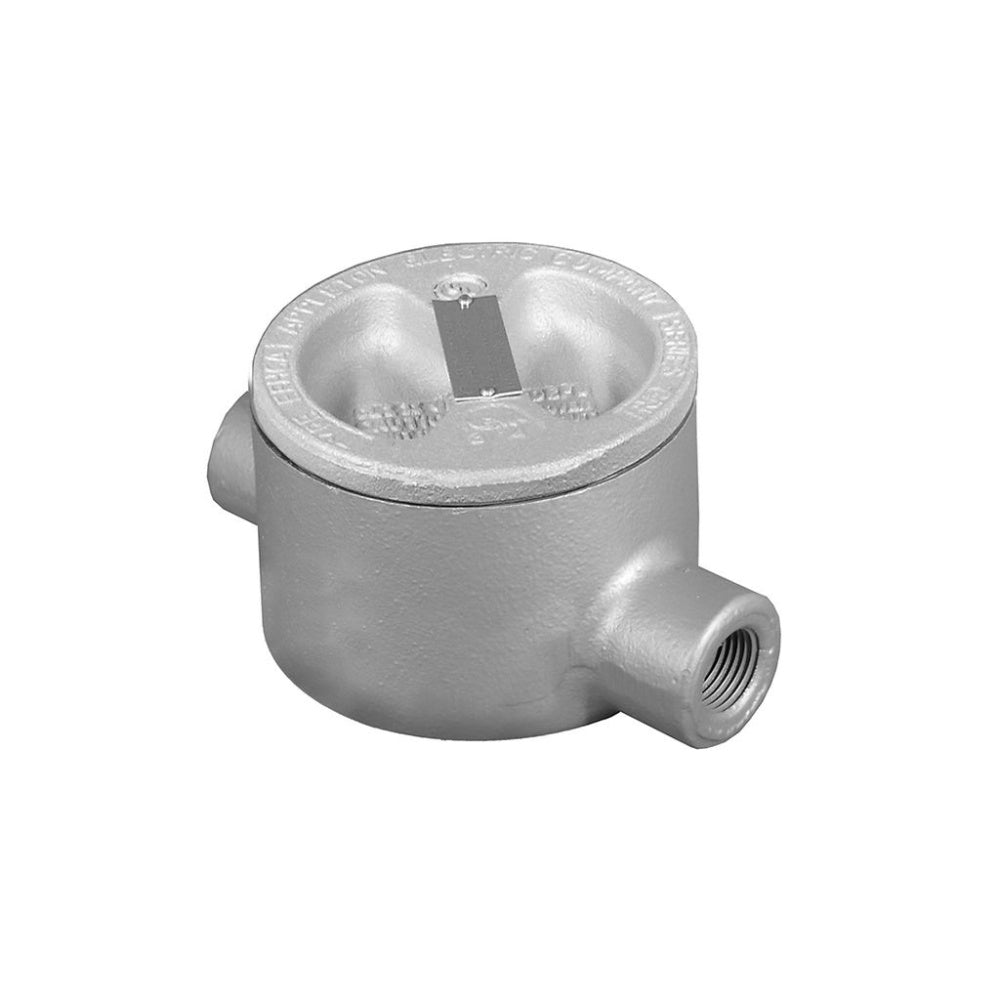

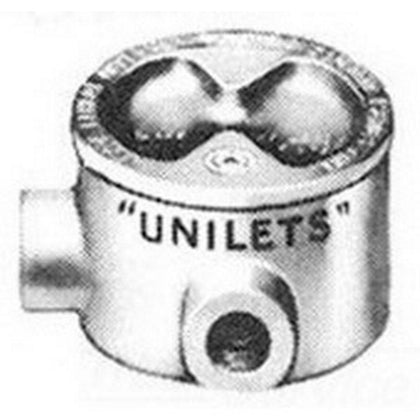

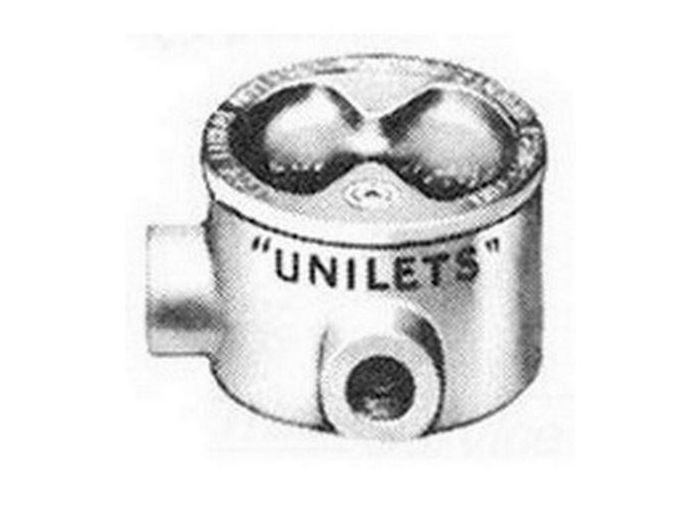

Appleton GRHL75 unilet 3/4 in Conduit Outlet Box

Product Description

The APPLETON GRHL75 conduit outlet box is explosionproof and dust-ignitionproof, furnished with an internal ground screw and O-ring. Ideal for indoor and outdoor classified locations, these corrosion-resistant outlet boxes provide access for maintenance and allow connection of different lengths of conduit, and for changing the direction of conduit.

• Internal ground screw and O-ring
• Suitable for indoor and outdoor classified locations
• Corrosion-resistant

Product Highlights

Provides access for maintenance, allows the connection of different lengths of conduit, and allows for changing the direction of conduit.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRHL75

Technical Specifications

• Product Series: GRH
• Manufacturer Part Number: GRHL75
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, GRH Series
• Number of Outlets: 2
• Material: Malleable Iron
• Size: 3/4 IN
• Cubic Capacity: 13.8 CU-IN
• Knockouts: No
• Cover Opening: 3.38 IN
• Height: 3-3/4 IN
• Width: 3-3/4 IN
• Depth: 1.63 IN
• Connection Type: Threaded
• Shape: L
• Number of Hubs: 2
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Composition: Aluminum
• Cover Included: Yes
• Cover Type: Blank
• Gasket Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Corrossion, impact & shock resistance
• Finish: Triple Coated
• UNSPSC: 39121308
• Application: Indoor/Outdoor Applications
• Type: Dust-Ignitionproof Explosionproof
• Series: GRH
• Capacity: 13.8
• Includes: Internal Ground Screw and O-Ring
• Suitable For Use With: Threaded Metallic Conduit System
• Diameter: 3/4 in
• Cubic Inches: 13.800 in
