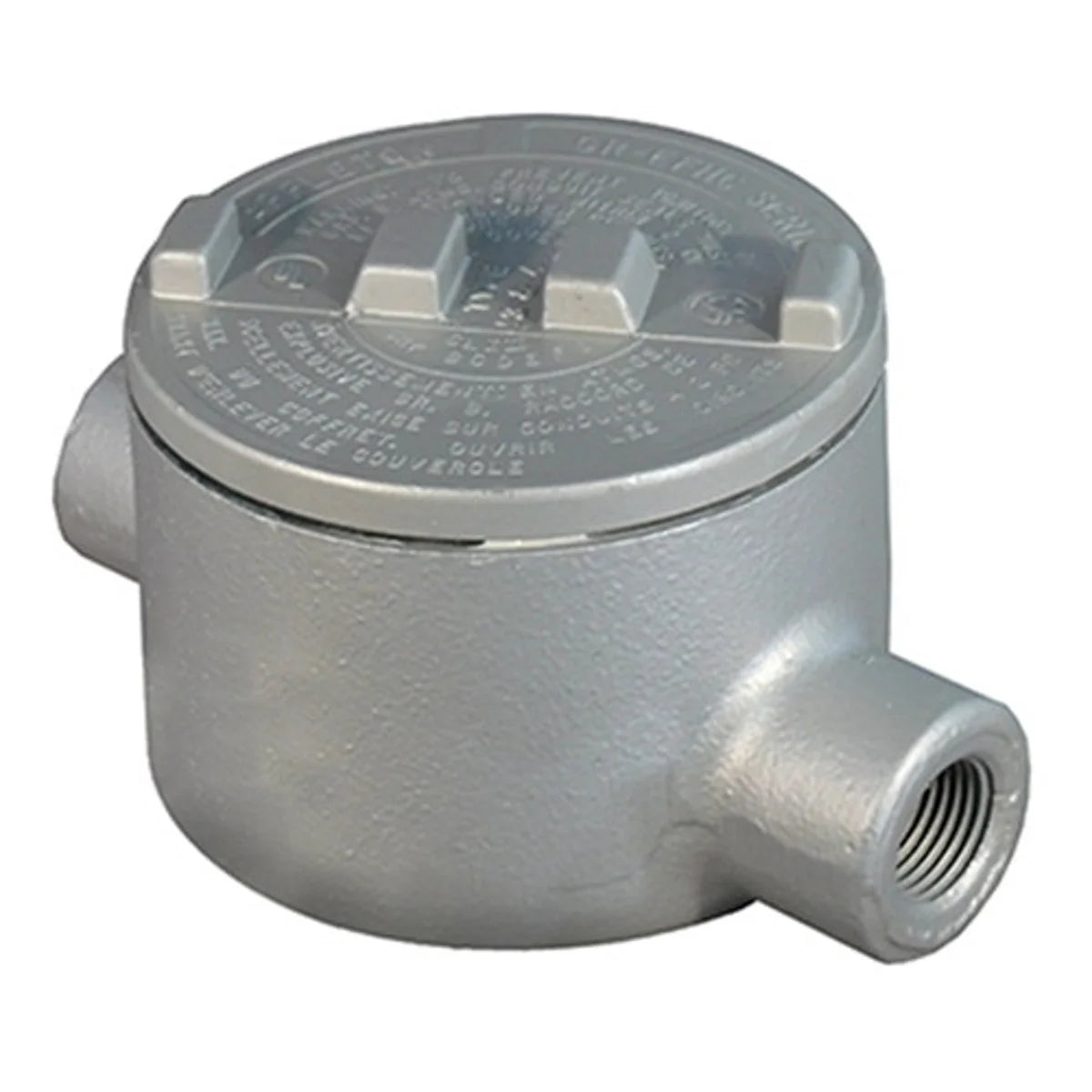

Appleton GRC50 1/2 Gr Type C Unilet

Product Description

The Appleton GRC50 is a reliable unilet outlet box designed for threaded metal conduit applications. With two outlets, this product is made from malleable iron and features a cubic capacity of eighteen cubic inches. The outlet box accommodates cable entry from two half-inch GRC hubs. Ideal for indoor and outdoor applications, the GRC50 features a cover opening of three point thirty-eight inches.

• Constructed from durable malleable iron
• Explosionproof and dust-ignitionproof
• Suitable for pulling wires and connecting conduit lengths

Product Highlights

This product is suitable for general purpose wiring and provides a sealing fit with covers. It is designed for robust environments where corrosion resistance is necessary.

Product Information

Standard Information

• Catalog Number: GRC50
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Malleable Iron
• Type: Explosionproof, Dust-Ignitionproof
• Hub Size: 1/2 in
• Cable Entry: (2) 1/2 in GRC Hub
• Cubic Capacity: 18 CU IN
• Knockouts: No
• Height: 3.75 inches
• Width: 3.75 inches
• Depth: 2.25 inches
• Weight: 2.80 pounds
• Country of Origin: Mexico
• Application: For use with threaded metal conduit
