Appleton GRC100-A GR Unilet 1 Type C

Brand: APPLETON
SKU: GRC100-A
Availability: In Stock

Ships same day if ordered by 12 pm
$157.98
$157.98
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

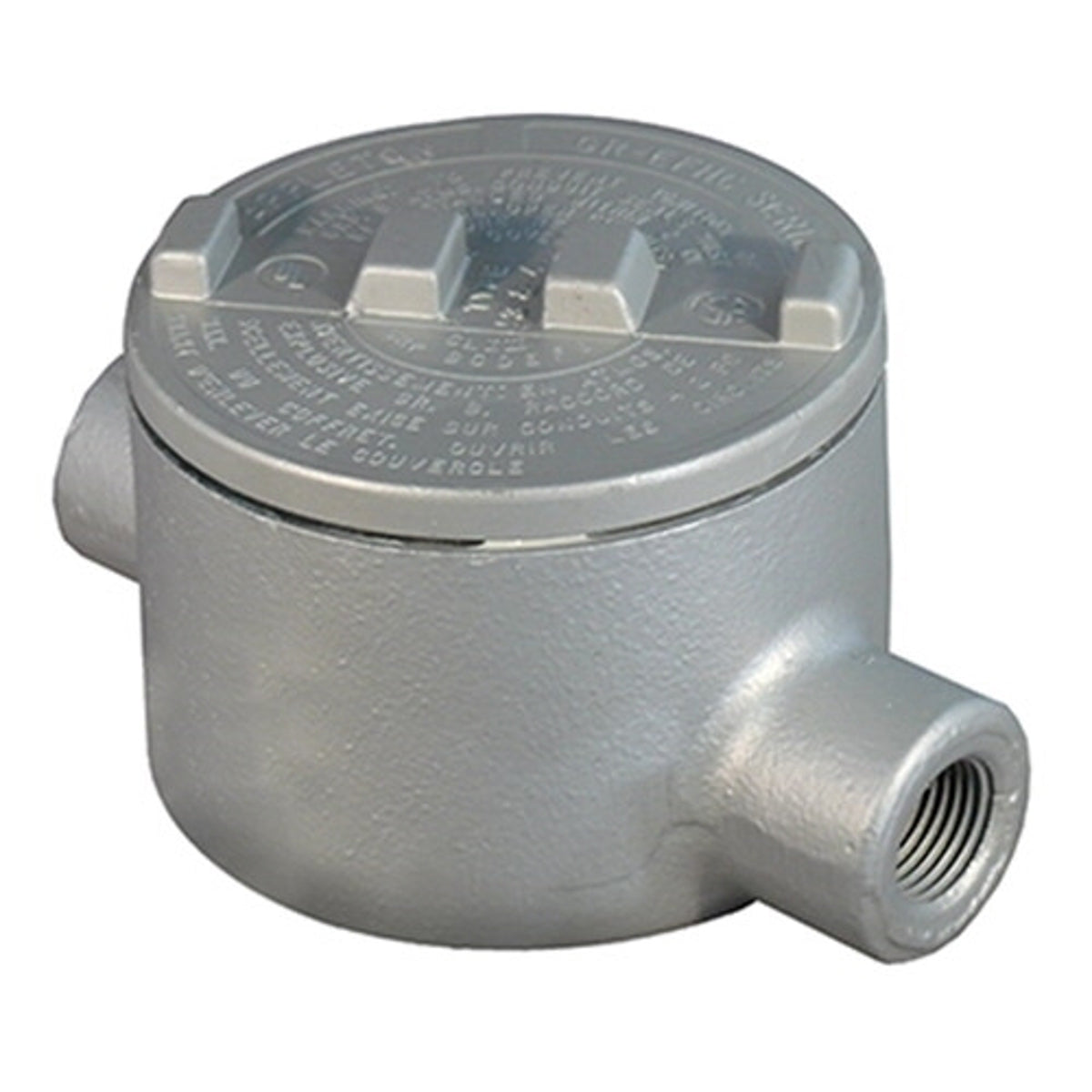

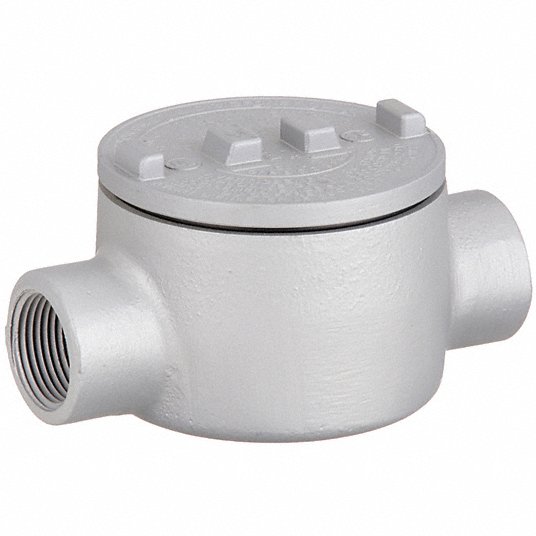

The APPLETON GRC100-A GR Unilet is a type C conduit outlet box. Constructed from copper-free aluminum, it features accurately tapped, tapered hub threads for tight, rigid joints and ground continuity. It is suitable for use with threaded metal conduit.

  • Explosionproof and dust-ignitionproof
  • Features a copperfree aluminum cover
  • Corrosion-resistant, ideal for indoor or outdoor use

Product Highlights

This conduit outlet box is designed for pulling wires, connecting conduit lengths, and providing access for maintenance in hazardous locations.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: GRC100-A
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
GRC100-A
Manufacturer
Appleton Electric
Brand
APPLETON ELECTRIC
Sub Brand
UNILETS
Country of Origin
Mexico
Made in USA
No
Application
For Use With Threaded Metal Conduit
Cable Entry
(2) 1 IN GRC Hub
Cubic Capacity
18 CU IN
Knockouts
No
Material
Aluminum
Special Features
Explosionproof, dust-ignitionproof; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard
CSA C22.2 No. 25; CSA C22.2 No. 30; UL 886; UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
RoHS Indicator
Contact Manufacturer
UPC
781381436953
GTIN
00781381436953
Item Type
Outlet Box
Size
1 in
Compatible Conduit Trade Size
1 in
Trade Size
1 in
Thread Gender
Female
Number of Hubs
2
Hub Style
Threaded
Body Capacity
18 cu in
Finish
Powder Coated
Cover Included
Yes
Body Style
C
Connection Type
Threaded
Includes
Grounding Screw; O-ring
Back Type
Round
Body Type
Conduit Outlet Body
Overall Width
3-3/4 in
Overall Height
2-7/8 in
Overall Length
7 in
Series
GR
Hazardous Location
Yes
For Use With
Threaded IMC
Hazardous Location Rating
Class 1, Zone 1 and 2, IIA, IIB; Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G
Indoor/Outdoor Usage
Indoor/Outdoor
Item
Conduit Outlet Body
Shape
C
Thread Size
1 in
Thread Type
NPT
UNSPSC
39121303
Cubic Inches
18 in Appleton GRC100-A GR Unilet 1 Type C
Length
7 in
Width
3.75 in
Height
2.875 in
