Appleton GIB-250L-20AC Grounding Bushing 2-1/2 Inch

Brand: APPLETON
SKU: GIB-250L-20AC
Availability: In Stock

Ships same day if ordered by 12 pm
$60.68
$60.68
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

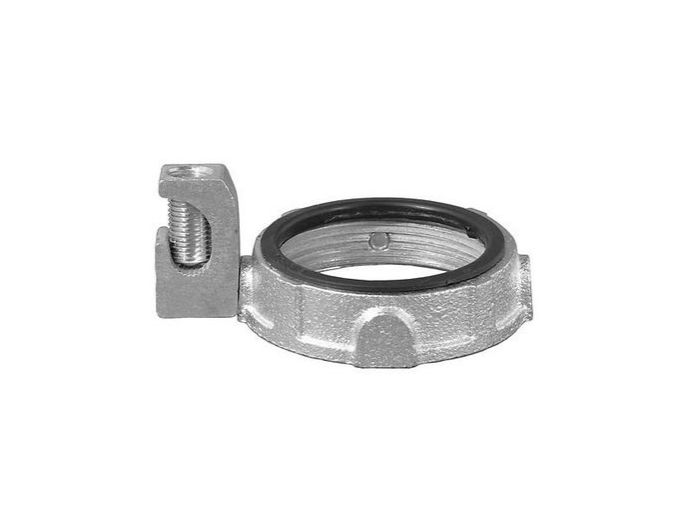

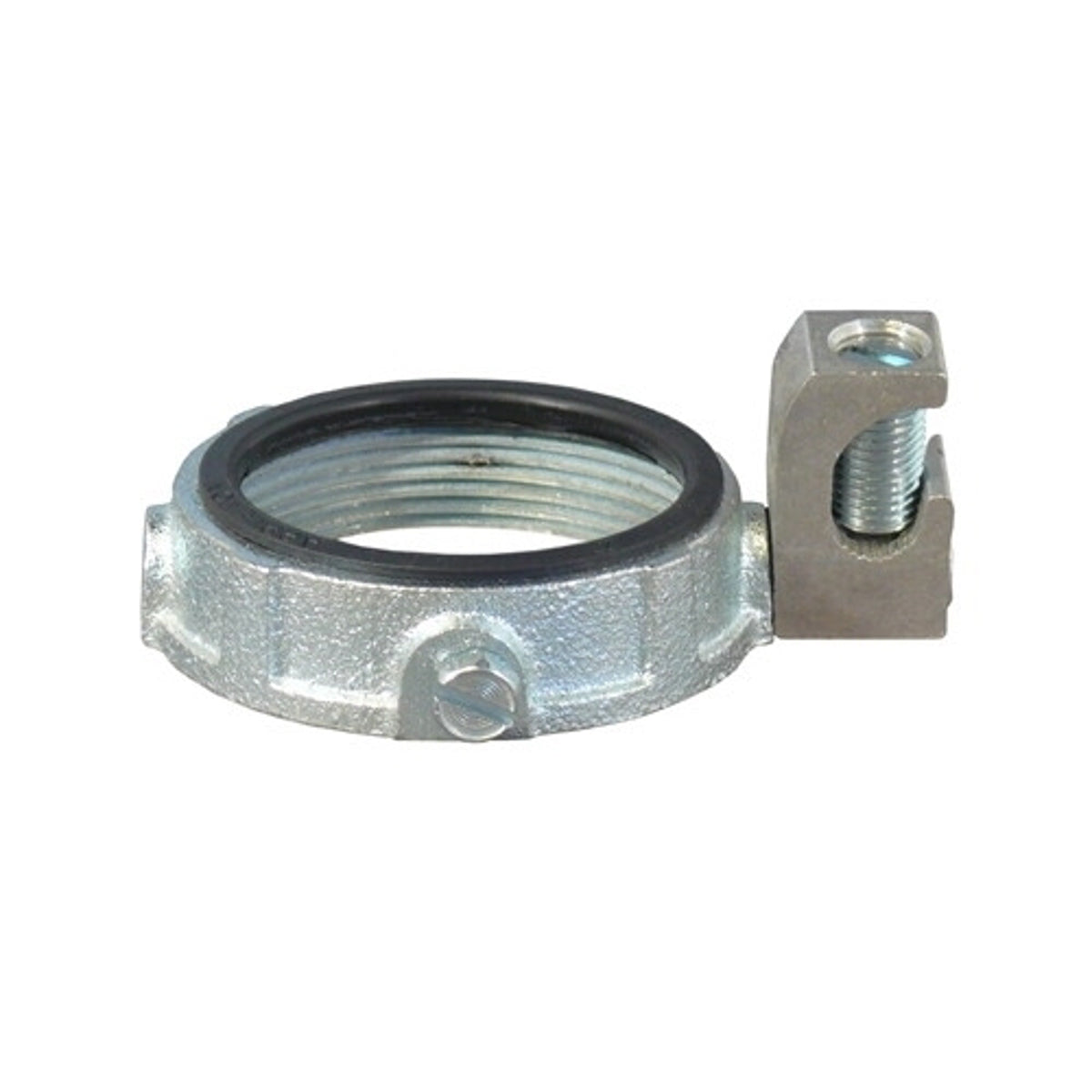

The APPLETON GIB-250L-20AC is an insulated grounding bushing with an aluminum lay-in-lug. Constructed from malleable iron with a zinc electroplated body and tin-plated lug, it features a threaded connection. It is suitable for use with threaded rigid metal conduit and IMC. The bushing provides a compact means of grounding conduit through an insulated bushing.

  • Features a bronze lay-in-lug
  • Insulating liner material is self-extinguishing
  • Tough plastic liner resists corrosion, chemicals, and temperature extremes

Product Highlights

This grounding bushing provides a reliable grounding solution for rigid metal conduit and IMC applications.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: GIB-250L-20AC
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
GIB-250L-20AC
Manufacturer
Appleton
Brand
Appleton
Country of Origin
Mexico
Made in USA
No
Application
For Use With Threaded Rigid Metal Conduit And IMC
Connection
Threaded
Finish
Zinc Electroplated Body, Tin Plated Lug
Material
Malleable Iron
Special Features
Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
Standard
UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
UPC
781381091190
GTIN
00781381091190
Item Type
Insulated Grounding Bushing With Aluminum Lay-In-Lug
Size
2-1/2
Temperature Rating
150 DEG C
AC Cable Size
14 - 2/0 AWG
Series
GIB-L-AC
Catalog ID
APPGIB-250L-20AC
Product Series
GIB-LS
Family Series
Appleton Bushings, GIB-LS Series
Description
Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 2-1/2 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 0.88 IN Height X 3.38 IN Diameter, Cable
Grounding
Yes
Hazardous Location
No
Insulation Material
Plastic
Mounting
Set Screw
Composition
Iron
Trade Size
2.5 "
Conduit Fitting
RMC (Rigid Metallic Conduit), IMC (Intermediate Metallic Conduit)
Approvals
CSA, UL
Comments
Listed for Ordinary Locations
