Appleton G-AM671L-48I/2 Areamaster Integrally Ballasted Floodlight 250W (Yoke Mount)

Brand: APPLETON
SKU: G-AM671L-48I/2
Availability: In Stock

Ships same day if ordered by 12 pm
$1,387.26
$1,387.26
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

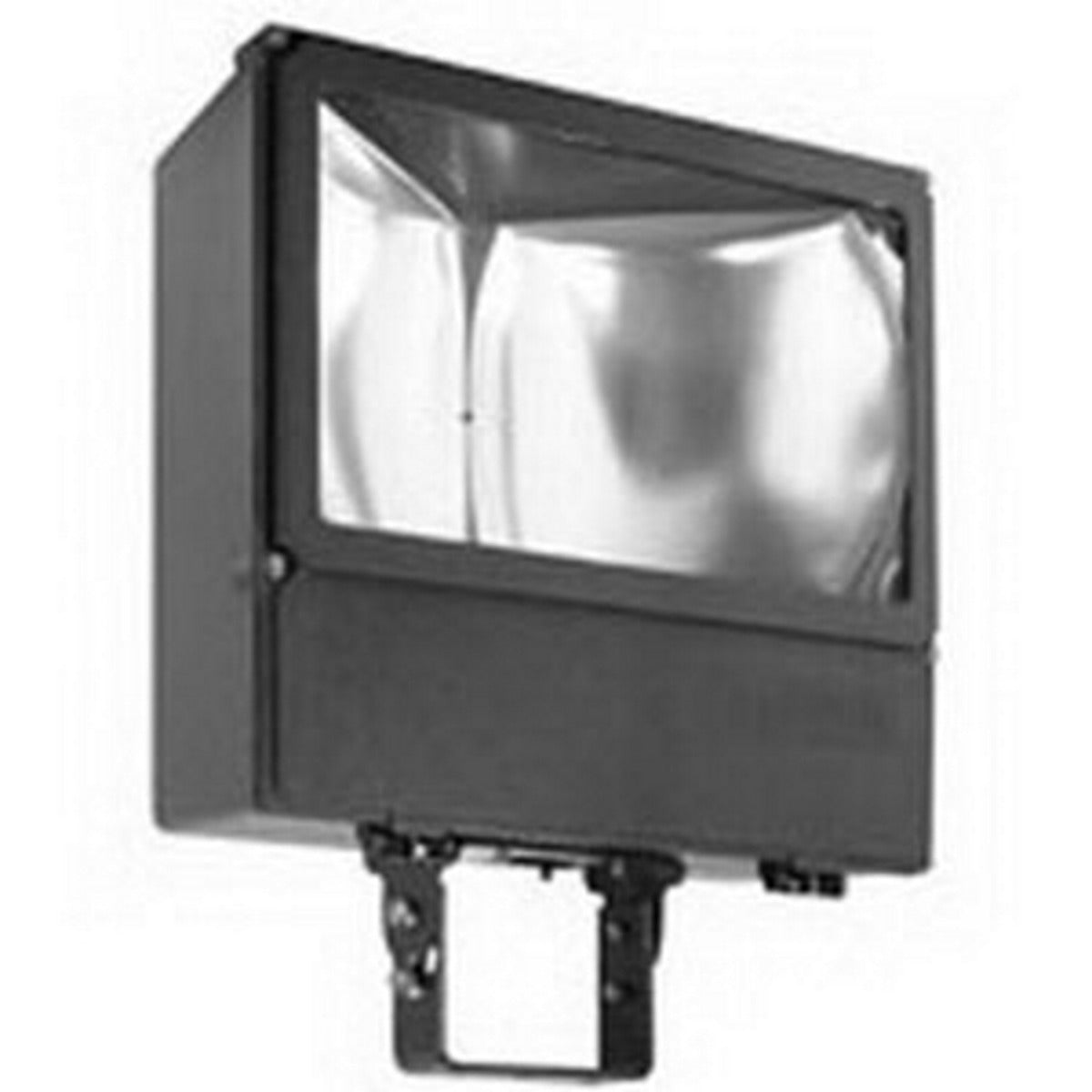

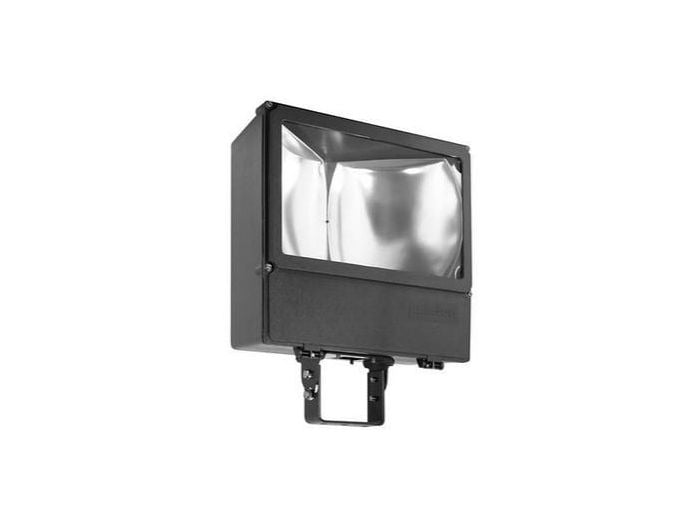

Appleton G-AM671L-48I/2 is an integrally ballasted Areamaster floodlight rated for a 250 WTT mogul high pressure sodium lamp and 480 V supply. The fixture uses a constant wattage autotransformer ballast, Alzak finished aluminum reflector, and a thermal-shock-resistant glass lens in a copperfree aluminum housing with IP66 enclosure. It is listed for marine and Class I Division 2 hazardous locations and is yoke mounted for outdoor area lighting.

  • Integrated C.W.A. ballast for 250 W HPS operation; fixture wattage 295 WTT; 0.4 A starting, 0.65 A operating at 480 V
  • Copperfree aluminum housing with architectural bronze polyester finish, Alzak aluminum reflector, glass lens, silicone rubber gasket and stainless steel hardware
  • IP66 enclosure rating; NEC Class I Division 2 Groups A-D and UL listings for marine and hazardous locations

Product Highlights

Integrally ballasted 250 W HPS floodlight, IP66, yoke mount, hazardous location rated

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: G-AM671L-48I/2
  • Country of Origin: Mexico
Technical Specifications
Brand
Appleton
Manufacturer Part Number
G-AM671L-48I/2
Series
Areamaster 250/400
Product Type
Integrally Ballasted Floodlight
Lamp Type
250 WTT Mogul High Pressure Sodium (HPS)
Lamp Power
250 W
Fixture Wattage
295 WTT
Voltage Rating
480 V
Ballast Type
Constant Wattage Autotransformer (C.W.A)
Ballast Quantity
1
Number of Lamps
1
Mounting Type
Yoke mount
Housing Material
Copperfree aluminum
Housing Finish
Architectural bronze polyester
Lens Material
Glass
Reflector
Alzak finished aluminum reflector
Enclosure Rating
IP66
Standards/Approvals
NEC Class I Division 2 Groups A, B, C, D; UL listed E10794, 1598, 1598A, 844; CSA where noted
Amperage Rating
0.4 A starting; 0.65 A operating at 480 V
Frequency Rating
60 Hz
Hub Size
1/2 in NPT
Projected Area (EPA)
1.9 sq ft
Length
17.07 in
Width
7.37 in
Ambient Temperature Rating
65 C
Supply Wire Temperature Rating
105 C
Country of Origin
Mexico
UPC
781381475471
GTIN
00781381475471
Weight (Gross)
33.35 lb
