Appleton FSS175 3/4 Type FSS Thread Unilet

Product Description

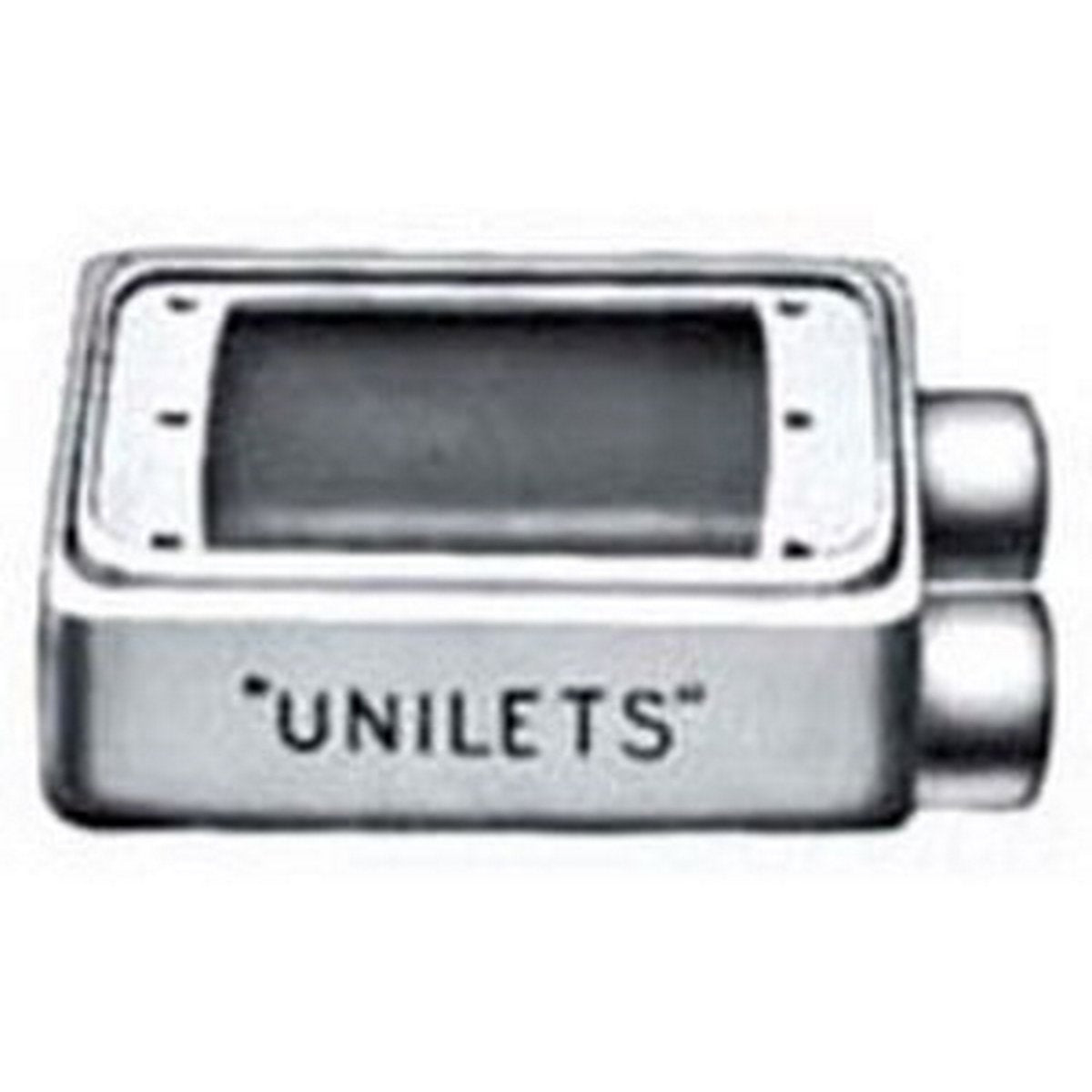

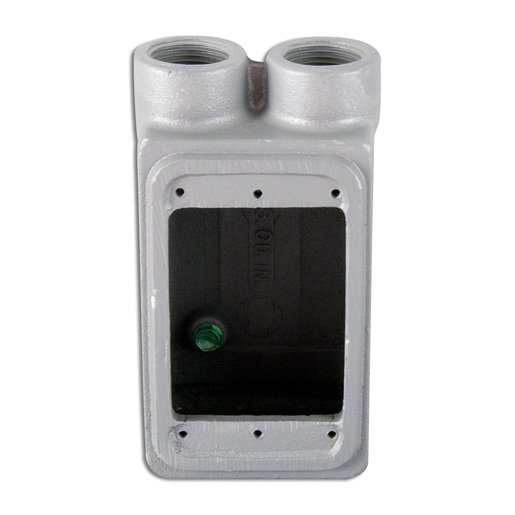

The APPLETON FSS175 is a UNILETS FSS shallow depth 1-gang cast device box. Constructed from malleable iron, it features (2) 3/4 IN hubs for cable entry and a 25 CU-IN cubic capacity. It is suitable for use with threaded metal conduit and IMC.

• Corrosion-resistant, ideal for indoor and outdoor installations
• Weatherproof, raintight, and dust-tight when used with cast gasketed covers
• Malleable iron provides high tensile strength and ductility for greater resistance to impact and shock

Product Highlights

This device box accommodates wiring devices such as switches and receptacles, serves as a pull box, and permits access to conductors for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSS175
• Country of Origin: MX

Technical Specifications

• Catalog Number: FSS175
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit And IMC
• Cable Entry: (2) 3/4 IN Hub
• Cubic Capacity: 25 CU IN
• Knockouts: No
• Material: Malleable Iron
• Special Features: Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• RoHS Indicator: Contact Manufacturer
• UPC: 781381352758
• GTIN: 00781381352758
• Item Type: FSS Shallow Depth 1-Gang Cast Device Box
• Length: 5.5000 Inch
• Width: 5.4000 Inch
• Height: 3.4000 Inch
• Size: 3/4 in
• Enclosure Type: NEMA FB-1
• Finish: Tri-Coated
• Hub Size: 3/4 in
• Hub Style: Tapered Threaded
• Number of Gangs: 1
