Appleton FSCT175 3/4 Threaded Unilet

Product Description

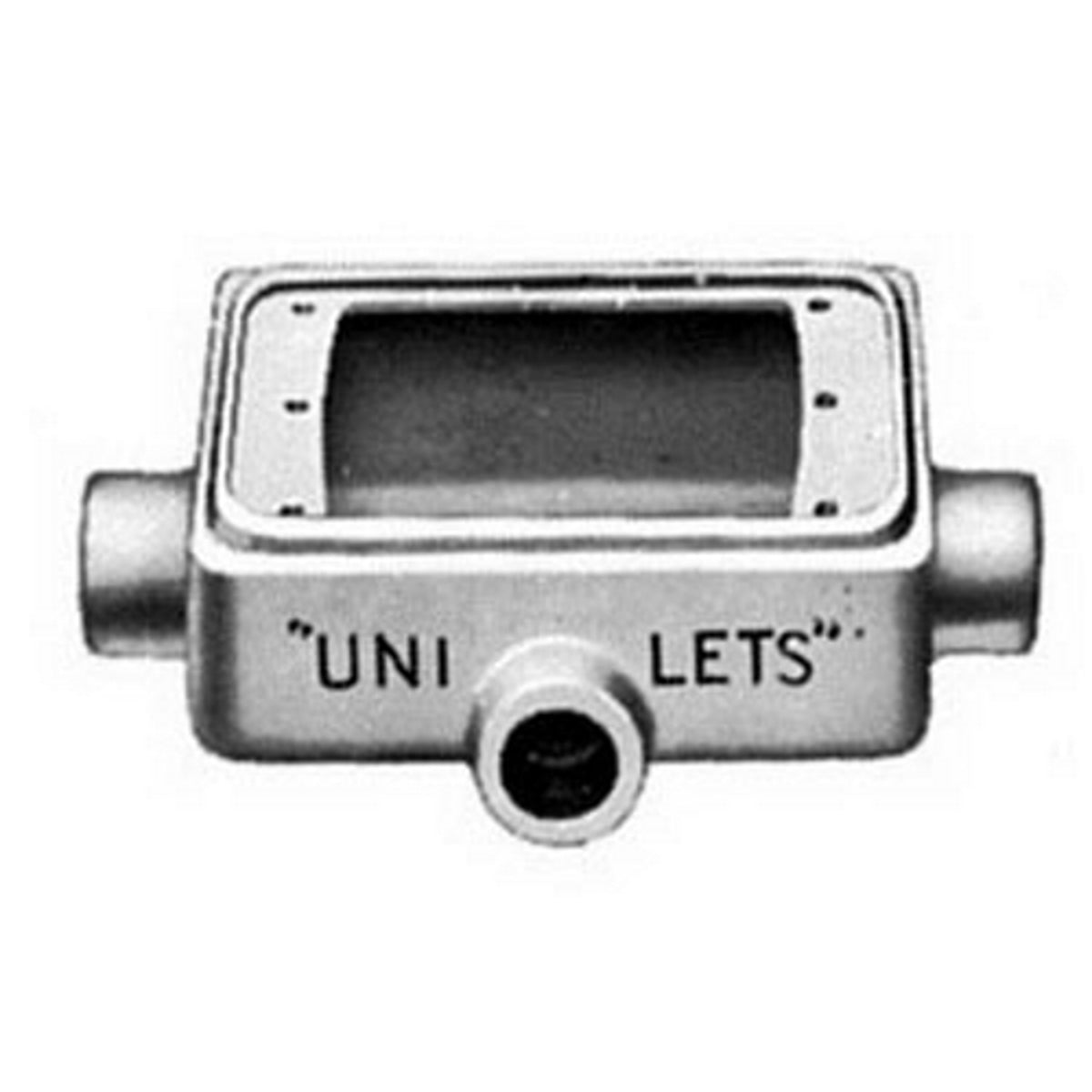

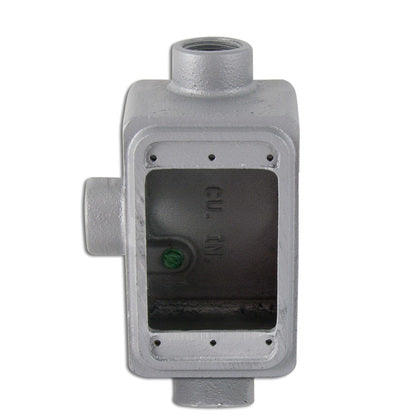

The APPLETON FSCT175 is a UNILETS FSCT shallow depth 1-gang cast device box. Constructed from malleable iron, it features (3) 3/4 IN hub cable entries and a 25 CU-IN cubic capacity. It is ideal for use with threaded metal conduit and IMC.

• Corrosion-resistant
• Covers have captive stainless steel screws to speed installation and prevent loss of screws
• High tensile strength and ductility

Product Highlights

The APPLETON FSCT175 device box is UL listed and suitable for both indoor and outdoor installations. It is weatherproof, raintight, and dust-tight when used with cast gasketed covers.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSCT175
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: FSCT175
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit And IMC
• Cable Entry: (3) 3/4 IN Hub
• Cubic Capacity: 25 CU IN
• Knockouts: No
• Material: Malleable Iron
• Special Features: Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• RoHS Indicator: Contact Manufacturer
• UPC: 781381345958
• GTIN: 00781381345958
• Item Type: FSCT Shallow Depth 1-Gang Cast Device Box
• Length: 6.5000 Inch
• Width: 4.7000 Inch
• Height: 3.1000 Inch
• Weight: 2.120 Pounds
• Size: 3/4
• Gangs: 1
• Hub Diameter: 3/4 in
• Number of Hubs: 3
• Hub Size: 3/4 in
• Hub Style: Tapered Threaded
• Knockout Size: 3/4 in
• Number of Gangs: 1
• Number of Knockouts: 3
• Number of Outlets: 3
• Shape: Shallow
• Type: Heavy Duty
• Standard & Approvals: UL 514A, E2527, CSA C22.2 No 18.1, 001472, NEMA FB-1, RoHS Compliant
• Enclosure Type: NEMA FB-1
• Finish: Triple Coat
• Capacity: 25 cu-in
• Series: FSCT
• Mounting Style: Screw, Cable
• Resistance Properties: Weatherproof, Corrosion Resistant
• Item Height: 4 in
• Depth: 2 in
