Appleton FSCC150 Threaded Unilet 1/2 in

Product Description

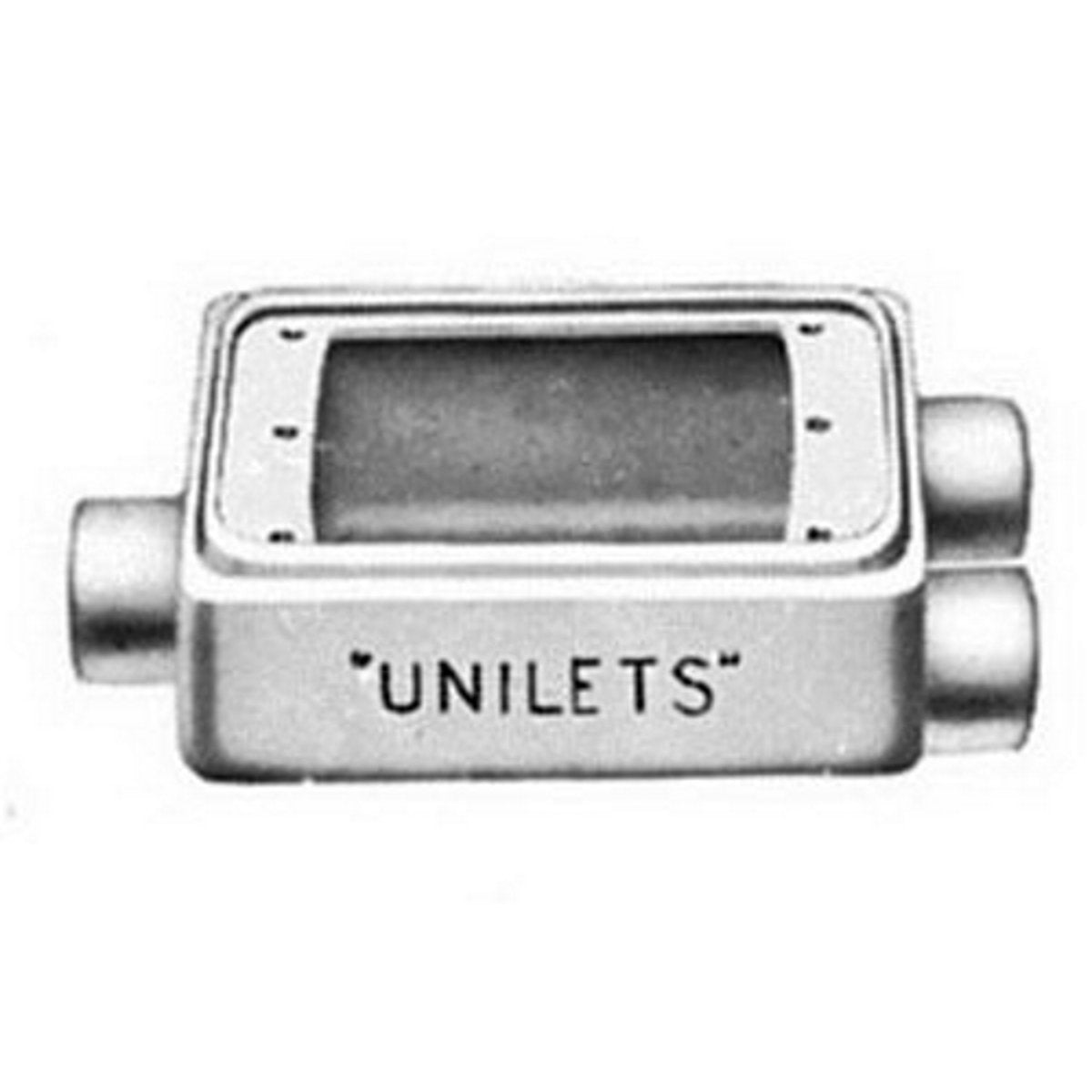

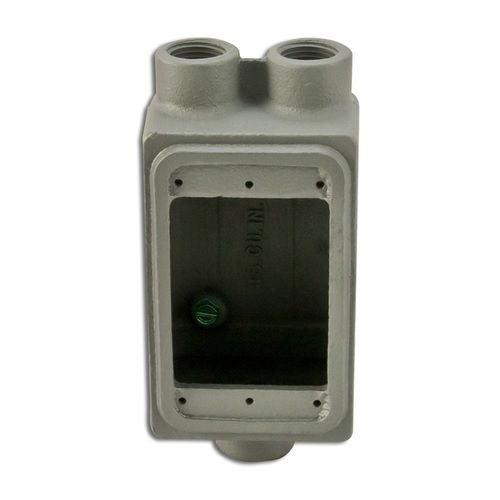

The APPLETON FSCC150 is a UNILETS FSCC shallow depth 1-gang cast device box. Constructed from malleable iron, it features (3) 1/2 IN hub cable entries and a 25 CU-IN cubic capacity. Designed for use with threaded metal conduit and IMC, it's suitable for both indoor and outdoor installations.

• Corrosion-resistant
• Covers have captive stainless steel screws to speed installation, prevents loss of screws
• With high tensile strength and ductility

Product Highlights

Malleable iron box with 1/2 IN hubs, ideal for industrial, commercial, or residential applications requiring a robust and versatile wiring solution.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSCC150
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: FSCC150
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit And IMC
• Cable Entry: (3) 1/2 IN Hub
• Cubic Capacity: 25 CU IN
• Knockouts: No
• Material: Malleable Iron
• Special Features: Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• RoHS Indicator: Contact Manufacturer
• UPC: 781381345507
• GTIN: 00781381345507
• Item Type: FSCC Shallow Depth 1-Gang Cast Device Box
• Size: 1/2
• Hub Size: 1/2 in
• Hub Style: Tapered Threaded
• Number of Gangs: 1
• Number of Outlets: 3
• Shape: Shallow
• Type: Type FSCC Heavy Duty
• Enclosure Type: NEMA FB-1
• Finish: Triple Coated
• Number of Hubs: 3
• Hub Diameter: 1/2 in
• Box Depth: 2.00"
• Applications: For Use With Threaded Metal Conduit And IMC
• Manufacture: APPLETON
• Mfr Catalog Number: FSCC150
• UNSPSC: 39121315
• Product Category: Cast Device Box
• Commodity Code: 2513
