Appleton FSC150A FSC Device Box 1-Gang

Product Description

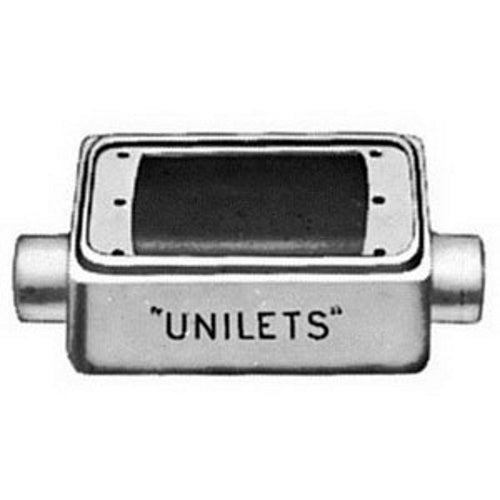

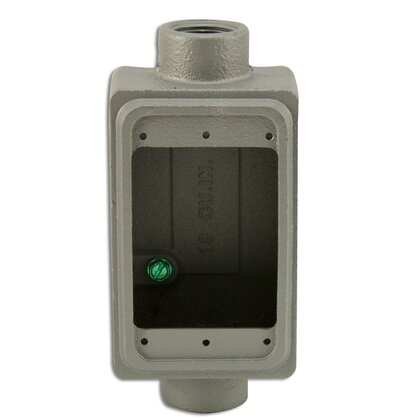

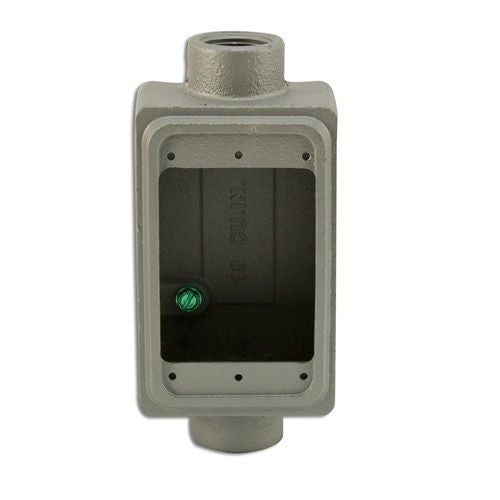

The Appleton FSC150A is a 1-Gang aluminum FSC box. This heavy-duty cast hub device box accommodates standard wiring devices such as switches and receptacles. It serves as a pull box for conductors, provides access for splicing and maintenance, and allows connections for branch conduit runs.

• For Use with Threaded Rigid Metal Conduit
• Includes Internal Ground Screw
• Corrosion-resistant Ideal for indoor and outdoor installations

Product Highlights

The Appleton FSC150A is ideal for indoor and outdoor installations and is weatherproof, rain tight and dust-tight when used with cast gasketed covers.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSC150A
• Country of Origin: United States

Technical Specifications

• Gangs: 1
• Material: Aluminum
• Number of Hubs: 2
• Hub Size: 1/2 Inch
• Box Depth: 2 Inch
• Number of Knockouts: 2
• Number of Outlets: 2
• Cable Entry: 0.50 in
• Capacity: 25 cu-in
• Enclosure Type: NEMA FB-1
• Finish: Epoxy Powder Coated
• Series: FSC
• Shape: Shallow
• Type: Heavy Duty
• Application: For use with threaded rigid/IMC conduit
• Standard & Approvals: UL 514A, E2527, CSA C22.2 No 18.1, 001472, NEMA FB-1, RoHS Compliant
• Brand: Appleton
• MPN: FSC150A
• UPC: 781381343503
• Country of Origin: United States
• Sub Brand: UNILETS
• Box Shape: Rectangular
