Appleton FSC-1-75L unilets device box 3/4 in

Product Description

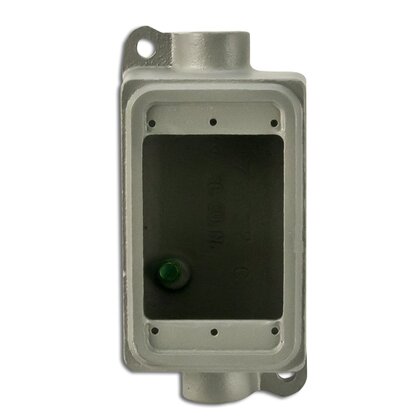

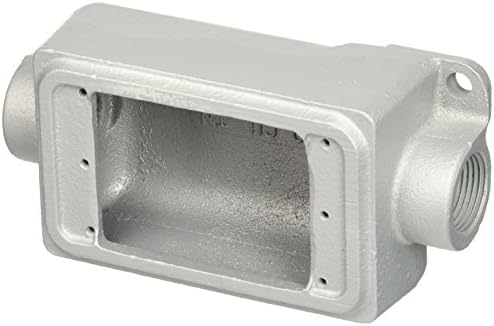

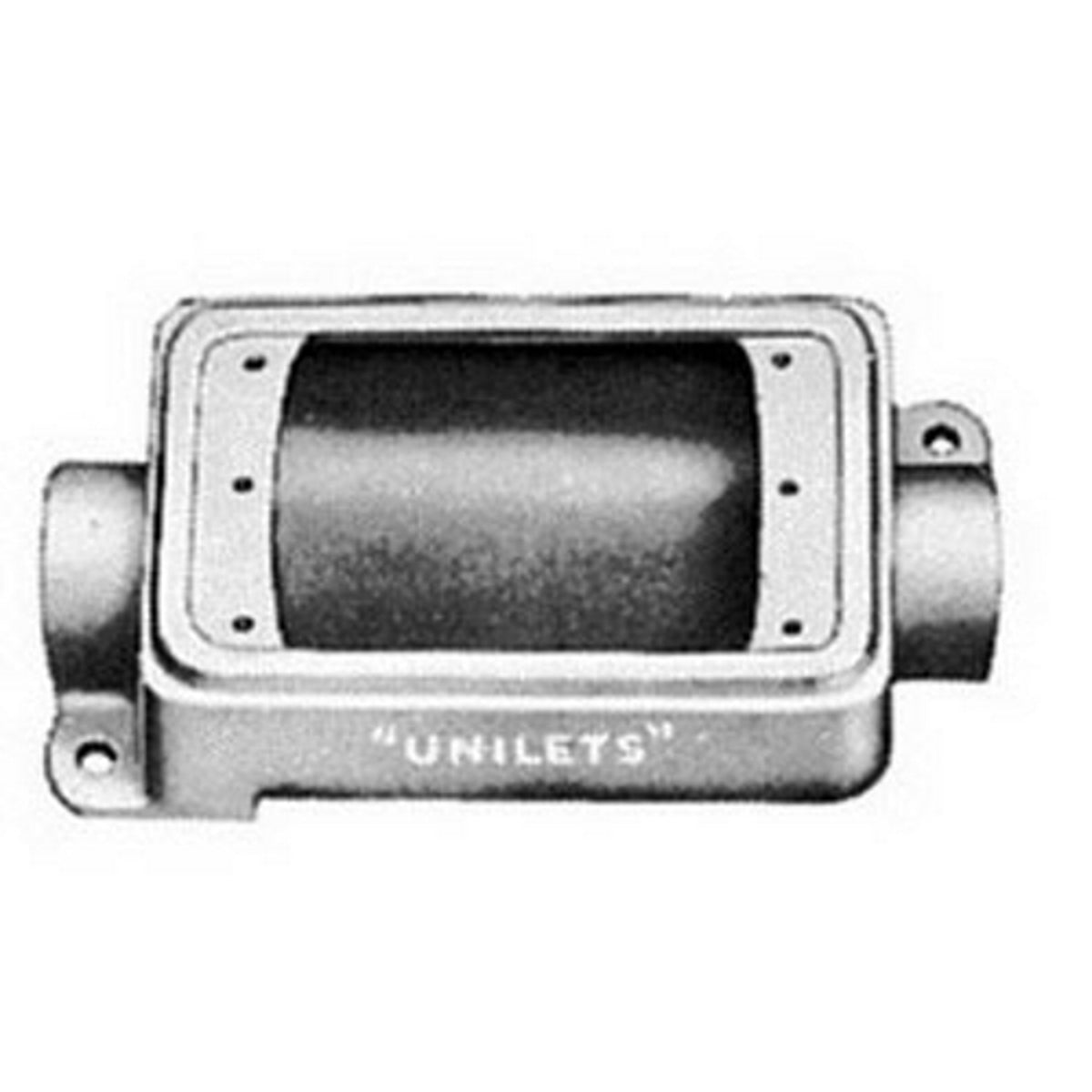

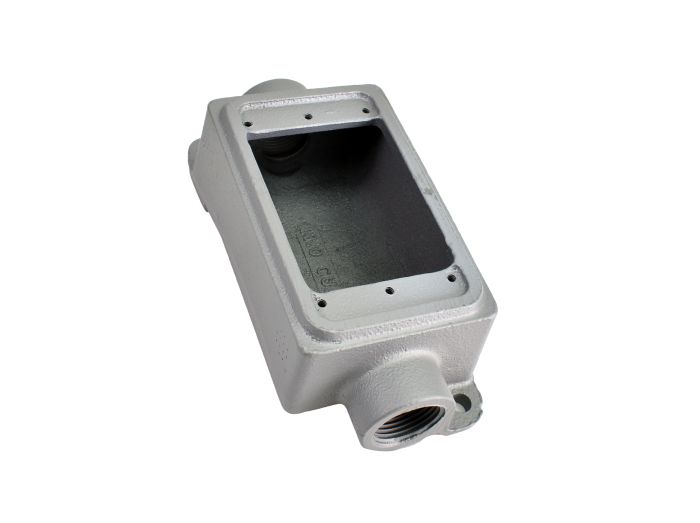

The Appleton FSC-1-75L UNILETS device box is a heavy-duty shallow box with 2 outlets and 1 gang. Constructed from malleable iron with a tri-coated finish, it offers corrosion resistance for indoor and outdoor use. The box features a 3/4 inch hub size and a capacity of 25 cu-in. Designed for use with threaded metal conduit and IMC.

• Corrosion-resistant, ideal for indoor and outdoor installations
• Made of malleable iron for high tensile strength and resistance to impact
• Features accurately tapped, tapered threads for tight, rigid joints and ground continuity

Product Highlights

This Appleton UNILETS device box provides reliable service in demanding environments, accommodating wiring devices and serving as a pull box for conductors.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSC-1-75L
• Country of Origin: MX

Technical Specifications

• Finish: Tri-Coated
• Capacity: 25 cu-in
• Hub Size: 3/4 in
• Material: Malleable Iron
• Hub Style: Tapered Threaded
• Mounting Type: Lug
• Enclosure Type: NEMA FB-1
• Number of Gangs: 1
• Number of Outlets: 2
• Number of Knockouts: 2
• Brand: Appleton
• Sub Brand: UNILETS
• Application: Accommodate Wiring Devices, Serve as Pull Box for Conductors, Indoor/Outdoor
• Mounting: (2) 5/16 Diameter Lugs
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• Item Type: FSC Shallow Depth 1-Gang Cast Device Box
• Number of Hubs: 2
• Hub Location: (1) Each End
• Shape: Shallow
• Configuration Type: FSC
• Mounting Hardware: (2) Lugs
• Approval: UL 514A
• Gangs: 1
• Hub Diameter: 3/4 in
• Style: Compact
• Specification Met: Csa, Ul
• Manufacturer: Appleton
• Product Series: FS
• Manufacturer Part Number: FSC-1-75L
• Family Series: Appleton Electrical Boxes, FS Series
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Grounding: Yes
• Composition: Malleable Iron
• Protection Rating: Indoor, Outdoor (w/ Optional Gasketed Cover)
• Hazardous Location: No
• Approvals: CSA, UL
