Appleton FS-1-50L FS Cast Device Box 1/2 IN With Mounting Lug

Product Description

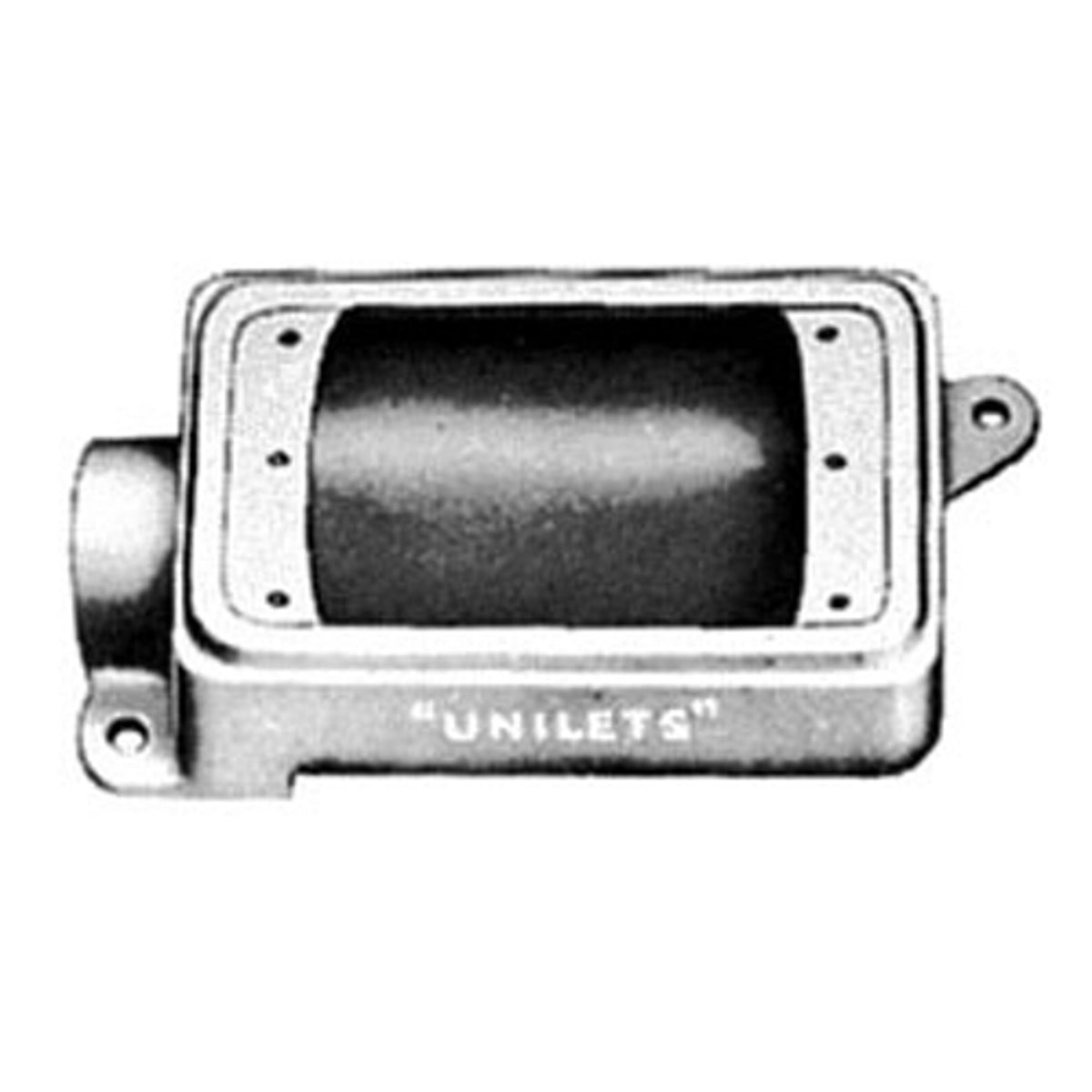

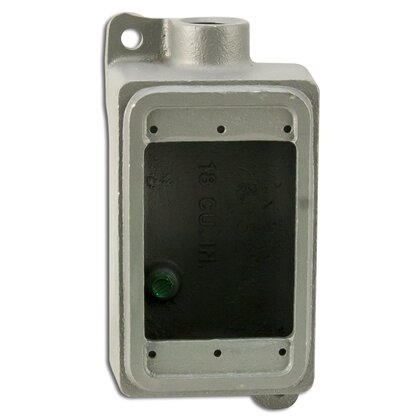

The APPLETON FS-1-50L is a UNILETS FS shallow depth 1-gang cast device box constructed from malleable iron. It features a 1/2 IN hub cable entry and is designed for use with threaded metal conduit and IMC. The box has a cubic capacity of 25 CU-IN and includes mounting lugs.

• Corrosion-resistant
• Weatherproof, raintight and dust-tight
• High tensile strength and ductility provides greater resistance to impact and shock

Product Highlights

This device box accommodates wiring devices, serves as a pull box for conductors, and permits access for maintenance. UL Listed.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FS-1-50L
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: FS-1-50L
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit And IMC
• Cable Entry: 1/2 IN Hub
• Cubic Capacity: 25 CU IN
• Knockouts: No
• Material: Malleable Iron
• Mounting: (2) 5/16 Diameter Lugs
• Special Features: Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• RoHS Indicator: Contact Manufacturer
• Item Type: FS Shallow Depth 1-Gang Cast Device Box
• Length: 6.5000 Inch
• Width: 4.7000 Inch
• Height: 3.1000 Inch
• Size: 1/2 IN
• Number of Gangs: 1
• Number of Hubs: 1
• Hub Location: End
• Hub Size: 1/2 Inch
• Shape: Shallow
• Configuration Type: FS
• Mounting Hardware: (2) Lugs
• Approval: UL 514A
• Number of Outlets: 1
• Type: FS Shallow Depth 1-Gang Cast Device Box
• Finish: Zinc Electroplated Dichromate Aluminum Polymer Enamel
• Construction: Ridge Top
• Enclosure Type: NEMA FB-1
