Appleton FDC-1-50L 1-Gang FD Cast Device Box 1/2 inch

Product Description

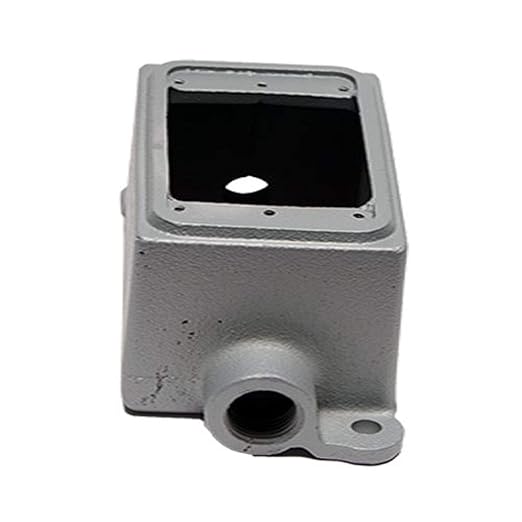

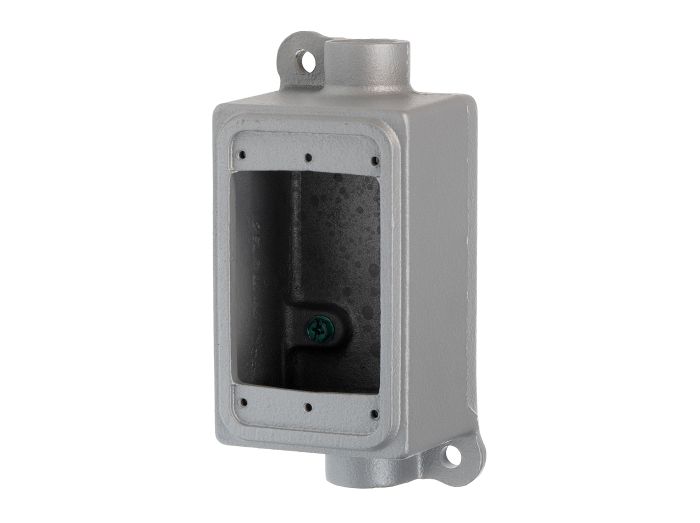

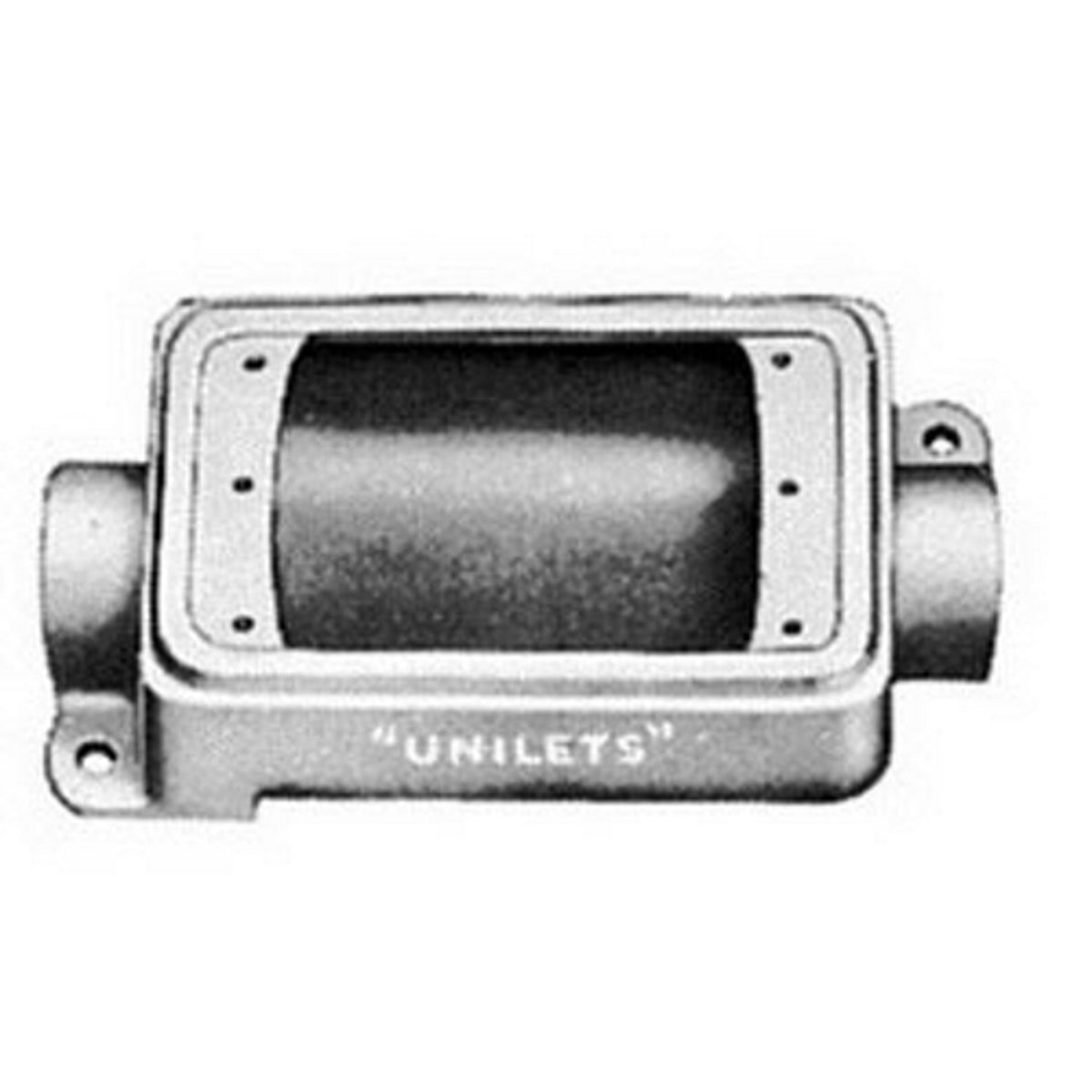

The APPLETON FDC-1-50L is a UNILETS FDC deep depth 1-gang cast device box. Constructed from malleable iron, it features two 1/2 IN hubs for cable entry and a 25 CU-IN cubic capacity. Designed for use with threaded metal conduit and IMC, it provides excellent service in rough environments.

• Corrosion-resistant
• Weatherproof, raintight and dust-tight
• With high tensile strength and ductility provides greater resistance to impact and shock

Product Highlights

This device box accommodates wiring devices and provides access for splicing, tapping, or pulling conductors.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FDC-1-50L
• Country of Origin: MX

Technical Specifications

• Catalog Number: FDC-1-50L
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit And IMC
• Cable Entry: (2) 1/2 IN Hub
• Cubic Capacity: 25 CU IN
• Knockouts: No
• Material: Malleable Iron
• Mounting: (2) 5/16 Diameter Lugs
• Special Features: Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• UPC: 781381322430
• GTIN: 00781381322430
• Item Type: FDC Deep Depth 1-Gang Cast Device Box
• Length: 6.5000
• Length UOM: Inch
• Width: 4.7000
• Width UOM: Inch
• Height: 3.1000
• Height UOM: Inch
• Size: 1/2
• Gangs: 1
• Hub Diameter: 1/2 in
• Number of Hubs: 2
• Part Number: FDC150L
• Included Components: FDC150L
• Item Type Name: APP FDC-1-50L; 1G MALL FDC BOXW/LUG
• Unit Count: 1.0 Count
• Cable_Entry: (2) 1/2 IN Hub
• Cubic_Capacity: 25
• Finish: Tri-Coated
• Hub_Size: 1/2
• Number_Of_Outlets: 2
• Type: Type FDC Deep Heavy Duty
• Product Series: FD
• Family Series: Appleton Electrical Boxes, FD Series
• Description: UNILETS FDC Deep Depth 1-Gang Cast Device Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: 2 1/2 IN Hub, Mounting: 2 5/16 Diameter Lugs, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 6.06 IN, Width: 2.81 IN, Depth: 2.69
• Style: FDC
• Number of Gangs: 1
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Grounding: Yes
• Composition: Malleable Iron
• Protection Rating: Indoor, Outdoor (w/ Optional Gasketed Cover)
• Hazardous Location: No
• Approvals: CSA, UL
• Net Weight: 2.605 lbs
• Gross Weight: 2.73 lbs
