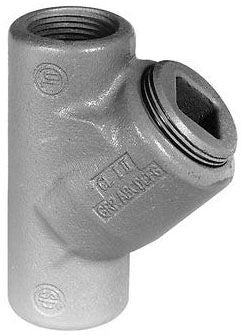

Appleton EYSF75 3/4 Malleable Conduit Seal

Product Description

Appleton EYSF75 3/4 Malleable Conduit Seal is designed for effective sealing of vertical conduits. This conduit seal provides reliable protection in hazardous locations. Constructed from zinc electroplated chromate epoxy powder coated malleable iron, it meets UL and CSA standards, ensuring safety and durability.

• Suitable for Class I Div 1 and 2 Group A, C, D, Class II Div 1 and 2 Group E, F, G
• Connecting type: Female to female
• Trade size: Three quarters of an inch

Product Highlights

This conduit seal is used to prevent pressure piling within the conduit system, making it essential for installations in hazardous locations.

Product Information

Standard Information

• Brand: Appleton Electric
• Manufacturer: Appleton Electric

Technical Specifications

• MPN: EYSF75
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Enclosure Rating: Class I Div 1 and 2 Group A, C, D, Class II Div 1 and 2 Group E, F, G, Class III
• Trade Size: 3/4 Inch
• Turning Radius: 2.25 Inch
• Overall Dimensions: 3.63 Inch Length x 1.38 Inch Width
• Mounting Position: Vertical
• Approval: UL 1203, CSA C22.2
