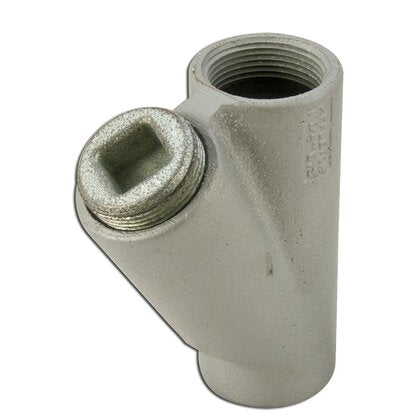

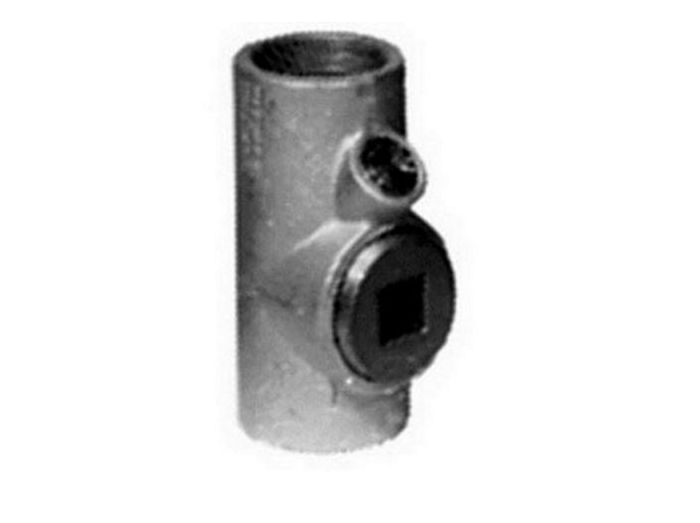

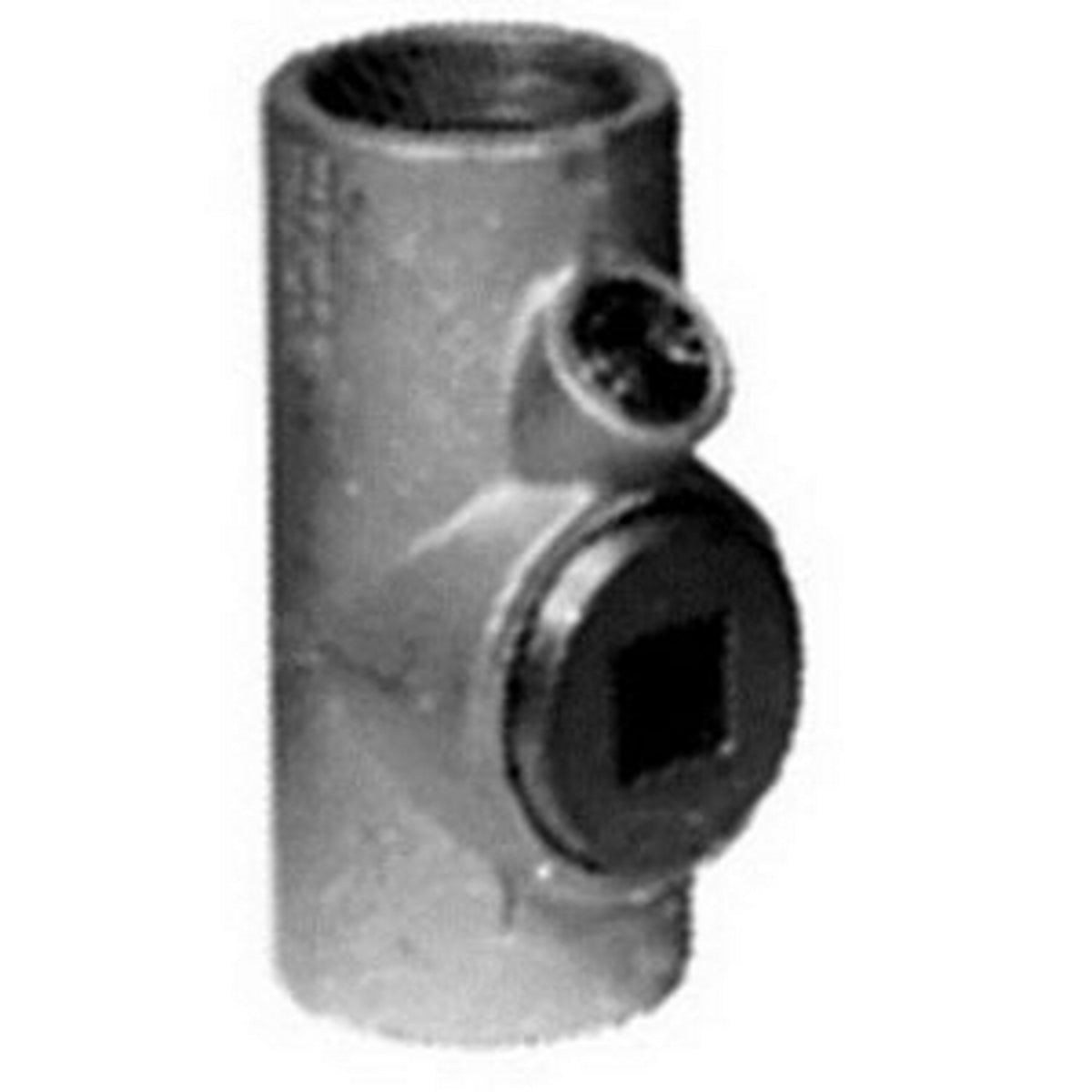

Appleton EYSF125 Unilet EYS Sealing Fitting 1-1/4 Inch

Product Description

The APPLETON EYSF125 Unilet EYS series 25 PCT fill vertical conduit sealing fitting is designed for use with threaded rigid metal conduit and IMC. It is made of malleable iron with a triple-coat finish. This fitting prevents the passage of gases, vapors, or flames from one portion of a conduit system to another.

• Explosion Proof
• Sealing Fitting
• Vertical Conduit
• For preventing passage of gases, vapors or flames

Product Highlights

This fitting is explosionproof, dust-ignitionproof, and raintight. It features a smooth, rounded integral bushing and accurately tapped, tapered threads for tight, rigid joints and ground continuity.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYSF125
• Country of Origin: Mexico

Technical Specifications

• Size: 1-1/4 IN
• Type: Dust-Ignitionproof Explosionproof Raintight
• Brand: Appleton
• Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
• Material: Iron
• Sub Brand: Unilet
• Trade Size: 1-1/4 "
• Applications: Rigid Metal Conduit and IMC
• TC Connection: Tapered FNPT
• Catalog Number: EYSF125
• Manufacturer: Appleton
• Country of Origin: United States
• Application: For Use With Threaded Rigid Metal Conduit And IMC
• Connection: Tapered FNPT
• Special Features: For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181
• Item Type: EYS Series 25 PCT Fill Vertical Conduit Sealing Fitting
• Length: 5.30 in
• Width: 5.00 in
• Height: 3.00 in
• Turning Radius: 2.94 Inch
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Diameter: 1 1/4 in
• Model: EYSF125
• MPN: EYSF125
• Series: EYS
• Standards: UL 1203UL File No. E10444CSA C22.2 No. 30CSA 065181RoHS Compliant
• UNSPSC: 39121311
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Product Series: EYS 25
• Family Series: Appleton Fittings, EYS 25 Series
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Female Hub
• Position: Vertical
• Composition: Metallic
• Protection Rating: Raintight
• Hazardous Location: Yes
