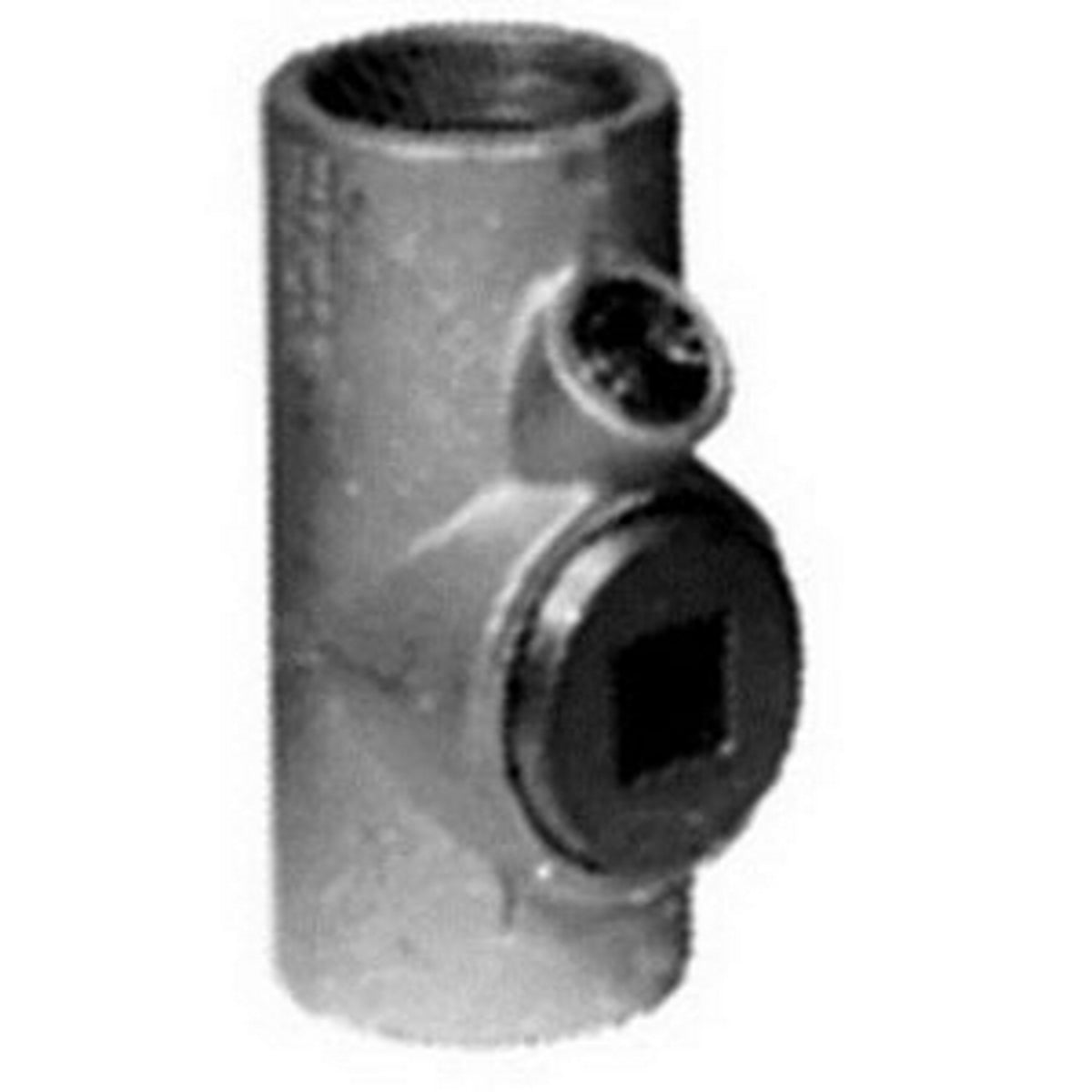

Appleton EYSF100-AL Sealing Fitting 1 Almag 35

Product Description

The APPLETON EYSF100-AL is a UNILETS EYS Series 25 PCT Fill Vertical Conduit Sealing Fitting. It is constructed from Almag 35 aluminum with an epoxy powder coat finish. This fitting is designed for use with threaded rigid metal conduit and IMC. Connection is Tapered FNPT.

• UNILETS EYS Series 25 PCT Fill
• Constructed from Almag 35 Aluminum with Epoxy Powder Coat Finish
• Tapered FNPT Connection

Product Highlights

This Appleton sealing fitting minimizes the passage of gases and vapors and prevents the passage of flames from one portion of a conduit system to another.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYSF100-AL
• Country of Origin: Mexico

Technical Specifications

• GTiN: 00781381619622
• Size: 1 IN
• Type: Dust-Ignitionproof Explosionproof Raintight
• Brand: Appleton
• Finish: Powder Coated
• Material: Aluminum
• Sub Brand: UNILETS
• Product UPC: 78138161962
• 12-Digit UPC: 781381619622
• Applications: For Use With Threaded Rigid Metal Conduit and IMC
• TC Connection: Tapered FNPT
• Catalog Number: EYSF100-AL
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Rigid Metal Conduit and IMC
• Connection: Tapered FNPT
• Special Features: For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181
• RoHS Indicator: Contact Manufacturer
• UPC: 781381619622
• Item Type: EYS Series 25 PCT Fill Vertical Conduit Sealing Fitting
• Turning Radius: 2.38 Inch
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Trade Size: 1 "
• Composition: Metallic
• Protection Rating: Raintight
• Hazardous Location: Yes
• Series: EYS
• Standards: UL 1203 File No. E10444CSA C22.2 No. 30CSA 065181RoHS Compliant
• UNSPSC: 39121311
• UPC 11: 78138161962
• UPC 12: 781381619622
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
