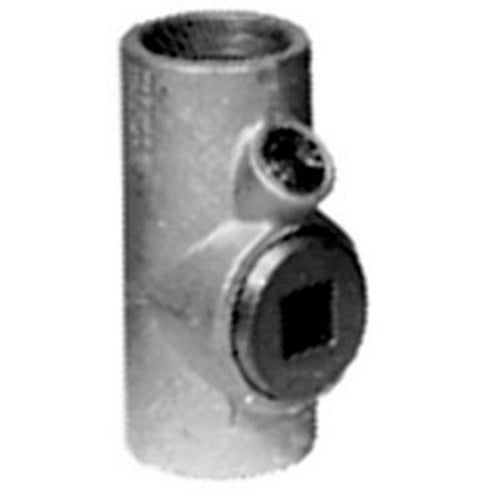

Appleton EYSEF125 1 1/4 Conduit Seal

Product Description

Appleton EYSEF125 is a conduit seal designed for use with threaded rigid metal conduit and IMC. This fitting is crafted from malleable iron, suitable for both vertical and horizontal applications. Its purpose is to prevent the passage of gases, vapors, or flames within conduit systems. The connection type is female threaded, ensuring secure fittings.

• Size: 1-1/4 inches
• Suitable for Class I Division 1 and 2 locations
• Triple-coat finish for enhanced durability

Product Highlights

Effective for hazardous locations, this sealing fitting maintains integrity under multiple conditions.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: EYSEF125
• Material: Malleable Iron
• Connection Type: Female Threaded
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Height: 3.1 inches
• Width: 4.7 inches
• Length: 6.5 inches
• Weight: 3.91 pounds
• Turning Radius: 2.06 inches
• Standards: UL 886, Class I, Division 1 and 2, Groups B, C, D; Class II, Groups E, F, G
• Application: Sealing vertical conduit
