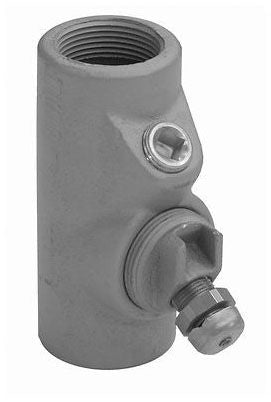

Appleton EYSEF100AL 1 Sealing Unilet

Product Description

The Appleton EYSEF100AL is a sealing fitting designed for threaded rigid metal conduit and intermediate metal conduit (IMC). It is constructed from Almag 35 aluminum and features a powder-coated finish for durability. This fitting is suitable for both horizontal and vertical mounting. The turning radius is one and three-fourth inches, making it a versatile choice for various installation needs.

• Material: Almag 35 aluminum
• Connection Type: Female threaded
• UL and CSA certifications

Product Highlights

This conduit sealing fitting offers reliable protection against the passage of gases, vapors, or flames through conduit systems.

Product Information

Standard Information

• Brand: Appleton
• Model: EYSEF100AL

Technical Specifications

• Size: 1 inch
• Turning Radius: 1.75 inches
• Length: 5.06 inches
• Width: 2.19 inches
• Standard: UL 886 (1203), CSA C22.2 No. 30
• Application: For use with threaded rigid metal conduit and IMC
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• UPC: 78138180983
