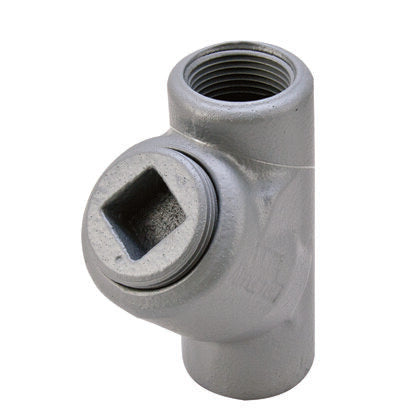

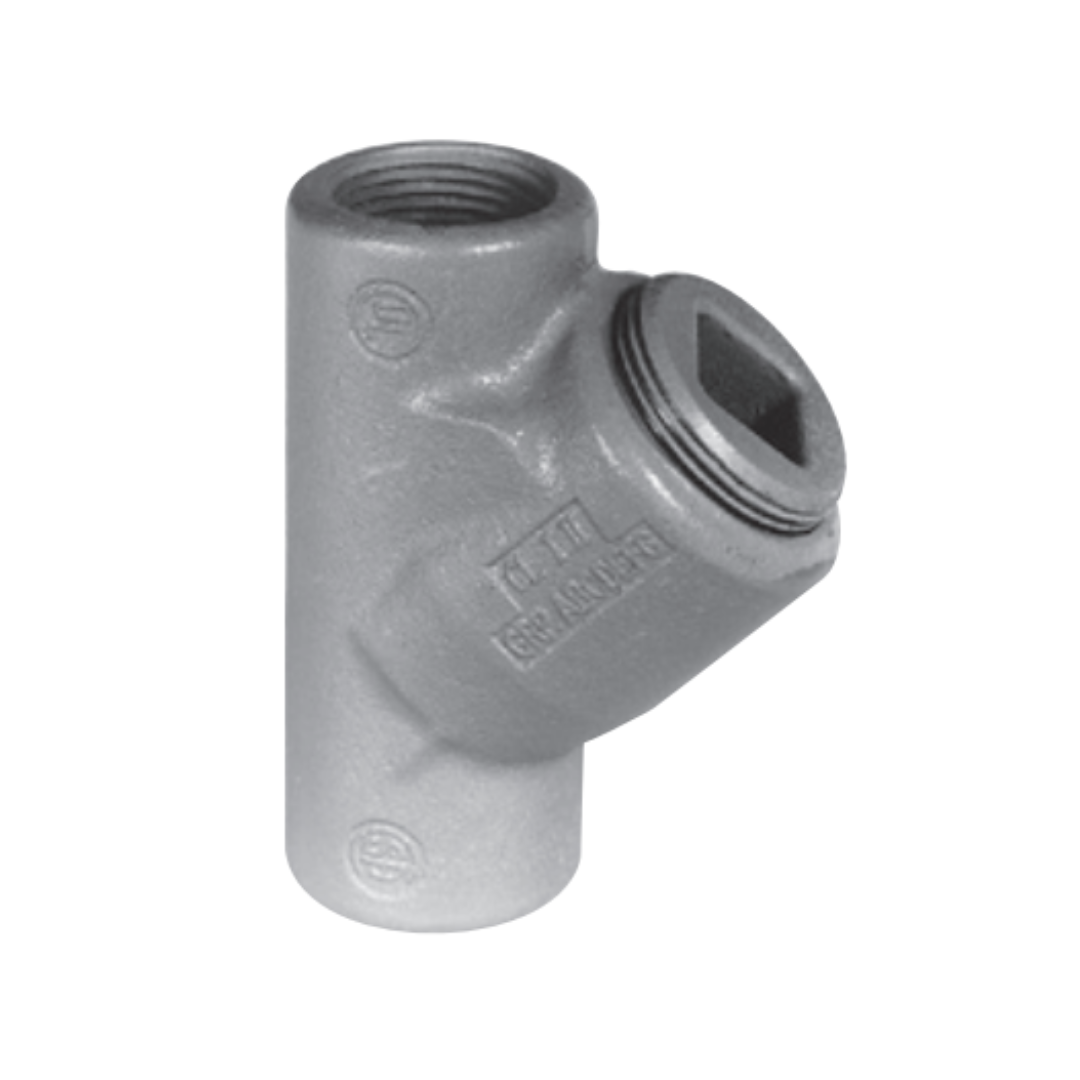

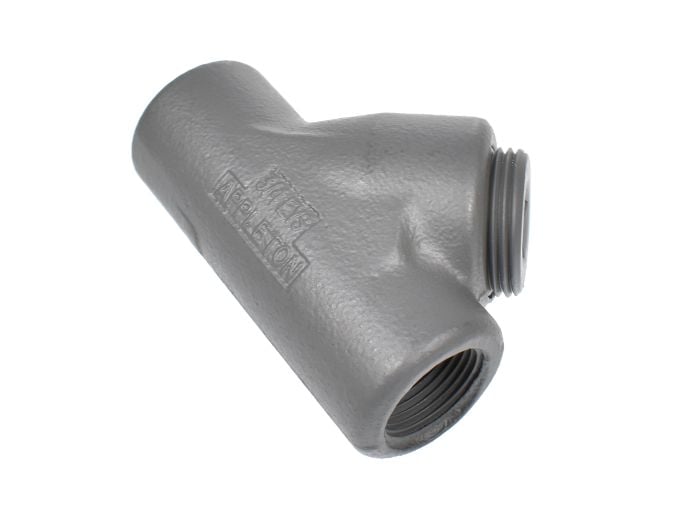

Appleton EYS2 Eys Sealing Unilet 3/4 IN

Product Description

The APPLETON EYS2 is a 3/4" Eys Sealing Unilet. This vertical sealing fitting prevents the passage of gases, vapors, or flames from one portion of a conduit system to another. It also restricts large amounts of ignitable gases or vapors from accumulating to confine explosive pressure. Suitable for use in Class I and II locations.

• Vertical Sealing Fitting
• 25 PCT Fill
• Explosionproof, dust-ignitionproof, and raintight

Product Highlights

The APPLETON EYS2 is ideal for use with threaded rigid metal conduit and IMC. It is explosionproof, dust-ignitionproof, and raintight.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYS2
• Country of Origin: United States

Technical Specifications

• Size: 3/4 IN
• Type: EYS Series 25 PCT Fill Vertical Sealing Fitting
• Brand: Appleton
• Color: Gray
• Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
• Material: Grayloy-Iron
• Sub Brand: UNILETS
• Trade Size: 3/4 Inch
• Product UPC: 78138170469
• 12-Digit UPC: 781381704694
• Applications: For Use With Threaded Rigid Metal Conduit and IMC
• TC Connection: Tapered FNPT
• Manufacturer Part Number: EYS2
• Manufacturer: Appleton
• Product Series: EYS 25
• Family Series: Appleton Fittings, EYS 25 Series
• Description: UNILETS EYS Series 25 PCT Fill Vertical Sealing Fitting, Size: 3/4 IN, Material: Grayloy-Iron, Finish: Triple-Coat Zinc Electroplate, Chromate And Epoxy Powder Coat, Color: Gray, Connection: Tapered FNPT, Turning Radius: 1.91 IN, Length: 3
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Female Hub
• Position: Vertical
• Turning Radius: 1.91 "
• Composition: Metallic
• Protection Rating: Raintight
• Hazardous Location: Yes
• Approvals: UL
• Net Weight: 1.33 lbs
• Gross Weight: 1.33 lbs
• Diameter: 3/4 in
• UPC: 78138170469
• Brand Electric: Appleton Electric
• Angle: 25
• Accessory Type: Conduit Fittings
• Country of Origin: United States
