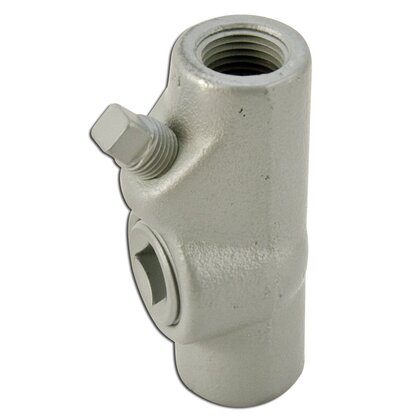

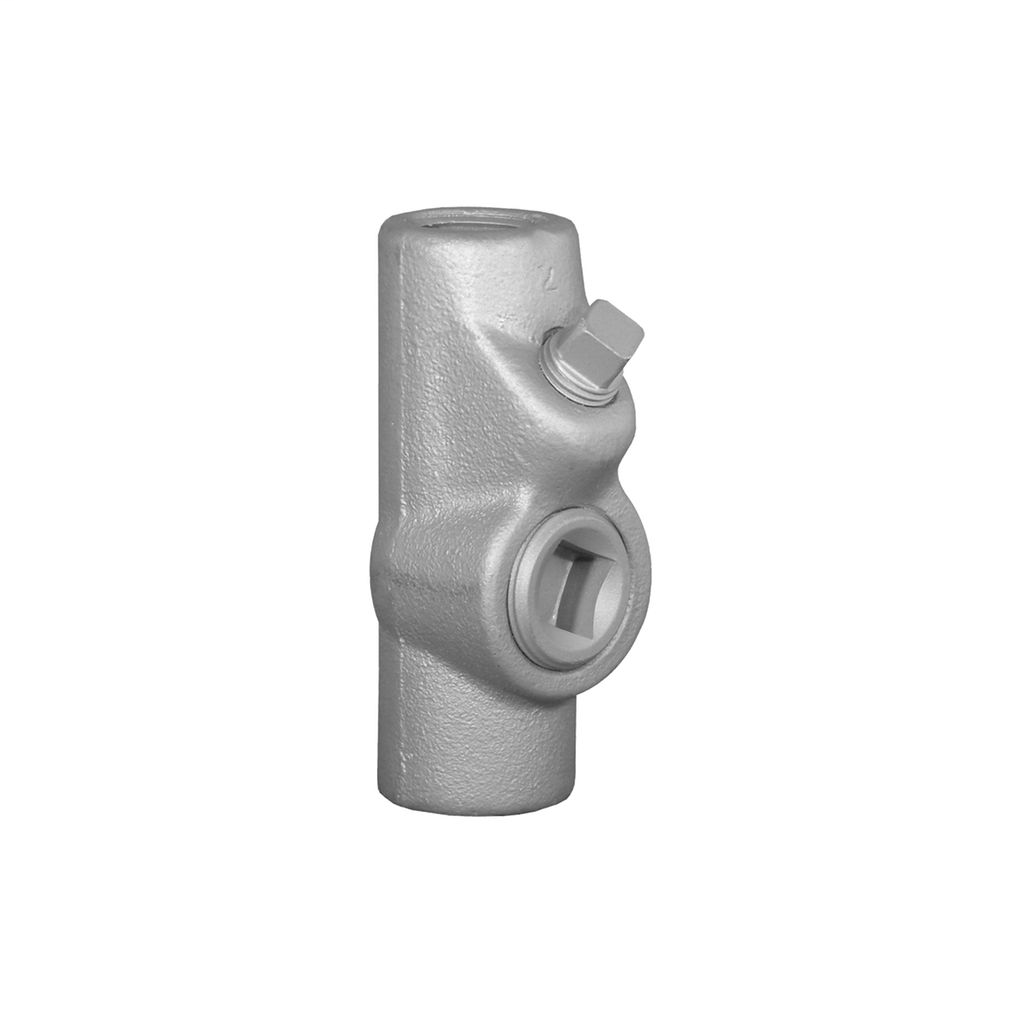

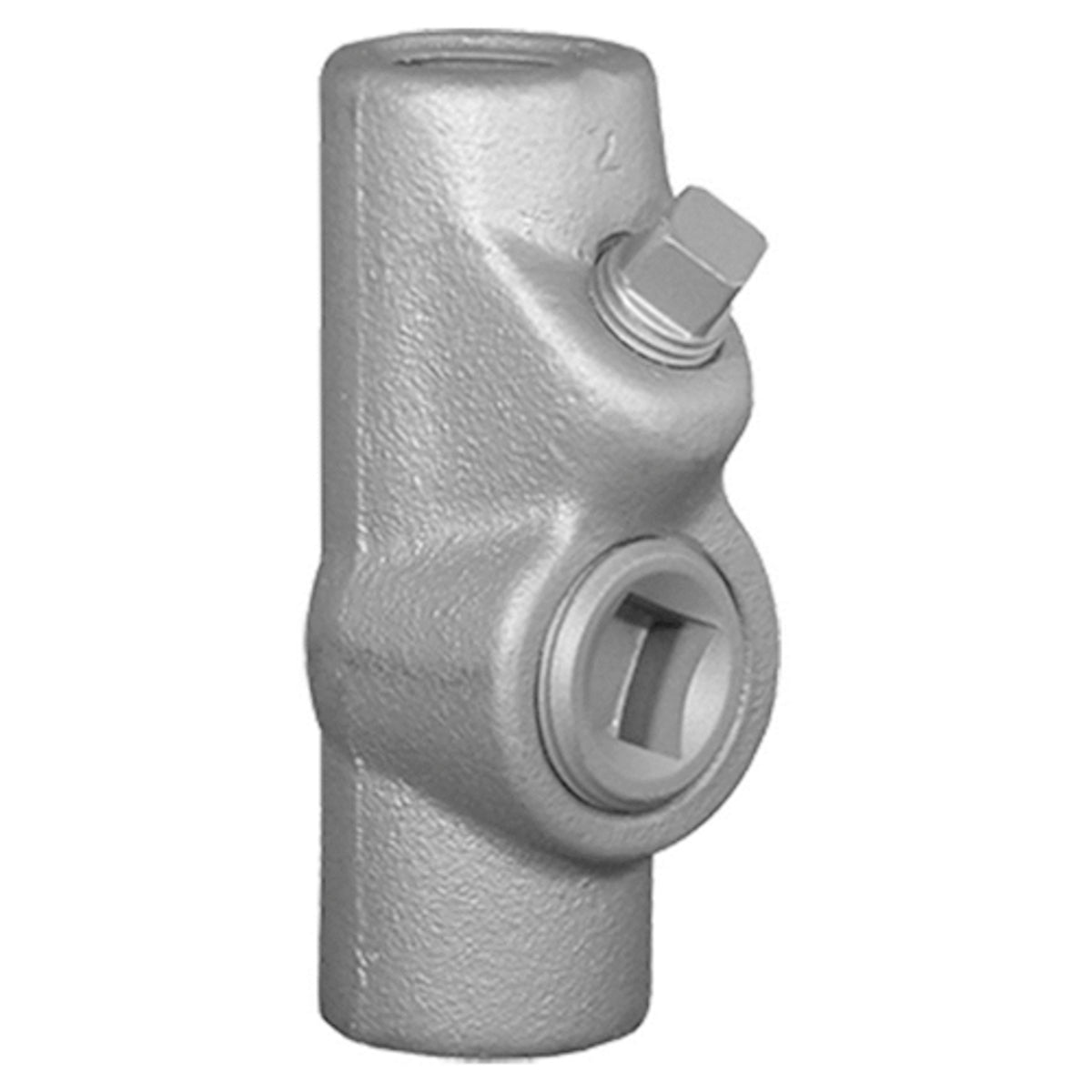

Appleton EYS11 APN 1/2 in

Product Description

The Appleton EYS11 sealing fitting minimizes the passage of gases and vapors and prevents the passage of flames from one portion of a conduit system to another. These fittings prevent pressure piling within the conduit system and contain any explosion that occurs. The EYS series provides a close turning radius and can be used for sealing vertical or horizontal conduit runs.

• Smooth, rounded integral bushing in each hub to protect conductor insulation
• Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
• Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub

Product Highlights

The Appleton sealing fitting is suitable for use with IMC/Threaded Rigid Metallic Conduit. Features a large opening for damming and filling.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYS11
• Country of Origin: MX

Technical Specifications

• Size: 1/2 in
• Color: Gray
• Finish: Triple Coated
• Series: EYS
• Material: Grayloy-Iron
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Type: 25% Fill Vertical and Horizontal, Explosionproof, Female
• Brand: Appleton
• Sub Brand: Unilet
• Used With: Threaded Rigid Metal Conduit and IMC
• Trade Size: 1/2 Inch
• Applications: For Use With Threaded Rigid Metal Conduit and IMC
• TC Connection: Tapered FNPT
• Catalog Number: EYS11
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Rigid Metal Conduit and IMC
• Connection: Tapered FNPT
• Special Features: For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181
• RoHS Indicator: Contact Manufacturer
• Item Type: EYS Series 25 PCT Fill Vertical And Horizontal Sealing Fitting
• Turning Radius: 1.06 Inch
• Connection Type: Female, Female
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• MPN: EYS-11
• Accessory Type: Conduit Fittings
• Diameter: 1/2 in
