Appleton EYM100 Explosion Proof Sealing Fitting 1 Inch

Product Description

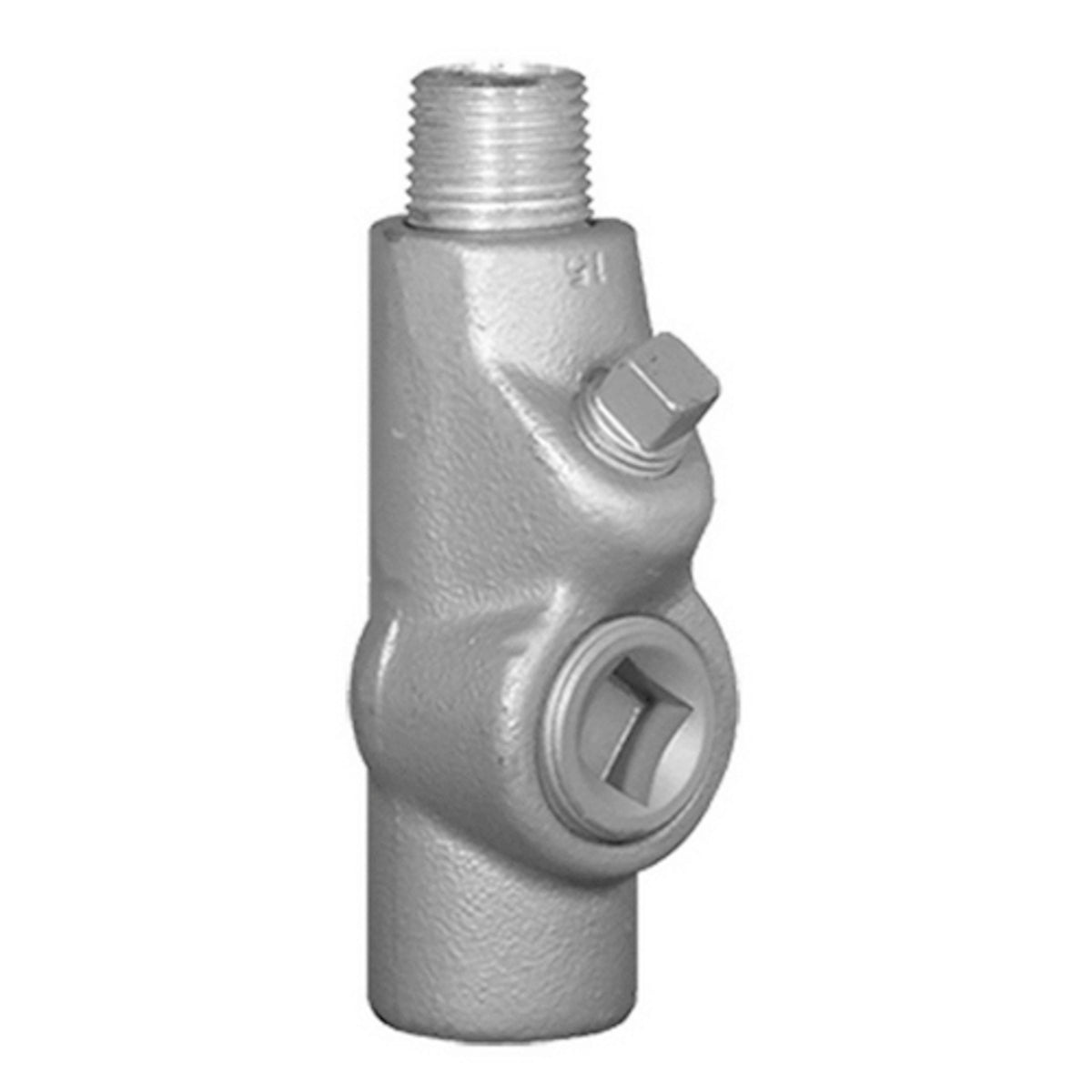

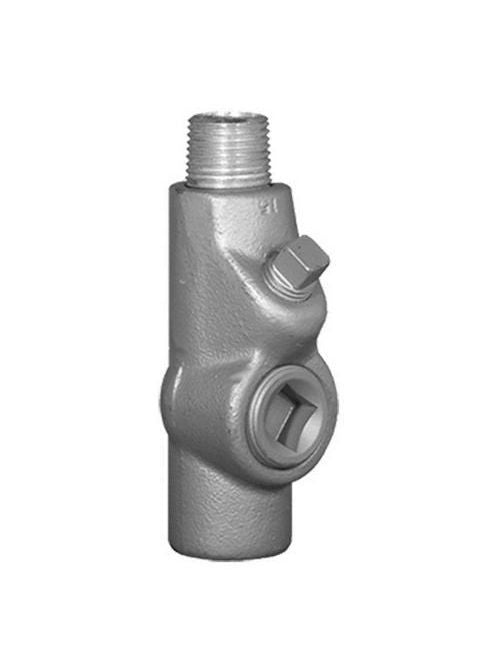

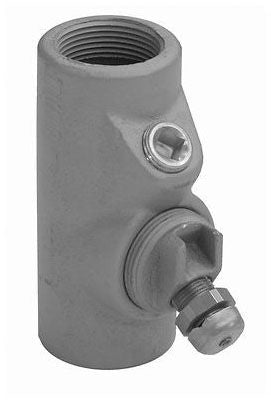

The Appleton EYM100 is a 1 inch explosion proof sealing fitting designed for vertical and horizontal applications. It is made of malleable iron and features a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder coat. The fitting is meant for use with threaded rigid metal conduit and IMC, providing a secure connection to prevent the passage of gases or vapors.

• Explosion proof and raintight design.
• Female threaded connection style.
• Meets UL and CSA safety standards.

Product Highlights

This sealing fitting is ideal for Class I and II hazardous locations, effectively preventing the passage of gases, vapors, or flames.

Product Information

Standard Information

• Catalog Number: EYM100
• Brand: Appleton Electric

Technical Specifications

• Material: Malleable Iron
• Size: 1 Inch
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Connection Type: Female Threaded x Male Threaded
• Applications: For use with threaded rigid metal conduit and IMC
• Country of Origin: Mexico
• Weight: 1.520 Pounds
• Height: 0.7000 Inch
• Width: 6.5000 Inch
• Length: 10.0000 Inch
