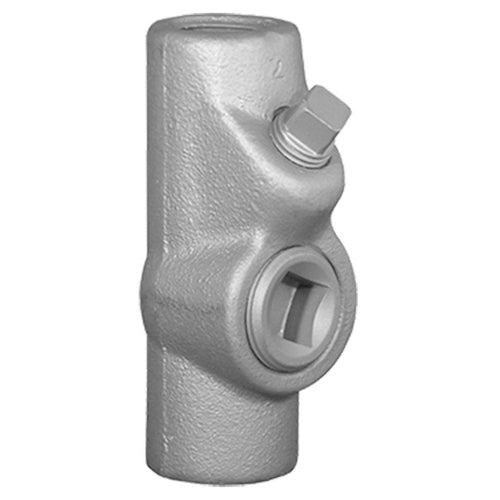

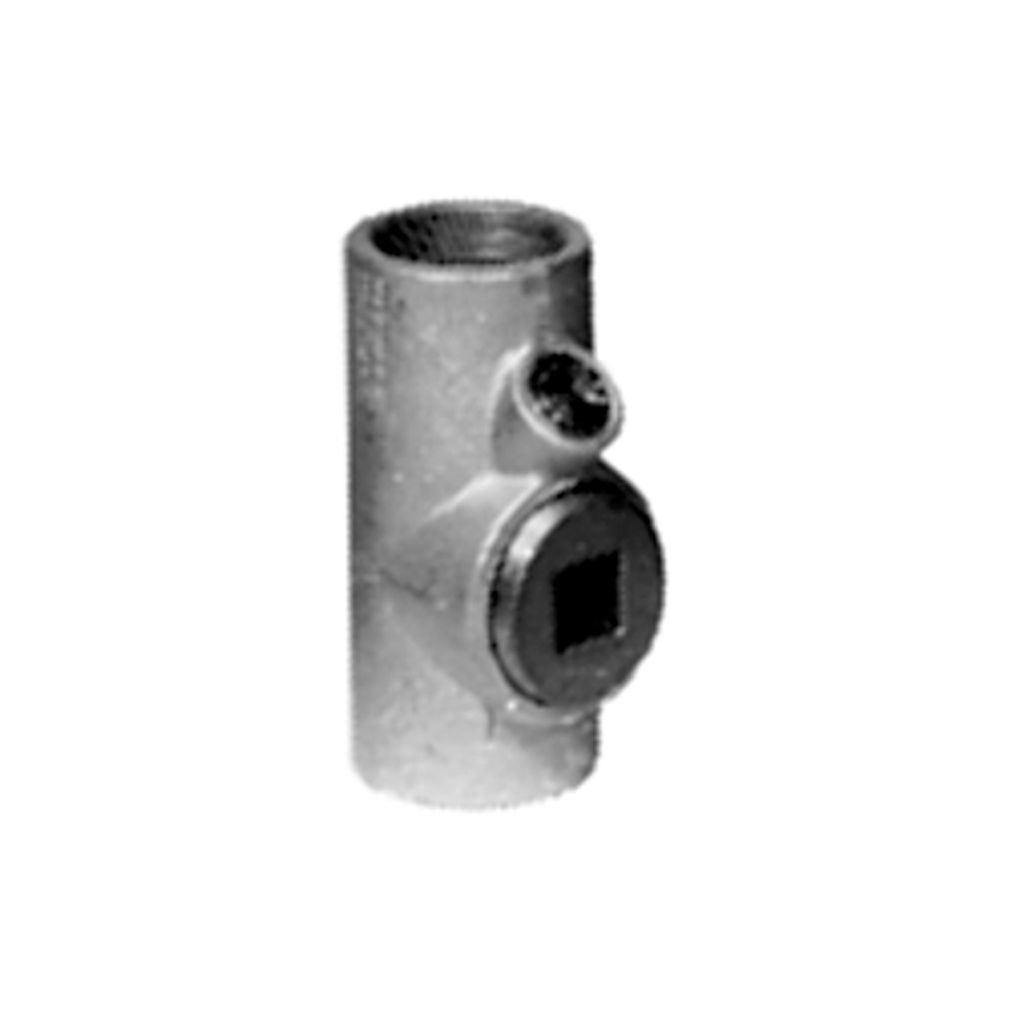

Appleton EYF100 1 Explosion Proof Sealing Fitting

Product Description

Appleton EYF100 is a one-inch explosion-proof sealing fitting designed for conduit systems. This product prevents the passage of gases, vapors, or flames and is essential for hazardous locations. It is built for both vertical and horizontal applications, ensuring safety in Class I and II environments.

• Explosion proof, dust-ignition proof, and raintight
• Prevents gas and vapor accumulation, confining explosion pressure
• Meets requirements for Class I and II locations

Product Highlights

This sealing fitting is designed for use with threaded rigid metal conduit and IMC. Its construction features a smooth, rounded integral bushing that protects wire insulation.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: EYF-100
• Trade Size: 1 Inch
• Material: Malleable Iron
• Finish: Triple-Coated (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Connection Type: Female Threaded
• Length: 4.25 Inches
• Width: 1.75 Inches
• Height: 1.38 Inches
• Weight: 1.33 Pounds
