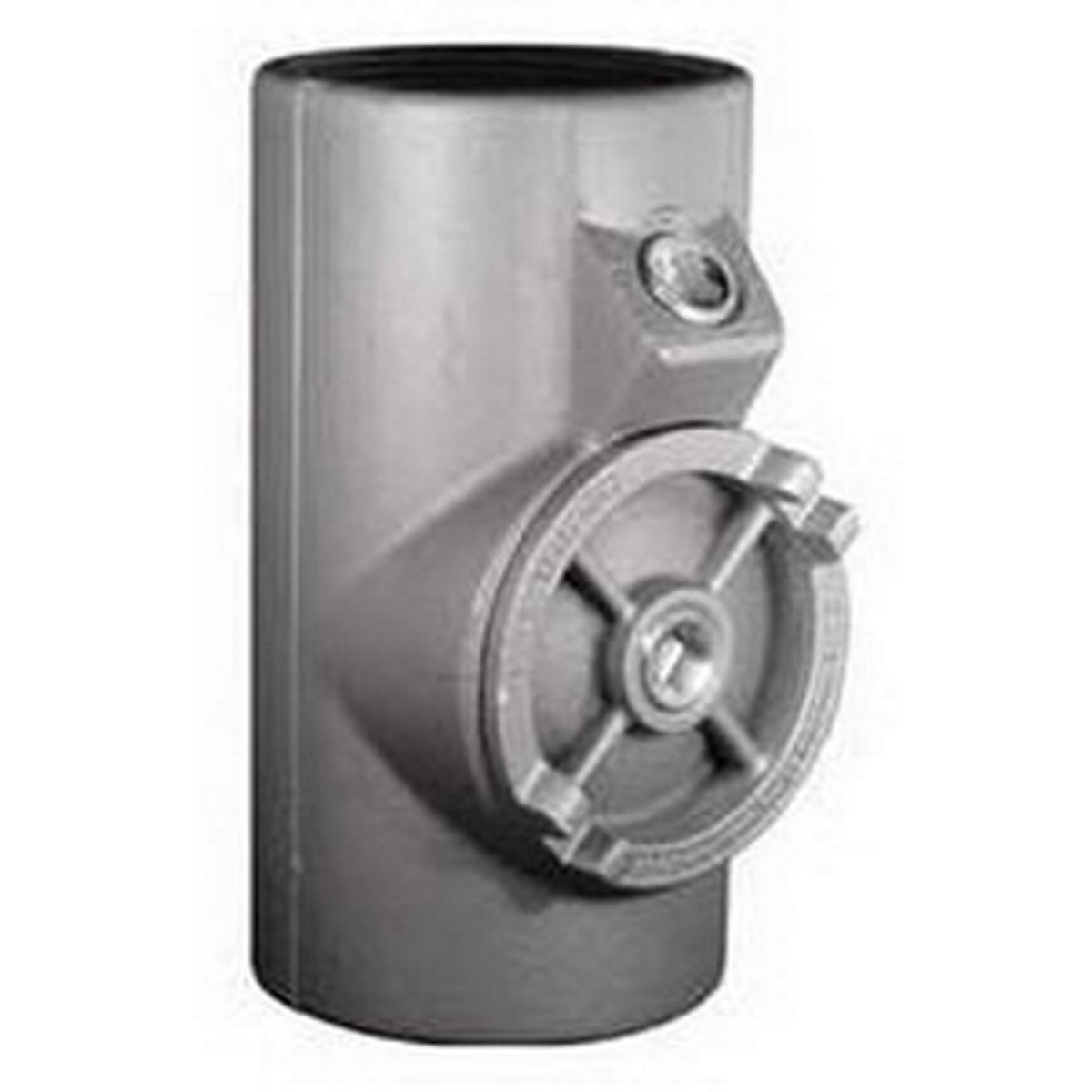

Appleton EYF-400 Vertical/Horizontal Drain Seal Fitting 4 inch

Product Description

The APPLETON EYF-400 is a UNILETS EY Series 25 PCT Fill vertical and horizontal conduit sealing fitting. Constructed from malleable iron with a triple-coat finish, this fitting is suitable for use with threaded rigid metal conduit and IMC. It prevents the passage of gases, vapors, or flames within a conduit system.

• Explosion proof, dust-ignition proof and raintight.
• Smooth, rounded integral bushing in each hub.
• Accurately tapped, tapered threads for tight joints and ground continuity.

Product Highlights

Designed for sealing vertical or horizontal conduit runs, the EYF-400 ensures safety and reliability in hazardous environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYF-400
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EYF-400
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Rigid Metal Conduit and IMC
• Connection: Female Threaded
• Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
• Material: Malleable Iron
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D; Class II, Groups E, F, G; and Class III
• RoHS Indicator: Contact Manufacturer
• UPC: 781381135320
• GTIN: 00781381135320
• Item Type: EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting
• Length: 5.6000 Inch
• Width: 5.6000 Inch
• Height: 10.8000 Inch
• Size: 4
• Turning Radius: 3.69 Inch
• Trade Size: 4 Inch
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
