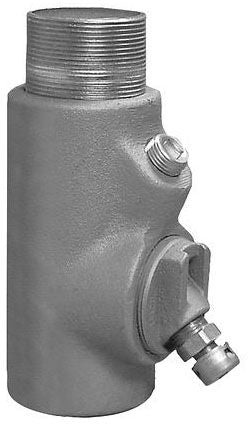

Appleton EYDM150 1-1/2 Malleable Drain Seal

Product Description

The Appleton EYDM150 is a 1-1/2 inch malleable drain seal designed to prevent gas and liquid ingress in conduit systems. This product is made from epoxy powder coated dichromate zinc electroplated malleable iron, ensuring durability and protection in harsh environments. It features male and female connections and is suitable for vertical mounting. The EYDM150 is UL approved for Class I Division 1 and 2, Group C, D, and Class II Division 1 and 2, Group E, F, G, making it appropriate for various applications in electrical installations.

• Material: Malleable Iron with Epoxy Coating
• Trade Size: 1-1/2 inches
• UL Listed and approved for hazardous locations

Product Highlights

This drain seal effectively prevents pressure piling within conduit systems and is essential where conduits leave classified areas. It includes a removable male nipple for easy installation and service.

Product Information

Standard Information

• Manufacturer: Appleton
• Model: EYDM150

Technical Specifications

• Material: Epoxy Powder Coated Dichromate Zinc Electroplated Malleable Iron
• Connection Type: Male, Female
• Trade Size: 1-1/2 Inch
• Approval: UL
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Mounting Position: Vertical
• Turning Radius: 2.06 Inch
